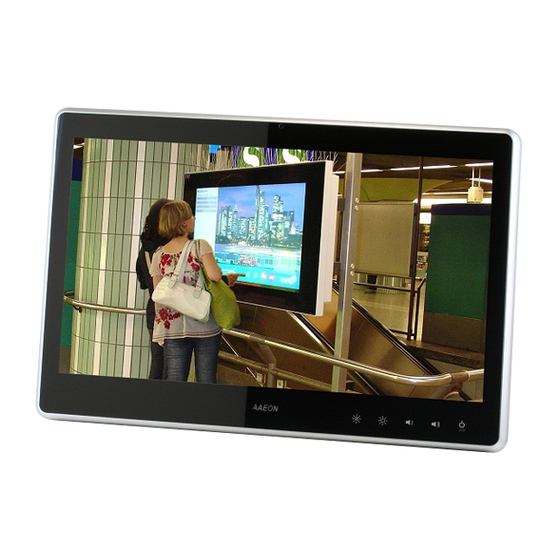

Fanless Multi-Touch Panel PC
st
ACP-5182 Manual 1
Ed
January 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP-5182 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon ACP-5182

Summary of Contents for Aaeon ACP-5182

  • Page 1 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 ACP-5182 ® 18.5” Intel Atom D510 Processor High Brightness Fanless Multi-Touch Panel PC ACP-5182 Manual 1 January 2011...

  • Page 2: Copyright Notice

    AAEON, assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Acknowledgments ® ® Intel , Atom are registered trademarks of Intel Corporation. ® ® Microsoft Windows is a registered trademark of Microsoft Corporation.

  • Page 4: Packing List

    A C P - 5 1 8 2 Packing List Before you begin installing your Medical Station, please make sure that the following items have been shipped: ACP-5182 Infotainment Multi-Touch Panel PC HDD screws Product DVD Contains User’s Manual (in PDF format), Drivers and...
  • Page 5 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3.
  • Page 6 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 14. If any of the following situations arises, get the equipment checked by service personnel: a.
  • Page 7 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Classification 1. Degree of production against electric shock: not classified 2. Degree of protection against the ingress of water: IPX0 3.
  • Page 8 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received...
  • Page 9 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 UL Module Description ACP-5182 AC modules are developed to suitable for the Classification Mark requirement...
  • Page 10 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Safety Symbol Description The following safety symbols are the further explanations for your reference. Medical equipment with respect to electric shock, fire and mechanical hazards only in accordance with UL 60601-1, and...
  • Page 11 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Panel PC/ Workstation 有毒有害物质或元素 部件名称 铅...

  • Page 12: Table Of Contents

    1.4 Dimension ..............1-7 Chapter 2 Hardware Installation 2.1 Safety Precautions ............ 2-2 2.2 A Quick Tour of the ACP-5182........2-3 2.3 2.5” Hard Disk Drive (HDD) Installation ....2-5 Chapter 3 AMI BIOS Setup 3.1 System Test and Initialization ........3-2 3.2 AMI BIOS Setup.
  • Page 13 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 B.3 IRQ Mapping Chart ..........B-5 B.4 DMA Channel Assignments........B-5 Appendix C Miscellanea C.1 General Cleaning Tips .......... C-2 C.2 Cleaning Tools............

  • Page 14: Chapter 1 General Information

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter General Information Chapter 1 General Information...

  • Page 15: Introduction

    The ACP-5182 includes all the features of a powerful computer into a slim and attractive chassis. The ACP-5182 has 300 nits TFT display with 1366 x 768 resolution. This model equips two-point Multi-Touch Window design and is easy to clean.

  • Page 16: Features

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 1.2 Features 18.5” WXGA (1366 x 768) Fanless TFT LCD Display Superior Onboard Intel® Dual Core Atom™ D510 Processor Easy-To-Clean: Multi-Touch Window Design (Two-Point) IP-65 Front Bezel &...

  • Page 17: Specification

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 1.3 Specification System ® Processor Onboard Intel Atom™ D510 1.66 GHz Processor System Memory DDR2 SODIMM x 1, Max.

  • Page 18: Power Supply

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Carton Dimension 26” x 19.52” x 7.87 (661mm x 496mm x 200mm) Net Weight 11 lb (5 kg) Gross Weight 16.06 lb (7.3 kg)
  • Page 19 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Backlight MTBF (Hours) 50,000 Touchscreen Type Projected Capacitive Multi-Touch (Windows® 7) Light Transmission Chapter 1 General Information...

  • Page 20: General Information

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 1.4 General Information 1.3M Camera LCD On/Off Volume+ Volume- Brightness+ RFID Brightness- VESA 75/100 Accessory Holes Accessory...
  • Page 21 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Antenna Antenna Smart Card Reader USB2.0 x 2 LAN x 2 Power Connector USB x 2 RS-232 USB x 2 RS-232/422/485...

  • Page 22: Chapter 2 Hardware Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter Hardware Installation Chapter 2 Hardware Installation...

  • Page 23: Safety Precautions

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it.

  • Page 24: A Quick Tour Of The Acp-5182

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 2.2 A Quick Tour of the ACP-5182 Front Rear Chapter 2 Hardware Installation...
  • Page 25 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Cable Cover (Optional) Note 1: You may turn on the power by cutting and destroying the protective cover as it shows below.
  • Page 26 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Note 2: The “Anti-Drop Kit” can help on preventing the cable drop from the connector Note 3: The Anti-theft cable is an optional accessory to prevent from stealing...

  • Page 27: Hard Disk Drive (Hdd) Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 2.3 2.5” Hard Disk Drive (HDD) Installation Step 1: Unscrew the rear cover screws (15 screws) Step 2: Remove EMI Cover (5 screws) Chapter 2 Hardware Installation...
  • Page 28 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Step 3: Remove HDD Bracket (4 screws) Step 4: Get the HDD and HDD Bracket ready Chapter 2 Hardware Installation...
  • Page 29 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Step 5: Fasten the four screws to fix HDD Bracket and HDD Step 6: Connect the SATA and power cables to the HDD and fasten the four screws to fix the HDD Bracket Chapter 2 Hardware Installation...

  • Page 30: Chapter 3 Ami Bios Setup

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter BIOS Setup Chapter 3 AMI BIOS Setup 3-1...

  • Page 31: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The ACP-5182 CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

  • Page 32: Ami Bios Setup

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 3.2 AMI BIOS Setup AMI BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.

  • Page 33: Chapter 4 Driver Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter Driver Installation Chapter 4 Driver Installation...
  • Page 34 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 The ACP-5182 comes with an AutoRun CD-ROM that contains all drivers and utilities that can help you to install the driver automatically.
  • Page 35 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 4.1 Installation: Insert the ACP-5182 CD-ROM into the CD-ROM drive. And install the drivers from Step 1 to Step 6 in order. Step 1 – Install Chipset Driver Click on the STEP1–CHIPSET folder and select the OS...
  • Page 36 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Step 4 –Install LAN Driver Click on the STEP4–LAN folder and select the OS folder your system is Double click on the .exe file located in each OS folder Follow the instructions that the window shows...
  • Page 37 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter 4 Driver Installation...
  • Page 38 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Chapter 4 Driver Installation...
  • Page 39 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 If you have done installing the G-sensor program, the screen will be rotated automatically when you rotate the ACP-5182. Chapter 4 Driver Installation...

  • Page 40: Appendix A Programming The Watchdog Timer

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer...

  • Page 41: Programming

    ACP-5182 utilizes W83627DHG-P chipset as its watchdog timer controller. Below are the procedures to complete its configuration and the AAEON intial watchdog timer program is also attached based on which you can develop customized program to fit your application. Configuring Sequence Description...
  • Page 42 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 (3) Exit the W83627DHG config Mode. Undesired result may occur if the config Mode is not exited normally. (1) Enter the W83627DHG config Mode To enter the W83627DHG config Mode, two special I/O write operations are to be performed during Wait for Key state.
  • Page 43 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 = 010 Power LED pin is driven low. = 011 Power LED pin outputs 2Hz pulse with 50% duty cycle.
  • Page 44 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 WatchDog Timer Register II (Index=F6h, Default=00h) Bit 7-0 = 0 x 00 Time-out Disable = 0 x 01 Time-out occurs after 1 second/minute = 0 x 02 Time-out occurs after 2...
  • Page 45 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Force Watchdog Timer time-out event: this bit is self-clearing Bit 4 : Watchdog Timer Status. R/W Watchdog Timer time-out occurred Watchdog Timer counting Bit 3-0...

  • Page 46: W83627Dhg Watchdog Timer Initial Program

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 A.2 W83627DHG Watchdog Timer Initial Program Example: Setting 10 sec. as Watchdog timeout interval ;/////////////////////////////////////////////////////////////////////////////////////////////// Mov dx,2eh ;Enter W83627DHG config mode...
  • Page 47 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 ;/////////////////////////////////////////////////////////////////////////////////////////////// Dec dx Mov al,0f5h ;CRF5 (PLED mode register) Out dx,al Inc dx In al,dx And al,not 08h ;Set second as counting unit Out dx,al...

  • Page 48: Appendix B I/O Information

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Appendix I/O Information B - 1 Appendix B I/O Information...

  • Page 49: I/O Address Map

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 B.1 I/O Address Map B - 2 Appendix B I/O Information...
  • Page 50 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 B - 3 Appendix B I/O Information...

  • Page 51: St Memory Address Map

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 B.2 1 MB Memory Address Map B - 4 Appendix B I/O Information...

  • Page 52: Irq Mapping Chart

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 B.3 IRQ Mapping Chart B.4 DMA Channel Assignments B - 5 Appendix B I/O Information...

  • Page 53: Appendix C Miscellanea

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 A ppendix Miscellanea Appendix C Miscellanea C-...

  • Page 54: General Cleaning Tips

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 C.1 General Cleaning Tips You may need the following precautions before you begin to clean the computer.

  • Page 55: Cleaning Tools

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 C.2 Cleaning tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals.
  • Page 56 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 • Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas in your keyboard, mouse, and other locations.

  • Page 57: Scrap Computer Recycling

    For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling. The worldwide distributors show on the following website: http://www.aaeon.com/?TabIndex=Contact&TabID=Distributors Note: Follow the national requirements to dispose unit Appendix C Miscellanea...

  • Page 58: Installing Accessories

    M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 C.4 Installing Accessories Skype Phone Installation Step 1: Fasten the two screws(2-SELF TAPPING SCREWS) to fix the Skype Bracket with the ACP-5182 Appendix C Miscellanea C-...
  • Page 59 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 MSR Installation Step 1: Fasten the two screws (2-SELF TAPPING SCREWS) to fix the MSR Bracket with the ACP-5182 Appendix C Miscellanea...
  • Page 60 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Bar Code Scanner Installation Step 1: Fasten the three screws to fix the Bar Code Scanner with the Appendix C Miscellanea C-...
  • Page 61 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 backet Step 2: Fasten the two screws (2-SELF TAPPING SCREWS) to fix the Bar Code Scanner with the ACP-5182 Appendix C Miscellanea...
  • Page 62 M u l t i - T o u c h P a n e l P C A C P - 5 1 8 2 Appendix C Miscellanea C-...
