M u l t i - T o u c h P a n e l P C
A C P - 5 1 5 3
ACP-5153
®
TM
15.6" Intel
Atom
D2550
Processor

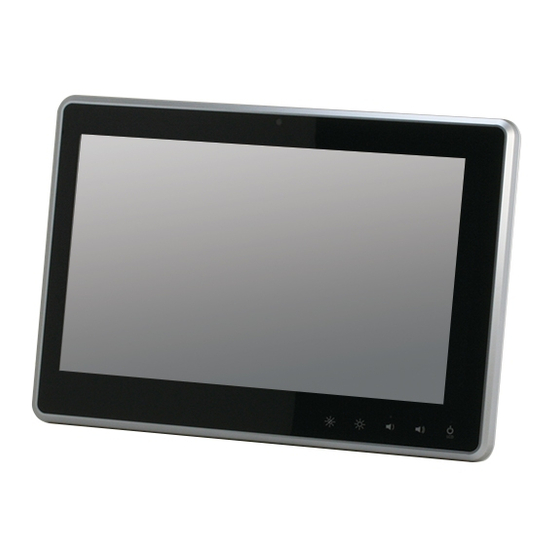

Fanless Multi-Touch Panel PC
ACP-5153 Manual 1st Ed
May 15, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP-5153 and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon ACP-5153

Summary of Contents for Aaeon ACP-5153

  • Page 1 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 ACP-5153 ® 15.6” Intel Atom D2550 Processor Fanless Multi-Touch Panel PC ACP-5153 Manual 1st Ed May 15, 2014...

  • Page 2: Copyright Notice

    AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Acknowledgments All other products’ name or trademarks are properties of their respective owners.  AMI is a trademark of American Megatrends Inc.

  • Page 4: Packing List

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Packing List Before you begin operating your PC, please make sure that the following materials are enclosed:  ACP-5153 Multi Touch Panel PC  HDD screws  100/240V AC Adapter ...
  • Page 5 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3.
  • Page 6 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 The equipment does not work well, or you cannot get it to work according to the user’s manual. The equipment has been dropped and damaged.
  • Page 7 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Panel PC/ Workstation 有毒有害物质或元素 部件名称 铅...

  • Page 8: Table Of Contents

    1.3 Specification .............. 1-4 1.4 Dimension ..............1-7 Chapter 2 Hardware Installation 2.1 Safety Precautions ............ 2-2 2.2 A Quick Tour of the ACP-5153 ........2-3 2.3 Location of Connectors and Jumpers of Main Board ..................2-5 2.4 List of Jumpers ............2-7 2.5 List of Connectors .............
  • Page 9 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.16 1st LVDS Backlight Bias/PWM Mode Selection (JP10) ..................2-12 2.17 1st LVDS Operating Voltage Selection (JP11) ..2-13 2.18 Front Panel (CN1) ...........
  • Page 10 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.40 PS/2 Keyboard and Mouse Connector (CN23) ..2-21 2.41 2nd LVDS Inverter (CN24) ........2-21 2.42 Stereo-L Channel (CN25) ........
  • Page 11 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 A.2 ITE8783 Watchdog Timer Initial Program....A-6 Appendix B I/O Information B.1 I/O Address Map ............ B-2 B.2 Memory Address Map ..........

  • Page 12: Chapter 1 General Information

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Chapter General Information 1- 1 Chapter 1 General Information...

  • Page 13: Introduction

    D2550 1.86 GHz processor. It is a PC-based system with 15.6" color TFT LCD display, onboard Ethernet controller, multi-I/O port interfaces and an audio controller. The ACP-5153 is a perfect solution for comprehensive lifestyle computing applications. For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications.

  • Page 14: Features

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 1.2 Features  15.6” SXGA TFT LED LCD ®  Onboard Intel Atom™ D2550 1.86GHz ...

  • Page 15: Specification

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 1.3 Specification System ®  Onboard Intel Atom™ D2550 1.86 GHz Processor  System Memory DDR3 SODIMM x 1, Max.
  • Page 16 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3  Dimension 15.5”(W) x 10.7”(H) x 2.44”(D) (394mm x 372mm x 62mm)  Carton Dimension 20.47”(W) x 18.5”(H) x 9.06”(D) (520mm x 470mm x 230mm) ...
  • Page 17 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3  Backlight MTBF (Hours) 50,000 Touch Screen  Type Projected Capacitive Touch (two points) ...

  • Page 18: Dimension

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 1.4 Dimension Chapter 1 General Information...

  • Page 19: Chapter 2 Hardware Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Chapter Hardware Installation Chapter 2 Hardware Installation...

  • Page 20: Safety Precautions

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it.

  • Page 21: A Quick Tour Of The Acp-5153

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.2 A Quick Tour of the ACP-5153 Front Antenna (Optional) (Optional) RFID (Optional) Rear...
  • Page 22 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Smart Card Reader (Optional) DVI x 1 Line-out USB x 2 LAN x 2 Power Switch USB x 2 RS-232 x 1...

  • Page 23: Location Of Connectors And Jumpers Of Main Board

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.3 Location of Connectors and Jumpers of Main Board Component Side Component Side Chapter 2 Hardware Installation...
  • Page 24 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Solder Side Solder Side Chapter 2 Hardware Installation...

  • Page 25: List Of Jumpers

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.4 List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application.

  • Page 26: List Of Connectors

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.5 List of Connectors The board has a number of connectors that allow you to configure your system to suit your application.
  • Page 27 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 CN19 COM Port #2 CN20 Touch Screen CN21 Stereo-R Channel CN22 LVDS (Dual channel 18/24bit) CN23 PS/2 Keyboard &...

  • Page 28: Setting Jumpers

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.6 Setting Jumpers You configure your card to match the needs of your application by setting jumpers.

  • Page 29: Auto Power Button Selection (Jp1)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.7 Auto Power Button Selection (JP1) Function Enable(Default) Disable 2.8 Clear CMOS (JP2) Function Normal (Default) Clear CMOS 2.9 COM2 RI/+5V/+12V Selection (JP3)

  • Page 30: 2Nd Lvds Backlight Bias/Pwm Mode Selection (Jp6)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.12 2 LVDS Backlight Bias/PWM Mode Selection (JP6) Function Bias (Default) PWM Control 2.13 2 LVDS Operating Voltage Selection (JP7) Function +3.3V (Default)

  • Page 31: 1St Lvds Operating Voltage Selection (Jp11)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.17 1 LVDS Operating Voltage Selection (JP11) JP11 Function +3.3V (Default) Note: Max. Current rating is 2A. 2.18 Front Panel (CN1) S i g n a l (-) 1-2 (+)

  • Page 32: 5Vsb Output W/Smbus (Cn4)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.21 +5VSB Output w/SMBUS (CN4) S i g n a l SMBDATA Ground SMBCLK Ground PSON# +5 Volt.

  • Page 33: Digital I/O Connector (Cn7)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.24 Digital I/O Connector (CN7) I2C Address: 0x6Eh Signal Signal Port 1 Port 2 Port 3 Port 4 Port 5...

  • Page 34: Output For Sata Hdd Usage (Cn9)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Ground Ground Ground Ground Ground ACK# Ground BUSY Ground Ground SLCT 2.26 +5V Output for SATA HDD Usage (CN9) S i g n a l +5 Volt.

  • Page 35: Usb Port #5 (Cn12)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 CTSF DTRF Ground 2.29 USB Port #5 (CN12) S i g n a l +5 Volt.

  • Page 36: Usb Port #3 (Cn15)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.32 USB Port #3 (CN15) S i g n a l +5 Volt. Standby Data2- Data2+ Ground...

  • Page 37: Com Port #3 (Cn18)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 LDRQ#0 LDRQ#1 SERIRQ 2.35 COM Port #3 (CN18) Signal Signal DCDC DSRC RTSC CTSC DTRC Ground 2.36 COM Port #2 (CN19)

  • Page 38: Touch Screen (Cn20)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 RS-485 Mode Signal Signal TXD- TXD+ N/C / +5 Volt. / (+12 Volt.) Ground 2.37 Touch Screen (CN20) 8-wire Signal 4-wire Signal...

  • Page 39: Ps/2 Keyboard And Mouse Connector (Cn23)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 LCD Volt. Ground LB_CLK# LB_CLK LCD Volt. Ground LB_DATA#_0 LB_DATA_0 LB_DATA#_1 LB_DATA_1 LB_DATA#_2 LB_DATA_2 LB_DATA#_3 LB_DATA_3 LVD_DDCDAT...

  • Page 40: Stereo-L Channel (Cn25)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.42 Stereo-L Channel Inverter (CN25) S i g n a l 2.43 1 LVDS Inverter (CN26) S i g n a l +5 Volt.

  • Page 41: Usb Port #1 And #2 (Cn30)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 LCD Volt. Ground 2.45 2 RJ-45 Ethernet Connector (CN28) Signal Signal LAN2_MDIO0+ LAN2_MDIO0- LAN2_MDIO1+ LAN2_MDIO1- LAN2_TCD0 LAN2_TCD1...

  • Page 42: Audio Line In/Out And Mic (Cn31)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Data0+ Data1+ Ground Ground 2.48 Audio Line In/Out and MIC (CN31) S i g n a l MIC_L MIC_R Ground...

  • Page 43: Com Port #1 (Cn33)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Ground +5 Volt. Ground DVI_DET DVI_TDC0# DVI_TDC0 Ground Ground DVI_TLC DVI_TLC# Ground Ground CRT Display Signal Signal DDCCLK...

  • Page 44: Sim Card Socket (Cn34)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.51 SIM Card Socket (CN34) Signal Signal UIM_PWR UIM_RST UIM_CLK Ground UIM_VPP UIM_DATA 2.52 CFast™ Disk (CFD1) S i g n a l Ground SATA_TX+...

  • Page 45: Mini Card/ Msata (Pcie1)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 +3.3 Volt. +3.3 Volt. Ground Ground 2.53 Mini Card/ mSATA (PCIE1) Signal Signal +3.3 Volt. Standby/+3.3 PCIE_WAKE# Volt.

  • Page 46: Ddr3 Sodimm Slot (Dimm1)

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 +3.3 Volt. Standby/+3.3 Ground Volt. +3.3 Volt. Standby/+3.3 Volt. Ground +1.5 Volt. Ground +3.3 Volt. Standby/+3.3 Volt.

  • Page 47: Hard Disk Drive Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 2.55 2.5” Hard Disk Drive (HDD) Installation Step 1: Unscrew the rear cover screws (13 screws) Step 2: Remove EMI Cover (9 screws) 2-29 Chapter 2 Hardware Installation...
  • Page 48 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 3: Remove HDD Bracket (4 screws) Step 4: Get the HDD and HDD Bracket ready 2-30 Chapter 2 Hardware Installation...
  • Page 49 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 5: Fasten the four screws to fix HDD Bracket and HDD Step 6: Connect the SATA and power cables to the HDD and fasten the four screws to fix the HDD Bracket 2-31 Chapter 2 Hardware Installation...
  • Page 50 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 7: Close the rear cover of ACP-5153 and see if the label of “Mind the high temperature” has been firmly stuck on the rear cover of ACP-5153...

  • Page 51: Chapter 3 Ami Bios Setup

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Chapter BIOS Setup Chapter 3 AMI BIOS Setup 3-1...

  • Page 52: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The ACP-5153 CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

  • Page 53: Ami Bios Setup

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 3.2 AMI BIOS Setup AMI BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.
  • Page 54 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup Menu Setup submenu: Main Options summary: (default setting) System Date Day MM:DD:YYYY Change the month, year and century. The ‘Day’ is changed automatically.
  • Page 55 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup submenu: Advanced Options summary: (default setting) ACPI Settings System ACPI Parameters S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm.
  • Page 56 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 USB Configuration Parameters Super IO Configuration System Super IO Chip Parameters H/W Monitor Monitor hardware status Chapter 3 AMI BIOS Setup 3-6...
  • Page 57 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 S5 RTC Wake Settings Options summary: (default setting) Wake system with Disabled Fixed Time Enabled Enable or disable System wake on alarm event.
  • Page 58 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Wake up second 0-59 Wake system with Disabled Dynamic Time Enabled Enable or disable System wake on alarm event. Wake up time is current time + Increase minutes.
  • Page 59 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 ACPI Settings Options summary: (default setting) Suspend Disabled ACPI Sleep State S3 only(Suspend to RAM) Select the ACPI state used for System Suspend Chapter 3 AMI BIOS Setup 3-9...
  • Page 60 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 CPU Configuration Options summary: (default setting) Hyper-Threading Disabled Enabled En/Disable CPU Hyper-Threading function Chapter 3 AMI BIOS Setup 3-10...
  • Page 61 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 SATA Configuration Options summary: (default setting) SATA Controller(s) Disabled Enabled En/Disable SATA controller Configure SATA as AHCI Configure SATA controller operating as IDE/AHCI mode.
  • Page 62 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 SATA Port 0/Port 1 Hot Disabled Plug Enabled En/Disable Hot Plug feature for specified port. Chapter 3 AMI BIOS Setup 3-12...
  • Page 63 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 USB Configuration Options summary: (default setting) Legacy USB Support Enabled Disabled Auto Enables BIOS Support for Legacy USB Support. When enabled, USB can be functional in legacy environment like DOS.
  • Page 64 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Forced FDD Hard Disk CD-ROM If Auto. USB devices less than 530MB will be emulated as Floppy and remaining as Floppy and remaining as hard drive.
  • Page 65 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Super IO Configuration Options summary: (default setting) Serial Port 1 Configuration Set Parameters of Serial Port 1 Restore AC Power Loss Power Off Power On Last State...
  • Page 66 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Serial Port 1 Configuration Options summary: (default setting) Serial Port Disabled Enabled En/Disable specified serial port. Change Settings Auto IO=3F8h;...
  • Page 67 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 IO=3E8h; IRQ=3,4,5,7,10,11,12; IO=2E8h; IRQ=3,4,5,7,10,11,12; Select a resource setting for Super IO device. Chapter 3 AMI BIOS Setup 3-17...
  • Page 68 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 H/W Monitor Chapter 3 AMI BIOS Setup 3-18...
  • Page 69 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup submenu: Chipset Options summary: (default setting) Host Bridge Host Bridge Parameters South Bridge South Bridge Parameters Chapter 3 AMI BIOS Setup 3-19...
  • Page 70 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Host Bridge Options summary: (default setting) Intel IGD Configuration Config Intel IGD Settings. Chapter 3 AMI BIOS Setup 3-20...
  • Page 71 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Intel IGD Configuration Options summary: (default setting) Auto Disable IGD Enabled Disabled Audo disable IGD upon external GFX detected IGFX - Boot Type VBIOS Default LVDS...
  • Page 72 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Control LVDS1 Disable Enable Enable/Disable LVDS1 Fixed Graphics 128MB Memory Size 256MB Configure Fixed Graphics Memory Size Chapter 3 AMI BIOS Setup 3-22...
  • Page 73 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 South Bridge Options summary: (default setting) Power Mode ATX Type AT Type Select the power type used on the system TPT Devices HD audio and onboard LAN Settings.
  • Page 74 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 TPT Devices Options summary: (default setting) Azalia Controller Disabled HD Audio Enable or disabled Azalia controller R8111E #1 Controller Disabled Enabled...
  • Page 75 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 PCI Express Root Port 0/1/2/3 Options summary: (default setting) PCI Express Root Disabled Port 0/1/2/3 Enabled Control the PCI Express Root Port.
  • Page 76 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup submenu: Boot Options summary: (default setting) Quiet Boot Disabled Enabled En/Disable showing boot logo. Launch RTL8111E Disabled PXE OpROM...
  • Page 77 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 BBS Priorities Options summary: (default setting) Boot Option #x Disabled Device name Sets the system boot order Chapter 3 AMI BIOS Setup 3-27...
  • Page 78 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup submenu: Security Options summary: (default setting) Administrator Not set Password/ User Password Chapter 3 AMI BIOS Setup 3-28...
  • Page 79 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 You can install a Supervisor password, and if you install a supervisor password, you can then install a user password. A user password does not provide access to many of the features in the Setup utility.
  • Page 80 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Setup submenu: Exit Options summary: (default setting) Save Changes and Reset Reset the system after saving the changes Discard Changes and Reset Reset system setup without saving any changes...
  • Page 81 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Save the changes done so far as User Defaults Restore User Defaults Restore the User Defaults to all the setup options Chapter 3 AMI BIOS Setup 3-31...

  • Page 82: Chapter 4 Driver Installation

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Chapter Driver Installation 4 - 1 Chapter 4 Driver Installation...
  • Page 83 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 The ACP-5153 comes with a DVD-ROM that contains all drivers and utilities that meet your needs.
  • Page 84 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 4.1 Installation: Insert the ACP-5153 DVD-ROM into the DVD-ROM Drive. And install the drivers from Step 1 to Step 7 in order. Step 1 – Install Chipset Driver 1.
  • Page 85 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3  The system will help you install the driver automatically 4 - 4 Chapter 4 Driver Installation...
  • Page 86 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 If you want to update driver, please uninstall driver first. Uninstall IEMGD 1. Double click on the WindowsDriverSETUP.bat 2.
  • Page 87 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 3 – Install LAN Driver 1. Click on the STEP3-LAN folder and select the OS folder your system is 2.
  • Page 88 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 6 – Install Touch Panel Driver Click on the STEP6-TOUCH folder and select the folder of WINXP_32 Double click on the ModifyDBArea.exe Follow the instructions that the window shows...

  • Page 89: Watchdog Timer

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer A-1...

  • Page 90: A.1 Programming

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 A.1 Programming ACP-5153 utilizes ITE 8783 chipset as its watchdog timer controller. Below are the procedures to complete its configuration and the AAEON initial watchdog timer program is also attached based on which you can develop customized program to fit your application.
  • Page 91 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 There are three steps to complete the configuration setup: (1) Enter the MB PnP Mode; (2) Modify the data of configuration registers; (3) Exit the MB PnP Mode.
  • Page 92 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 WatchDog Timer Configuration Registers Configure Control (Index=02h) This register is write only. Its values are not sticky; that is to say, a hardware reset will automatically clear the bits, and does not require the software to clear them.
  • Page 93 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Watch Dog Timer 1, 2, 3 Configuration Register (Index=72h, 82h, 92h Default=001s0000b) Watch Dog Timer 1,2,3 Time-Out Value (LSB) Register (Index=73h,83h,93h, Default=38h) Watch Dog Timer 1,2,3 Time-Out Value (MSB) Register (Index=74h,84h,94h Default=00h)
  • Page 94 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 A.2 ITE8783 Watchdog Timer Initial Program .MODEL SMALL .CODE Main: CALL Enter_Configuration_mode CALL Check_Chip mov cl, 7 call Set_Logic_Device ;time setting...
  • Page 95 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 call Superio_Set_Reg ; game port enable mov cl, 9 call Set_Logic_Device Initial_OK: CALL Exit_Configuration_mode MOV AH,4Ch INT 21h Enter_Configuration_Mode PROC NEAR...
  • Page 96 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 CALL Write_Configuration_Data Exit_Configuration_Mode ENDP Check_Chip PROC NEAR MOV AL,20h CALL Read_Configuration_Data CMP AL,87h JNE Not_Initial MOV AL,21h CALL Read_Configuration_Data CMP AL,81h...
  • Page 97 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 OUT DX,AL MOV DX,WORD PTR CS:[Cfg_Port+06h] IN AL,DX Read_Configuration_Data ENDP Write_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL XCHG AL,AH MOV DX,WORD PTR CS:[Cfg_Port+06h]...
  • Page 98 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Set_Logic_Device proc near push ax push cx xchg al,cl mov cl,07h call Superio_Set_Reg pop cx pop ax Set_Logic_Device endp ;Select 02Eh->Index Port, 02Fh->Data Port...
  • Page 99 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Appendix I/O Information B - 1 Appendix B I/O Information...

  • Page 100: B.1 I/O Address Map

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 B.1 I/O Address Map B - 2 Appendix B I/O Information...
  • Page 101 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 B - 3 Appendix B I/O Information...

  • Page 102: B.2 Memory Address Map

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 B.2 Memory Address Map B - 4 Appendix B I/O Information...

  • Page 103: B.3 Irq Mapping Chart

    M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 B.3 IRQ Mapping Chart B.4 DMA Channel Assignments B - 5 Appendix B I/O Information...
  • Page 104 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Appendix AHCI Setting Appendix C AHCI Setting...
  • Page 105 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 B.1 Setting AHCI OS installation to setup AHCI Mode. Step 1: Copy the files below from “Driver CD -> STEP5-AHCI\WINXP_32” to Disk Step 2: Connect the USB Floppy to the system Step 3: Setup OS...
  • Page 106 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 4: Press “F6” Step 5: Choose “S” Appendix C AHCI Setting...
  • Page 107 M u l t i - T o u c h P a n e l P C A C P - 5 1 5 3 Step 6: Choose “Intel(R) NM10 Express Chipset” Step 7: It will show the model number you select and then press “ENTER Step 8: Setup is loading files, follow the instruction when it's finished Appendix C AHCI Setting...
