Rear Panel

Power port
10/100BaseT
LAN connections
Reset Button
(Reset to Defaults)
WAN port
(ADSL port)

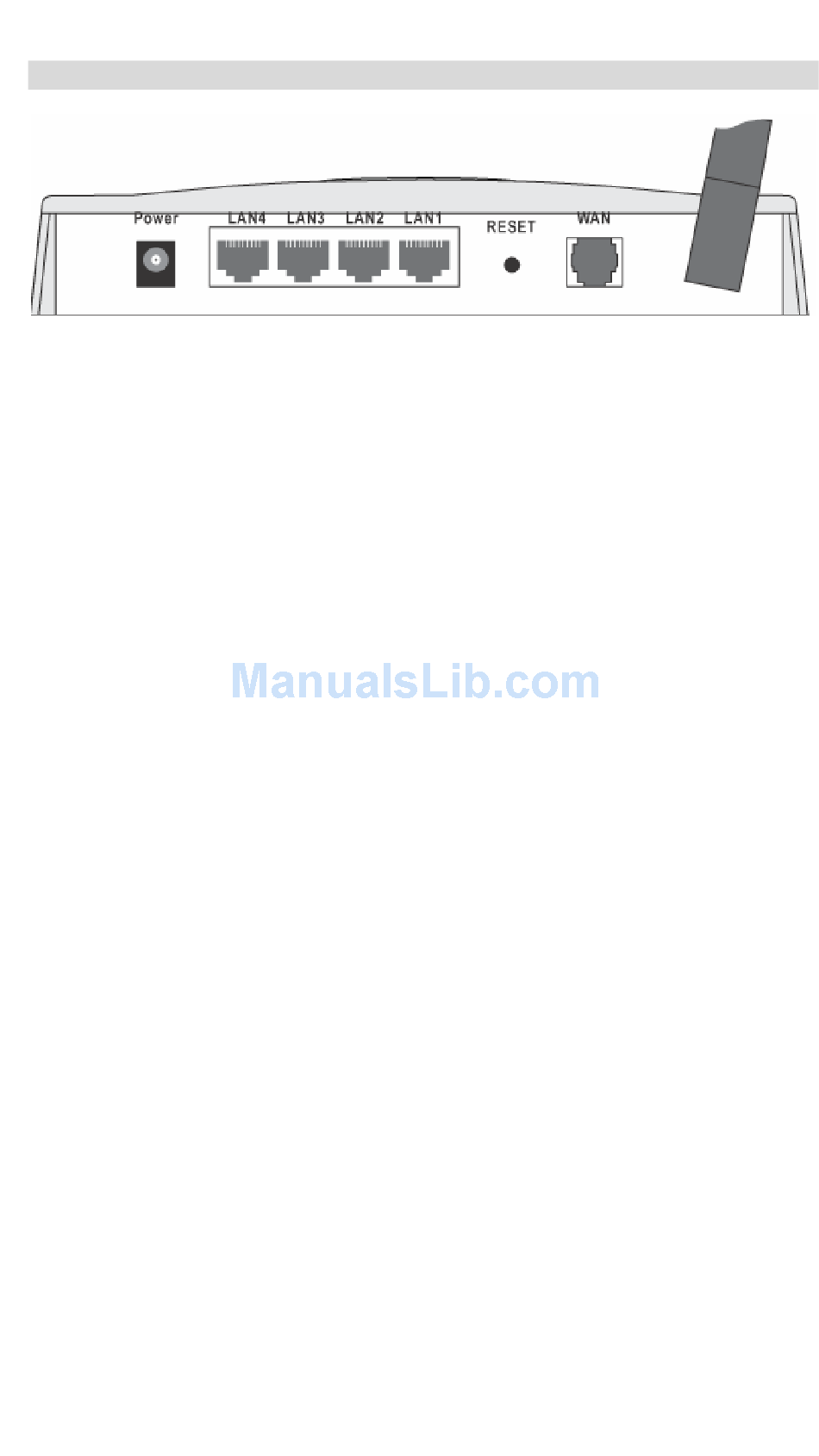

Figure 3: Rear Panel
Connect the supplied power adapter here.
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
Note:
Any LAN port on the WBR-3407 will automatically function as an
"Uplink" port when required. Just connect any port to a normal port
on the other hub, using a standard LAN cable.
This button will reset the WBR-3407 to the factory default settings.
To do this, press and hold the Reset Button for five (5) seconds, until
the Status LED is lit, then release the Reset Button, and wait the
WBR-3407 to restart using the factory default values.
Connect this port to your ADSL line.
