Physical Details
Front-mounted LEDs
Power LED
(Green)
Status LED
(Yellow)
LAN
WLAN LED
WAN

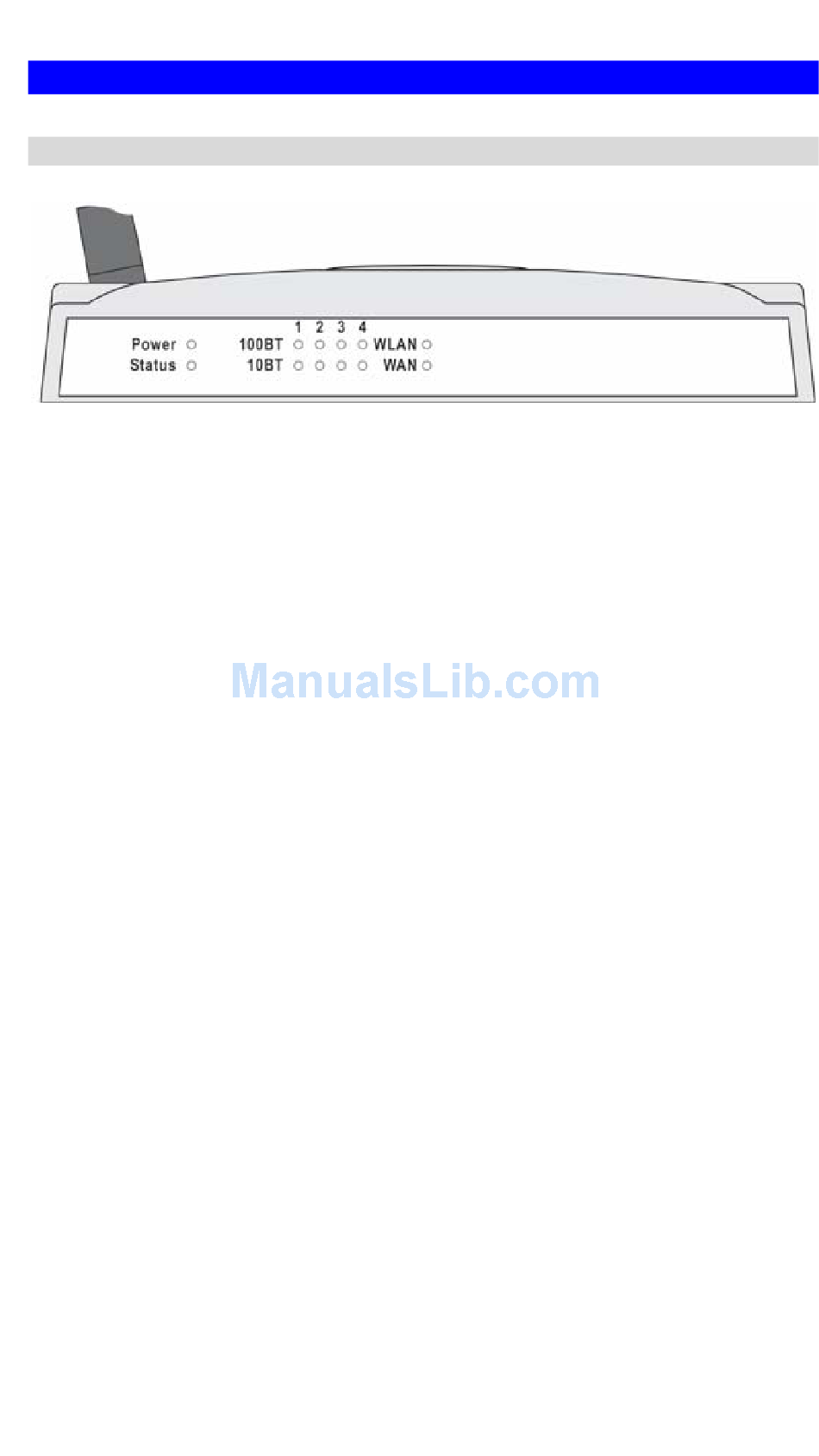

Figure 2: Front Panel
On - Power on.
Off - No power.
Off - Normal operation.
Blinking - This LED blinks during start up, and during a Firmware
Upgrade.
For each port, there are 2 LEDs, to indicate the connection speed
(10BaseT or 100BaseT) of each port.
•
100BT - This will be ON if the LAN connection is using 100BaseT,
and Blinking if data is being transferred via the corresponding LAN
port.
•
10BT - This will be ON if the LAN connection is using 10BaseT, and
Blinking if data is being transferred via the corresponding LAN port.
•
If neither LED is on, there is no active connection on the
corresponding LAN port.
On – Wireless enabled.
Off - No Wireless connections currently exist.
Flashing - Data is being transmitted or received via the WBR3407. This
includes "network traffic" as well as user data.
On - ADSL connection is available.
Off - No ADSL connection.
Flashing - Data is being transmitted or received via the ADSL connection.
