WBR-3407 User Guide
9. Certificate setup is now complete.
802.1x Authentication Setup
1. Open the properties for the wireless connection, by selecting Start - Control Panel -
Network Connections.
2. Right Click on the Wireless Network Connection, and select Properties.
3. Select the Authentication Tab, and ensure that Enable network access control using IEEE
802.1X is selected, and Smart Card or other Certificate is selected from the EAP type.
Encryption Settings
The Encryption settings must match the APs (Access Points) on the Wireless network you
wish to join.
•
Windows XP will detect any available Wireless networks, and allow you to configure
each network independently.

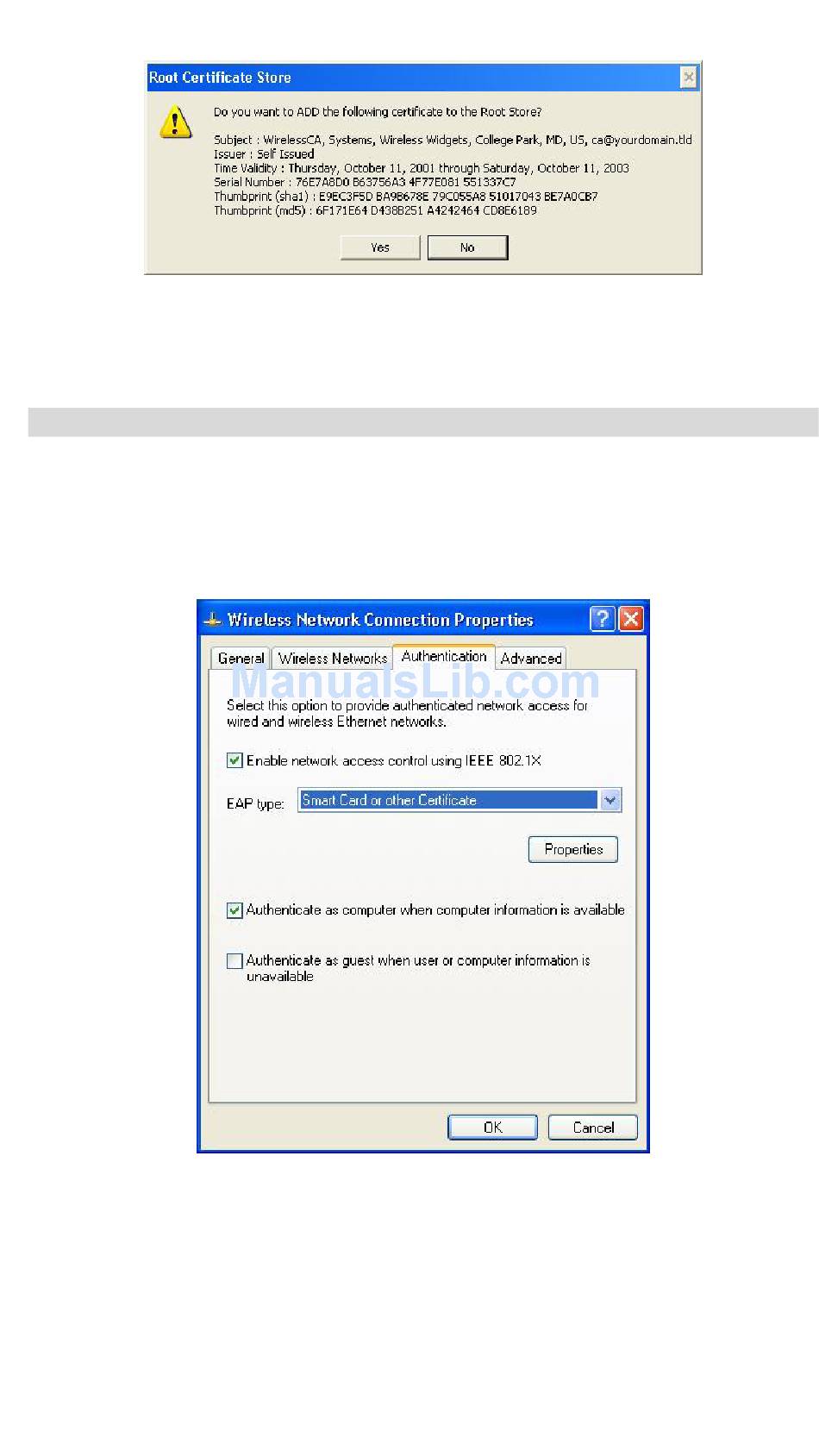

Figure 47: Root Certificate Screen
Figure 48: Authentication Tab
50
