Ordering Information - Intelix DIGI-HDMI-HR-R Installation Manual

Technical Specifications
Video Amplifier Bandwidth
Supported Video Resolutions
Max Recommended Distance
Input Video Signal
Input DDC Signal
Connectors
Cabling
Power
Power Connector
Dimensions
Temperature
Shipping Weight
Warranty
Regulatory
Compatible Intelix Matrices
Intelix Part Number

Ordering Information

The Intelix DIGI-HDMI-HR-R conforms
to HDMI and HDCP specifications.
Intelix does not guarantee operation with
devices that do not conform to these
specifications. The Intelix DIGI-HDMI-
HR-R passes HDCP signals and does not
manipulate them in any way.
Distances and picture quality may be
affected by cable grade, cable quality,
source and destination equipment, RF and
electrical interference, and cable patches.

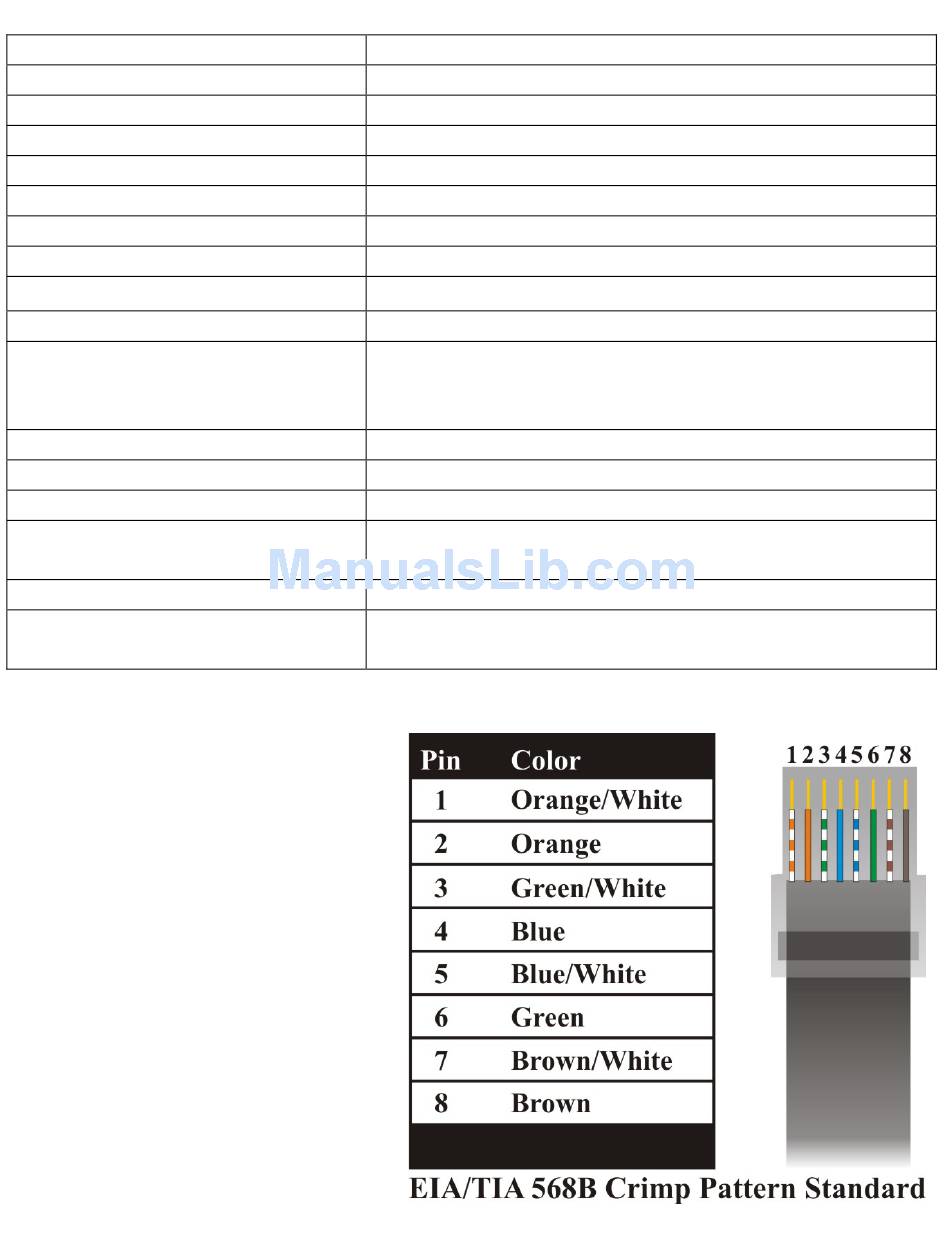

Intelix specifications are based on straight-
through cabling with standard-grade Cat
5e.
1.65 Gbps
480i, 480p, 720p, 1080i
150 feet
1.2 volts p-p
5.0 volts p-p (TTL)
Two (2) RJ45s to one (1) type A HDMI connector
Two individual runs of Cat 5e or Cat 6
External 5 VDC
Side mounted connector
3.25" x 1.75" x 0.88"
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: up to 95%
1 lb.
2 years
CE, RoHS
DIGI-HDMI-4X4
DIGI-HDMI-4X2
DIGI-HDMI-HR-R
DIGI-HDMI-HR-R package includes one receive
unit, one power supply, and one mounting bracket
