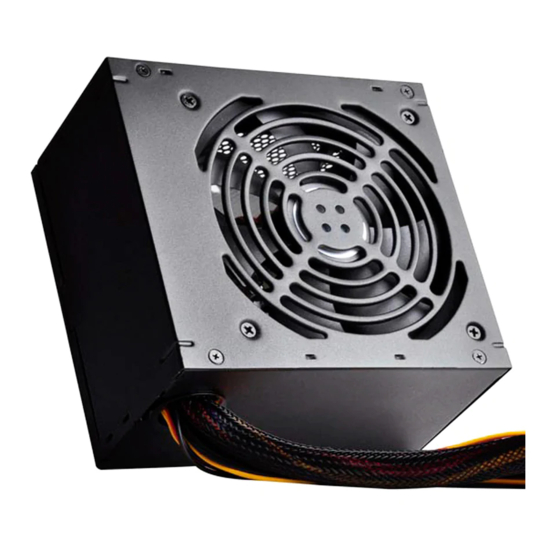

Silverstone strider series power supply

Advertisement

Quick Links

STRIDER SERIES
SST-ST60F

Advertisement

loading
Need help?

Need help?

Do you have a question about the STRIDER SST-ST60F and is the answer not in the manual?

Questions and answers

Summary of Contents for SilverStone STRIDER SST-ST60F

  • Page 1 STRIDER SERIES SST-ST60F...
  • Page 2: Ac Input Requirements

    This specification describes the requirements of 600W with active P.F.C Switching Power Supply with an ATX form-factor,+5V standby voltage,fan control,ATX12V 2.3/EPS12V 2.91 Power supply version, remote on/off control,full range input capability and forced air cooling characteristics. 1. AC INPUT REQUIREMENTS The input voltage, current, and frequency requirements for continuous operation are stated below.
  • Page 3 STRIDER SST-ST60F 2.2 Load Ranges 2.2.1 Typical Power Distribution for 600W ATX12V Configuration Parameter Peak Unit 1.Maximum continuous total DC output power should not exceed 600W 2.Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not exceed 170W 3.The maximum peak total DC output power shall not exceeed 620 watts 4.Peak power and current loading shall be supported for a minimum of 12 second.
  • Page 4 2.3.3 Ripple/Noise voltage test circuit Power Supply Vout AC Hot 10uF 0.1uF Load Vreturn AC Neutral AC Ground Scope Figure 1. Ripple/Noise voltage test circuit 2.4 Overshoot Any overshoot at turn on or turn off shall be less 10% of the nominal voltage value, all outputs shall be within the regulation limit of section 2.0 before issuing the power good signal of section 4.0.
  • Page 5 STRIDER SST-ST60F 3. PROTECTION 3.1 Over-power protection The power supply will be shutdown and latch off when output power is 110%~150%. 3.2 Over voltage protection The over voltage sense circuitry and reference shall reside in packages that are separate and distinct from the regulator control circuity and reference.No single point fault shall be able to cause a sustained over voltage condition on any or all outputs.The supply shall...
  • Page 6 3.6 No load operation No damage or hazardous condition should occur with all the DC output connectors disconnected from the load.The power supply may latch into the shutdown state. 3.7 Over temperature protection In the event of a fan failure or the vents being blocked, the power supply shall have protection such that any over temperature condition caused by these events shall protect the power supply from damage or abnormal and/or dangerous operation.A shutdown of the power supply is acceptable A temperature derating...
  • Page 7: Electromagnetic Compatibility (Emc)

    STRIDER SST-ST60F 5. ENVIRONMENT 5.1 Operation 5.2 Shipping and Storage Temperature Relative Humidity 5 to 90%, non-condensing 5.3 Altitude Operating 3,000FT max. Storage 15,000FT max. 6. SAFETY 6.1 Underwriters Laboratory (UL) recognition. The power supply designed to meet UL 1950.
  • Page 8: Mechanical Requirements

    7.9 EN61000-3-2 harmonic current emissions. If applicable to sales in Europe, the power supply shall meet the requirements of EN 61000-3-2 Class D and the Guidelines for the Suppression of Harmonics in Appliances and General Use Equipment Class D for harmonic line current content at full-rated power.
  • Page 9 STRIDER SST-ST60F EPS 12V 8PIN connector 18AWG wire Signal Signal 18AWG wire Yellow +12V2 Black Yellow +12V2 Black +12V1 Black Yellow/Black stripe Yellow/Black stripe +12V1 Black ATX 12V 4PIN 18AWG wire Signal Signal 18AWG wire Black +12V1 Yellow Black +12V1...
  • Page 10: Fan Speed Control

    6PIN PCI Express connector #1 & #2 & #3 & #4 18AWG wire Signal Signal 22AWG wire +12V2 Black Yellow/Blue stripe +12V2 Black Yellow/Blue stripe Yellow/Blue stripe +12V2 Black 8PIN PCI Express connector 18AWG wire Signal Signal 22AWG wire +12V2 Black Yellow/Blue stripe +12V2...
  • Page 11 STRIDER SST-ST60F...
