Decathlon Series

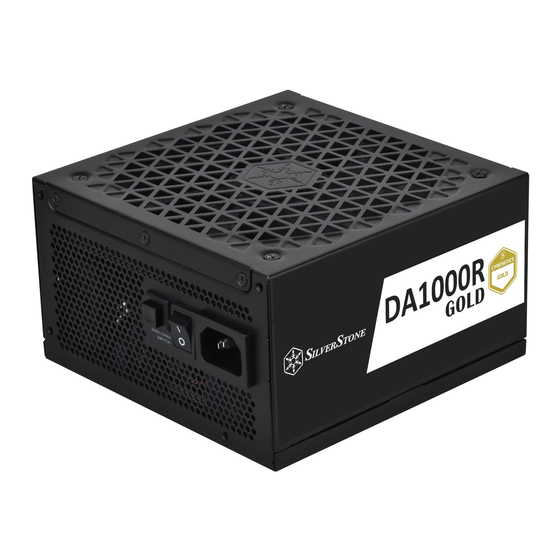

DA1000R Gold/DA1200R Gold
Cybenetics Gold 1000W/1200W PCIe 5.0 fully modular ATX PSU
▓ 100% modular cables
▓ Cybenetics Gold Certified
▓ All Japanese electrolytic capacitors
▓ 24/7 continuous power output with 50°C operating temperature
▓ Supports 12VHPWR PCIe connector with Intel ATX 3.0 standard

Advertisement

loading
Need help?

Need help?

Do you have a question about the Decathlon Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SilverStone Decathlon Series

  • Page 1 Decathlon Series DA1000R Gold/DA1200R Gold Cybenetics Gold 1000W/1200W PCIe 5.0 fully modular ATX PSU ▓ 100% modular cables ▓ Cybenetics Gold Certified ▓ All Japanese electrolytic capacitors ▓ 24/7 continuous power output with 50°C operating temperature ▓ Supports 12VHPWR PCIe connector with Intel ATX 3.0 standard...
  • Page 2 Decathlon Series DA1000R Gold / DA1200R Gold SST-DA1000R-GM / SST-DA1200R-GM ATX Switching Power Supply Cybenetics Gold efficiency certified. 1000W/1200W 1.Scope This document defines the Desktop Power Supply quality, 5 output 1200W/1000W, power supplies for the application of Desktop systems. 2.Electrical: The electrical specifications that follow is going to meet over the environmental ranges specified in Section 3 unless otherwise noted.
  • Page 3 2.2.DC Output: 2.2.1. DC Output Voltage Regulations The DC output voltages remain within the regulation ranges shown in Table 2. when measured the at load end of the output connectors under all AC line, O/P loads, and environmental conditions. The voltage regulation will be maintained under continuous operation for a period of time equal to the MTBF specified in section 5.2 at any steady state temperature and operating conditions specified in section 3.
  • Page 4 LOAD +12V +3.3V -12V +5VSB SPEC 87.0% 17.53A 3.17A 3.17A 0.05A 0.52A 1200W 90.0% 43.84A 7.925A 7.925A 0.13A 1.32A 100% 87.0% 87.68A 15.85A 15.85A 0.26A 2.63A 14.64A 2.54A 2.54A 0.05A 0.53A 87.0% 1000W 36.59A 6.35A 6.35A 0.13A 1.32A 90.0% 100% 73.19A 12.70A 12.70A...
  • Page 5: Voltage Limits

    2.2.5. DC Output Transient Response The output voltages will remain within the regulation limits specified in Table 2. The load-changing repetition rate is 50Hz to 10KHz, and the transient load slew rate 0.5A/us. The maximum step load size, and output capacitive loading are specified as followings in Table 9.
  • Page 6 Parameter Description Value Required Recommended for Alternative Sleep Mode AC power on time <2s Power-on time < 150ms Rise time 0.2 – 20 ms PWR_OK delay 100 – 150 ms PWR_OK rise time < 10 ms AC loss to PWR_OK hold-up time >...
  • Page 7 , Input Low Voltage 0.0V 0.8V , Input Low Current (Vin = 0.4V) -1.6mA , Input high Voltage (lin = -200uA) 2.0V , open circuit, lin =0 -5.25V Ripple/Noise 400 mV p-p Table 11. PS_ON Signal Characteristics 2.3.3. +5Vsb (Standby Voltage Output) +5Vsb is a standby voltage output that is active whenever the AC power is present.
  • Page 8: Output Protection

    2.3.9. +5Vsb at AC Power-down After AC power is removed, the +5Vsb standby voltage output will remain at its steady state value for the minimum hold-up time specified in Section 2.2.6 until the output begins to decrease in voltage. The decrease can be monotonic in nature, dropping to 0.0V.
  • Page 9: Over Temperature Protection

    2.4.4. Short-circuit Protection The power supply will shut down and latch off for shorting the +12V, +5V, +3.3V, and -12V rails to return or any other rails. Shorts between main output rails and +5Vsb will not cause any damage to power supply. +5Vsb can be capable of being shorted indefinitely, but when the short is removed, the power supply will recover automatically or by cycling PS_ON.
  • Page 10 3.2. Humidity Operating 20% to 90% relative humidity (non-condensing). Non-operating 5% to 95% relative humidity (non-condensing). 3.3. Altitude: Operating 0 to 16,404 feet (5000 meter) . Storage 0 to 50,000 feet. 4. Reliability 4.1. Component De-rating The derating process promotes quality and high reliability. All electronic components are designed with conservative derating for use in commercial and industrial environments.
  • Page 11 A single PCIe 8pin cable and connector’s maximum current rating is Anschlusses beträgt 12,5 A, was 150 W (+12 V x 12,5 A) entspricht. 12.5A, which is 150W (+12V x 12.5A). So SilverStone’s warranty will not Daher deckt die SilverStone-Garantie keine Schäden oder...
  • Page 12 électrique asegúrese de que los dispositivos conectados funcionan dentro de estos límites. La garantía de SilverStone no cubrirá daños o fallos a Le courant nominal maximum d'un câble et d'un connecteur PCIe 8 resultas de un uso excesivo de estos conectores y sus cables broches unique est de 12,5 A, ce qui correspond à...
  • Page 13 (+12V x 5A x 2) โปรดตรวจสอบให้ ม ั ่ น ใจว่ า อุ ป กรณ์ ต ั ว ดึ ง พลั ง งาน +12V ที ่ เ ชื ่ อ ม ต่ อ กั บ เมนบอร์ ด สามารถทำงานภายใต้ ข ี ด จำกั ด เหล่ า นี ้ ไ ด้ การรั บ ประกั น ของ SilverStone ไม่...
  • Page 14 Openings that do not exceed 5mm in any dimension Openings that do not exceed 1mm in width regardless of length...
  • Page 15: Operation Is Subject To The Following Two Conditions

    Model (safety certification):SST-AX1000MCGD-A Model (safety certification):SST-AX1200MCGD-A The equipment a Class | Switching Power Supply intended to use for information technology equipment or Audio and Video equipment. ※付属の電源コードは当該製品専用です。他の機器に使用しないでください。 Please refer to SilverStone website for latest specifications updates.
  • Page 16 NO.G11246160...
