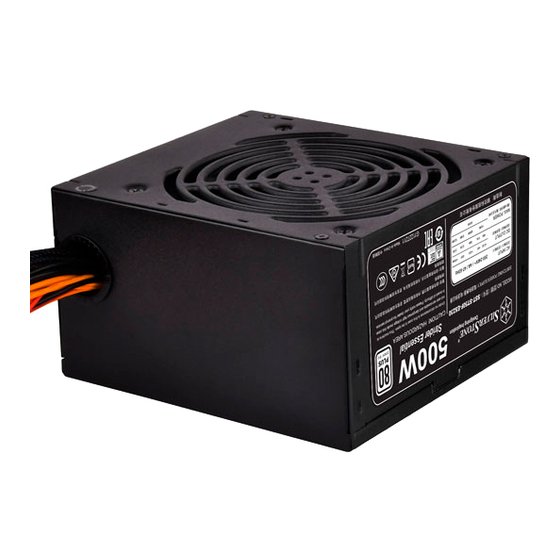

SilverStone STRIDER ESSENTIAL Series Quick Start Manual

SilverStone STRIDER ESSENTIAL Series Quick Start Manual

Atx12v switching power supply with active pfc ps/2

Advertisement

Quick Links

STRIDER ESSENTIAL SERIES
SST-ST50F-ES230
Power for everything you need
High efficiency greater than 80% (Max. up to 85%)
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Active PFC Circuitry
lssue date: July, 2012
NO.G11216800
Multiple protection circuitry
PCI-E 8pin and PCI-E 6pin connector support
Silent running 120mm fan with 18dBA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRIDER ESSENTIAL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SilverStone STRIDER ESSENTIAL Series

  • Page 1 STRIDER ESSENTIAL SERIES SST-ST50F-ES230 Power for everything you need High efficiency greater than 80% (Max. up to 85%) 24/7 continuous power output with 40℃ operating temperature Class-leading single +12V rail Active PFC Circuitry lssue date: July, 2012 NO.G11216800 Multiple protection circuitry...
  • Page 2 STRIDER ESSENTIAL SERIES 2.3 Max. Input AC Current SPECIFICATION Max. Input Current Measuring Range 4.0A 207-253 Vrms 2.4 Inrush Current SilverStone Strider Essential The power supply must meet inrush requirements for any rated AC voltage, during turn on at any phase of AC voltage, during a single cycle AC dropout condition, ST50F-ES230 during repetitive ON/OFF cycling of AC, and over the specified temperature range.
  • Page 3 STRIDER ESSENTIAL SERIES 3.2 Remote On/Off Controlled mode 3.7 PG-OK The PSON# signal is required to remotely turn on/off the power supply, PSON# is PG-OK is a power good signal and should be asserted high by power supply to an active low signal that turns on the output power rails. When this is not pulled low indicate that the +5 VDC and +3.3 VDC outputs are above the under-voltage...
  • Page 4 STRIDER ESSENTIAL SERIES 4.2.2 Over Voltage Protection 4.2.2 Over Voltage Protection Frequency Duration Amplitude The +5V/+12V/+3.3V DC output are protected against the over voltage condition . 5-55-10 Hz 30 minutes 0.35 mm Maximum value can't be over 6.5V at 5V terminal and 15.5V at 12V, 4.3V at 3.3V.
  • Page 5 STRIDER ESSENTIAL SERIES Time Diagram Figure 1 12. Harmonics The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :2003 standard of class D, test at 230Vac 50Hz. AC ON AC OFF 13.Power Factor +5Vs The power supply with active power factor correction, and meet the EN61000-3-2 PS-ON/OFF standards, The power factor is greater than 0.9 at 230V/50Hz, Max.
  • Page 6 Signal back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.
