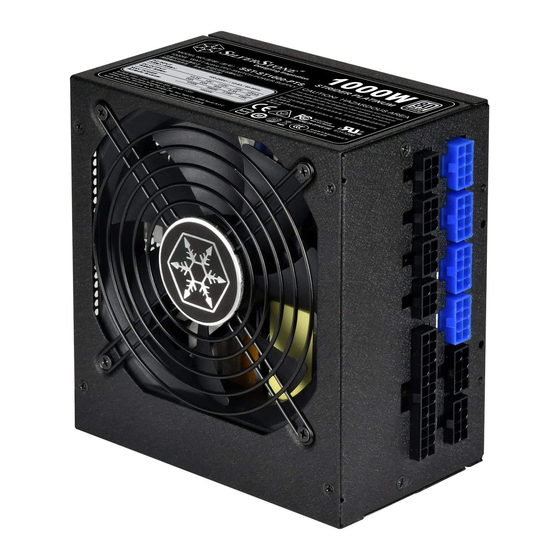

SilverStone SST-ST1200-G Specification

SilverStone SST-ST1200-G Specification

Strider gold series atx12v / eps 12v switching power supply with active pfc

Advertisement

Quick Links

STRIDER GOLD
ST1200-G / ST1000-G / ST85F-G / ST75F-G
October, 2010
The perfect balance of performance, efficiency, and quality
NO.G11212840

Advertisement

loading
Need help?

Need help?

Do you have a question about the SST-ST1200-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SilverStone SST-ST1200-G

  • Page 1 STRIDER GOLD ST1200-G / ST1000-G / ST85F-G / ST75F-G October, 2010 The perfect balance of performance, efficiency, and quality NO.G11212840...
  • Page 2 STRIDER GOLD SERIES SPECIFICATION 2. DC OUTPUT 2.1 DC voltage regulation STRIDER GOLD SERIES Parameter Range Unit SST-ST1200-G +3.3V +/-3% +3.20 +3.30 +3.40 Volts SST-ST1000-G +/-3% +4.85 +5.00 +5.15 Volts SST-ST85F-G +12V +/-3% +11.64 +12.00 +12.36 Volts SST-ST75F-G -12V +/-10%...
  • Page 3 STRIDER ST1000 STRIDER ST1000-NV STRIDER GOLD SERIES 1.Maximum continuous total DC output power should not exceed 850W. 2.3 Output Ripple 2.Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not 2.3.1 Ripple regulation exceed 150W. Parameter Ripple&Noise Unit 3.Maximum current for +12V outputs shall be 70A (840W). 4.Maximum peak total DC output power should not exceed 950W.
  • Page 4 STRIDER GOLD SERIES 2.5 Efficiency 3.2 Over-power protection Power supply efficiency typical 87%~90% at normal AC main voltage and 20%~100% The power supply will be shutdown and latch off when output power within 105~150% load on all outputs. of rated DC output. Note: Assurance machine can work at low voltage, full load won't damage machine.
  • Page 5 STRIDER GOLD SERIES 4. TIMING 6. SAFETY 4.1 Signal timing drawing 6.1 Underwriters Laboratory (UL) recognition. Figure 2. is a reference for signal timing for main power connector signals and rails. The power supply designed to meet UL 1950. 6.2 The power supply must bear the German Bauart Mark from TUV. 7.
  • Page 6 STRIDER GOLD SERIES 9.2 Connectors 4PIN peripheral connector (HDD) 4PIN floppy connector (FDD) M/B 24PIN connector Signal Signal Signal Signal Yellow +12V +5VDC Orange +3.3V +3.3V Orange Black Black Blue -12VDC +3.3V Orange Black Black Black Black +5VDC +12V Yellow Green PS-ON +5VDC...
