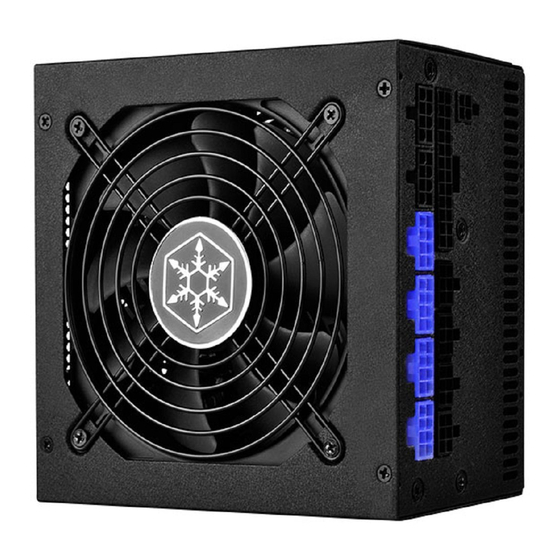

ST RI DER T I TAN I U M SERI ES
ST 8 0 F-T I / ST 7 0 F-T I / ST 6 0 F-T I
World's sm a lle st 8 0 PLU S T it a nium ,
full-m odula r AT X pow e r supplie s
High efficiency with 80 PLUS Titanium certification
Compact design with a depth of 150mm for easy integration
100% modular cables
o
24/7 continuous power output with 40C operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
All Japanese capacitors
Ultra silent 120mm fan with 18dBA minimum

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRIDER TITANIUM SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SilverStone STRIDER TITANIUM SERIES

Summary of Contents for SilverStone STRIDER TITANIUM SERIES

  • Page 1 ST RI DER T I TAN I U M SERI ES ST 8 0 F-T I / ST 7 0 F-T I / ST 6 0 F-T I World’s sm a lle st 8 0 PLU S T it a nium , full-m odula r AT X pow e r supplie s High efficiency with 80 PLUS Titanium certification Compact design with a depth of 150mm for easy integration...

  • Page 3: Table Of Contents

    The following manual and guides were carefully prepared by the SilverStone engineering team to help you maximize the potential of your SilverStone product. Please keep this manual for future reference when upgrading or performing maintenance on your system. A copy of this manual can also...

  • Page 4: Ac Input

    CI ICA I SilverStone Strider Titanium ST80F-TI ST70F-TI ST60F-TI ATX12V / EPS 12V Switching Power Supply With Active PFC 80Plus Titanium PS/2 This specification describes the requirements of 600,700,800 Watts switching power supply with an stretch ATX form-factor and EPS 12V, +5V standby voltage ,remote on/off control, full range line input capability and forced air cooling characteristics.

  • Page 5: Dc Output

    2. DC OUTPUT 2.1 DC voltage regulation Parameter Range Nom. Unit +3.3V +/-3％ +3.20 +3.30 +3.39 Volts +/-3％ +4.85 +5.00 +5.15 Volts +12V +/-3％ +11.64 +12.00 +12.36 Volts -12V +/-10％ -13.20 -12.00 -10.80 Volts +5VSB +/-5％ +4.75 +5.00 +5.25 Volts 2.2 Load ranges 2.2.1 ST60F-TI Load Range Parameter...
  • Page 6 2.3 Output Ripple 2.3.1 Ripple regulation Parameter Ripple&Noise Unit +3.3V mVp-p mVp-p +12V mVp-p -12V mVp-p +5VSB mVp-p 2.3.2 Definition The ripple voltage of the outputs shall be measured at the pins of the output connector when terminated in the load impedance specified in figure 1. Ripple and noise are measured at the connectors with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to simulate system loading.

  • Page 7: Protection

    2.6 Remote ON/OFF control When the logic level "PS-ON" is low, the DC outputs are to be enabled. When the logic level is high or open collector, the DC outputs are to be disabled. 3. PROTECTION 3.1 Over current protection The power supply shall have current limit to prevent the +3.3V,+5V,and +12V outputs from exceeding the values shown in the following Table.

  • Page 8: Timing

    3.5 Over voltage protection The over voltage sense circuitry and reference shall reside in packages that are separate and distinct from the regulator control circuity and reference. No single point fault shall be able to cause a sustained from the regulator control circuity and reference. No single point fault shall be able to cause a sustained as defined in Table.

  • Page 9: Environment

    (1)T3: Power good signal turn on delay time (100ms~500ms) (2)T2: Rise time(0.1~20ms) (3)T6: Hold up time (75%Load 16ms) 4.2 Hold up time When the power loss its input power, it shall maintain 16ms in regulation limit at normal input voltage and 75% full load (AC:115V/60Hz or 230V/50Hz) 5.

  • Page 10: Mtbf

    7.9 EN61000-3-2：2006+A2：2009 harmonic current emissions. If applicable to sales in Europe, the power supply shall meet the requirements of EN 61000-3-2 Class D and the Guidelines for the Suppression of Harmonics in Appliances and General Use Equipment Class D for harmonic line current content at full-rated power. 7.10 EN55022：2010/AC：2011 Class B Radio interference (CISPR 22).
  • Page 12 G11226000...
