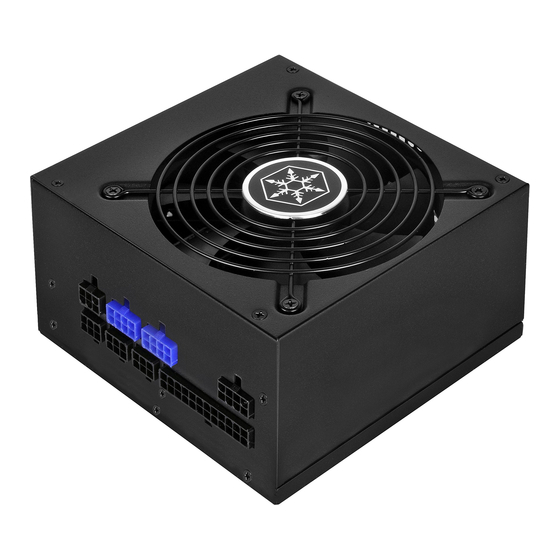

ST RI DER GOLD SERI ES
ST 6 5 F-G / ST 5 5 F-G
T he pe rfe c t ba la nc e of pe rfor m a nc e , e ffie ncy, a nd qua lit y
Compact design with a depth of 140mm for easy integration
80Plus Gold certification with higher efficiency 87%~90% at 20%~100% loading
100% modular cables
O
lssue date: June, 2012
24/7 continuous power output with 40 C operating temperature
NO. G11216330
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Silent running 120mm fan with 18dBA minimum

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST55F-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SilverStone ST55F-G

Summary of Contents for SilverStone ST55F-G

  • Page 1 ST RI DER GOLD SERI ES ST 6 5 F-G / ST 5 5 F-G T he pe rfe c t ba la nc e of pe rfor m a nc e , e ffie ncy, a nd qua lit y Compact design with a depth of 140mm for easy integration 80Plus Gold certification with higher efficiency 87%~90% at 20%~100% loading 100% modular cables...
  • Page 2 AC voltage, during a single cycle AC dropout condition, during repetitive ON/OFF cycling of AC, and over the specified temperature range SilverStone Strider Gold (Top). The peak inrush current shall be less than the ratings of its critical components ST65F-G (including input fuse, bulk rectifiers, and surge limiting device).
  • Page 3 ST 6 5 F-G / ST 5 5 F-G 2.2.2: (ST65F-G) 2.3.3 Ripple voltage test circuit Parameter Nom. Peak Unit Power Supply V o u t 　 +3.3V Amps AC H o t 1 0 u F 0 .1 u F L o a d V re tu rn 　...
  • Page 4 ST 6 5 F-G / ST 5 5 F-G ST55F-G 3.6 Short circuit An output short circuit is defined as any output impedance of less than 0.1 ohms. Voltage Over Current Limit (Iout limit) The power supply shall shut down and latch off for shorting the +3.3 VDC, +5 VDC, +12V 50A minimum;...
  • Page 5 ST 6 5 F-G / ST 5 5 F-G 4.2 Hold up time 7.6 EN55024 class B radio interference (CISPR 22) When the power loss its input power, it shall maintain 16ms in regulation limit at normal 7.7 FCC part 15, subpart J class B 115VAC operation. input voltage and 80% full load (AC:115V/60Hz or 230V/50Hz) 8 .
  • Page 6 Signal back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.
