STRIDER PLATINUM SERIES
SST-ST1200-PTS
SST-ST1000-PTS

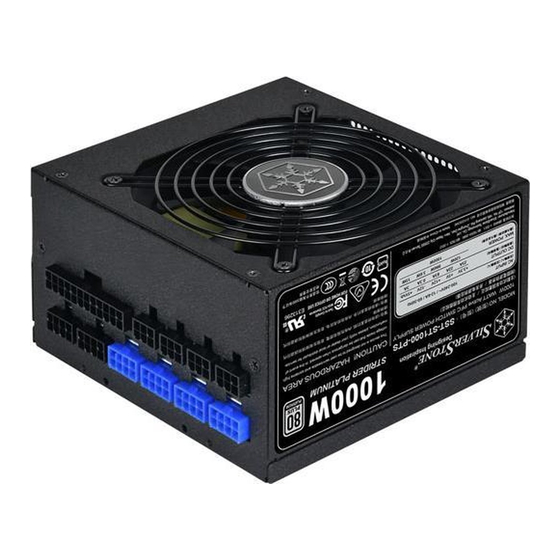

The world's smallest kilowatt-level ATX power supply
Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Built-in silent & durable hybrid ceramic bearing (HYB) fan
FF122 magnetized fan filter included
Advertisement
Related Manuals for SilverStone STRIDER PLATINUM SERIES
Summary of Contents for SilverStone STRIDER PLATINUM SERIES
- Page 1 STRIDER PLATINUM SERIES SST-ST1200-PTS SST-ST1000-PTS The world’s smallest kilowatt-level ATX power supply Compact design with a depth of 140mm for easy integration High efficiency with 80 PLUS Platinum certification 100% modular cables 24/7 continuous power output with 40℃ operating temperature Class-leading single +12V rail Strict ±3% voltage regulation and low ripple &...
-
Page 2: Specification
SPECIFICATION SilverStone Strider Platinum SST-ST1200-PTS SST-ST1000-PTS ATX12V / EPS 12V Switching Power Supply With Active PFC 80Plus Platinum PS/2 This specification describes the requirements of 1000W, 1200Watts switching power supply with an stretch ATX form-factor and EPS 12V, +5V standby voltage,remote on/off control,full range line input capability and forced air cooling characteristics. - Page 3 The power supply must meet inrush requirements for any rated AC voltage, during turn on at any phase of AC voltage, during a single cycle AC dropout condition, during repetitive ON/OFF cycling of AC, and over the specified temperature range (Top). The peak inrush current shall be less than the ratings of its critical components (including input fuse, bulk rectifiers, and surge limiting device).
- Page 4 2.2.2:(1200 Watts Load Range) Parameter Min(optional) Nom. Peak Unit +3.3V Amps Amps +12V 0.15 Amps -12V Amps +5VSB Amps 1.Maximum c.ontinuous combined load on +3.3V and +5V outputs shall not exceed 120W. 2.Maximum continuous total DC output power should not exceed 1200W. 3.Peak DC output power should not exceed 1300W for 12 second.
- Page 5 Power Supply V out AC Hot 10uF 0.1uF Load V return AC Neutral AC Ground Scope Figure 1. Ripple voltage test circuit 2.4 Overshoot Any overshoot at turn on or turn off shall be less 10% of the norminal voltage value,all outputs shall be within the regulation limit of section 2.0 before issuing the power good signal of section 5.0.
- Page 6 3.0 PROTECTION 3.1 Over current protection The power supply shall have current limit to prevent the +3.3V,+5V,and +12V outputs from exceeding the values shown in the following Table.If the current limits are exceded the power supply shall shutdown and latch off. Voltage Over Current Limit (Iout limit) +12V(1000W)
- Page 7 3.6 Short circuit An output short circuit is defined as any output impedance of less than 0.1 ohms.The power supply shall shut down and latch off for shorting the +3.3 VDC,+5 VDC,or+12VDC rails to return or any other rail. Shorts between main output rails and +5VSB shall not cause any damage to the power supply. The power supply shall either shut down and latch off or fold back for shorting the negative rails.+5VSB must be capable of being shorted indefinitely,but when the short is removed, the power supply shall recover automatically or by cycling PS_ON#.The power supply shall be capable of withstanding a...
-
Page 8: Electromagnetic Compatibility (Emc)
5. ENVIRONMENT 5.1 Operation Temperature 0 to 40℃ Relative Humidity 10 to 90%, non-condensing 5.2 Shipping and Storage Temperature -20 to 85℃ Relative Humidity 5 to 95%, non-condensing 5.3 Altitude Operating 2000m Storage 3000m 6. SAFETY 6.1 Underwriters Laboratory (UL) recognition. The power supply designed to meet UL 60950. -
Page 9: Mechanical Requirements
Le courant nominal maximum d'un périphérique (Molex) ou d'un connecteur SATA est de 5 A, ce qui correspond à 60 W (+12 V x 5 A) ou 25 W (+5 V x 5 A). Veuillez vous assurer que les appareils connectés fonctionnent dans ces limites. La garantie de SilverStone ne couvre pas les dommages ou les dysfonctionnements résultant d'utilisations dépassant ces connecteurs et leurs câbles associés. - Page 10 La corrente massima del connettore a 24 pin per scheda madre per i suoi due pin di metallo a +12 V è di 5 A ciascuno, per un totale di 120 W (+12 V x 5 A x 2). Assicurarsi che i dispositivi a +12 V collegati alla scheda madre funzionino con questi limiti. La garanzia di SilverStone non copre danni o malfunzionamenti derivanti da uso eccessivo di questi connettori e dei relativi cavi.
- Page 11 SilverStone ไม่ ค ุ ้ ม ครองความเสี ย หาย หรื อ อาการเสี ย ที ่ เ ป็ น ผลจากการใช้ เ กิ น ขี ด จำกั ด ของขั ้ ว ต่ อ และสายเคเบิ ล ที ่ ใ ช้ เ ชื ่ อ...
- Page 12 本表格依据SJ/T 11364的规定编制 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 ×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NO.
