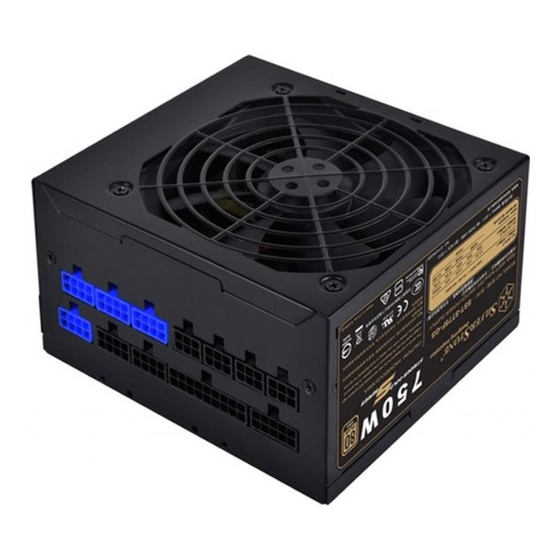

STRIDER GOLD S SERIES
ST75F-GS
ST65F-G
ST55F-G
World's smallest, full-modular ATX power supplies
Compact design with a depth of 140mm for easy integration
80 PLUS Gold certification
100% modular cables
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Silent running 120mm fan with 18dBA minimum
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SilverStone STRIDER GOLD S Series
Summary of Contents for SilverStone STRIDER GOLD S Series
- Page 1 STRIDER GOLD S SERIES ST75F-GS ST65F-G ST55F-G World’s smallest, full-modular ATX power supplies Compact design with a depth of 140mm for easy integration 80 PLUS Gold certification 100% modular cables 24/7 continuous power output with 40℃ operating temperature Class-leading single +12V rail Strict ±3% voltage regulation and low ripple &...
-
Page 2: Table Of Contents
The following manual and guides were carefully prepared by the SilverStone engineering team to help you maximize the potential of your SilverStone product. Please keep this manual for future reference when upgrading or performing maintenance on your system. A copy of this manual can also... -
Page 3: General
SPECIFICATION SilverStone Strider Gold ST75F-GS ST65F-G ST55F-G ATX12V / EPS 12V Switching Power Supply With Active PFC 80 Plus Gold PS/2 1. General 1.1 Scope This specification defines the performance characteristics of a single phase 750, 650, 550 watts, 5 output power supply. This specification also defines worldwide safety and electromagnetic compatibility requirements for the power supply which is intended for use in computer products. -
Page 4: Output Characteristics
2.3 Max. Input AC Current ST75F-GS Max. Input Current Measuring Range 90 - 264 Vrms ST65F-G Max. Input Current Measuring Range 90 - 264 Vrms ST75F-GS Max. Input Current Measuring Range 90 - 264 Vrms 2.4 Inrush Current The power supply must meet inrush requirements for any rated AC voltage, during turn on at any phase of AC voltage, during a single cycle AC dropout condition, during repetitive ON/OFF cycling of AC, and over the specified temperature range. - Page 5 Maximum continuous total DC output power should not exceed750W. Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not exceed 120W. Maximum combined load on +12V outputs shall not exceed 750W. NOTE: Noise test should be measured with 20 MHz bandwidth frequency oscilloscope. The output terminal shall add a tantalum capacitor of 10uF in parallel with a ceramic capacitor of 0.1uF.
- Page 6 3.2 Remote On/Off Controlled mode The PSON# signal is required to remotely turn on/off the power supply, PSON# is an active low signal that turns on the output power rails. When this is not pulled low by the system, or left open, the outputs (except the +5VSB) turn off.
- Page 7 3.5 Hold-up Time DC +5V output maintains at least 16mS after power off which hold within full load under 230V/50Hz condition. 3.6 5VSB 5VSB is requierd for the implementation of PS-ON described above. 5VSB is a standby voltage that may be used to power circuits that require power input during the powered-down state of all power rails.
-
Page 8: Protection
4. Protection 4.1 Input Protection In primary circuit of the power supply , a protected fuse is inserted. Only internal fault of the power supply will cause the fuse blown. Any overload or short circuit at DC output will keep from fuse brown or fire hazard. -
Page 9: Start Stability
5. Start Stability 5.1 No Load Start When power is applied to ST75F-GS, ST65F-G, ST55F-G with no load connected or under minimum load connected, neither damage to power supply nor hazards to users will occur. 5.2 Cold Start The power supply shall operate properly when first applied at normal input voltage and or so maximum load after 4 hours storage in 0 C environment. -
Page 10: Conducted Emi
7. Conducted EMI CE,FCC 8. Product Safety 8.1 Safety Requirement CUL, CB,TUV 8.2 Leakage Current The AC leakage current is less than 3.5mA when the power supply connect to 264Vac/50Hz . 8.3 Insulation Resistance The insulation resistance should be not less than 30M ohm after applying of 500VDC for 1 minute. 8.4 Dielectric Voltage Withstand The power supply shall withstand for 1 minute without breakdown the application of a 60Hz 1500V AC voltage applied between both input line and chassis (20mA DC cut-off current). -
Page 11: Mtbf
* T1 : Turn on time ( 2 sec. Max.) * T2 : Rise time ( ≦ 20mS Max.) * T3 : Power good turn on delay time ( 100 < T3 < 500 mS ) * T4 : Switch on time (0.5 sec. Max.) * T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF * T6 : Power hold-on time ( 16 mS Min.) * Power on-off cycle :... - Page 12 NO. G1122...
