2-1-1 Paper feeding system

The paper feeding system picks up paper from the cassette, MP tray, or if installed, the paper feeder, feeds it in the
printer, and delivers in the output tray. Paper is fed at the precise timing in synchronization with data processing. The
paper feeding system finally delivers the printed page to either the face-down or face-up tray as manipulated by the
user.

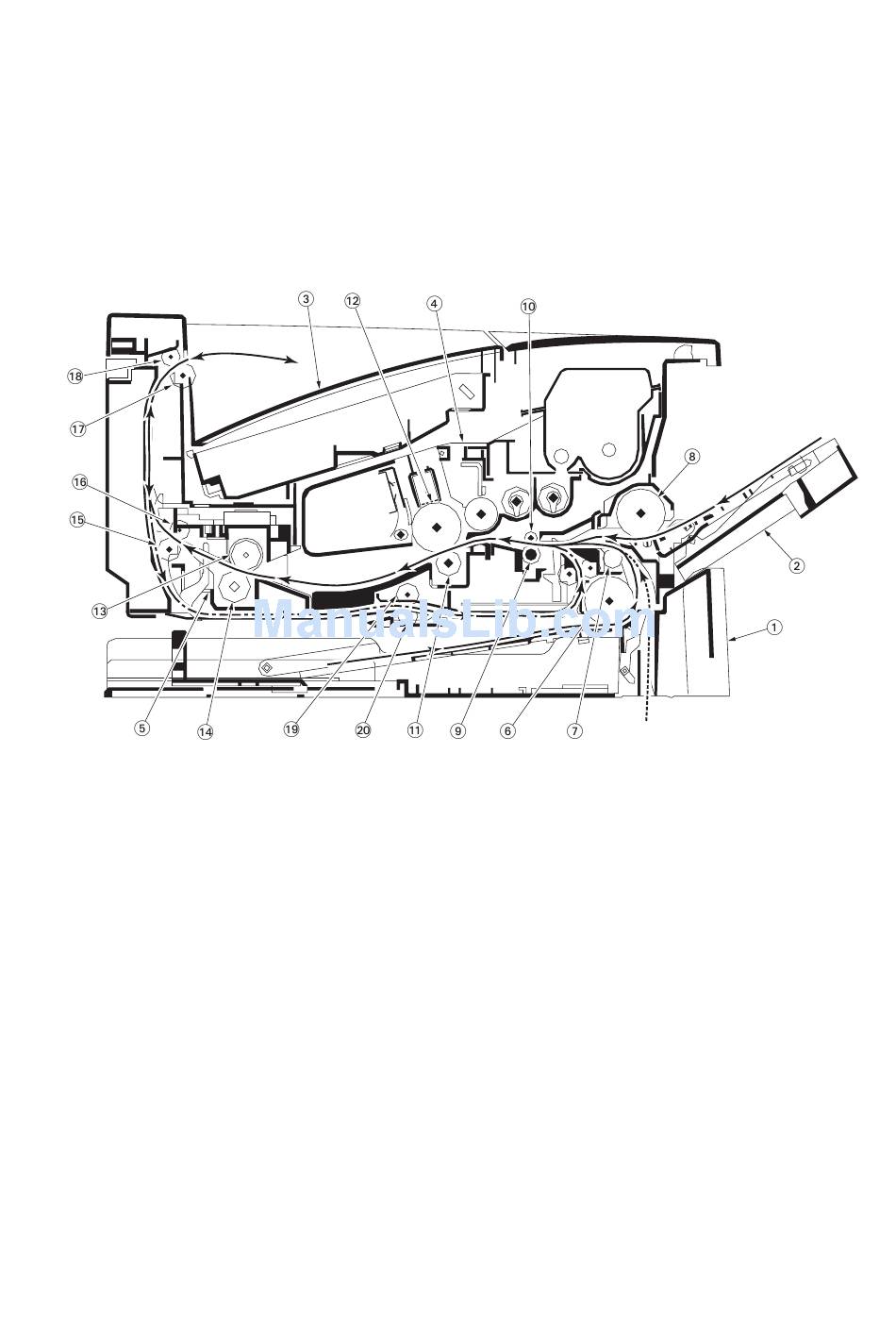

The figure below shows the components in the paper feeding system and the paths through which the paper travels.
The sensors, clutches, etc., are described in the following pages.
10. Upper registration roller
Figure 2-1-1 Paper feeding path
1. Cassette
2. MP tray
3. Output tray
4. Process unit
5. Fuser unit
6. Feed roller
7. Feed pulley
8. MP feed roller
9. Lower registration roller
11. Transfer roller
12. Drum
13. Heat roller
14. Press roller
15. Lower exit roller
16. Exit pulley
17. Upper exit roller
18. Exit pulley
19. Conveying roller
20. Conveying pulley
