Kyocera FS-1020D Installation Manual

Page printer
Hide thumbs Also See for FS-1020D:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operating Manual

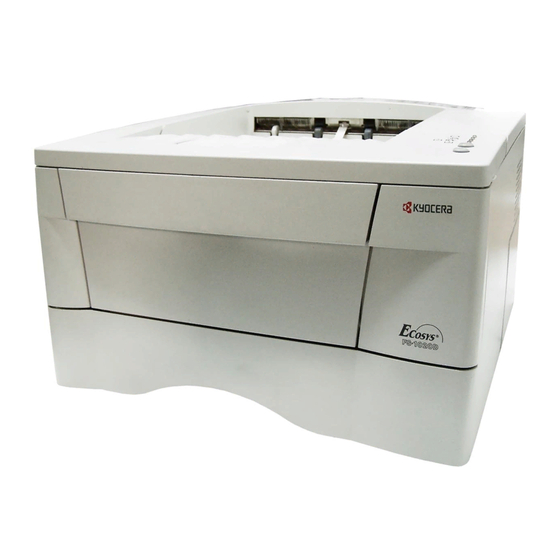

FS-1020D
Page Printer
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-1020D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kyocera FS-1020D

Summary of Contents for Kyocera FS-1020D

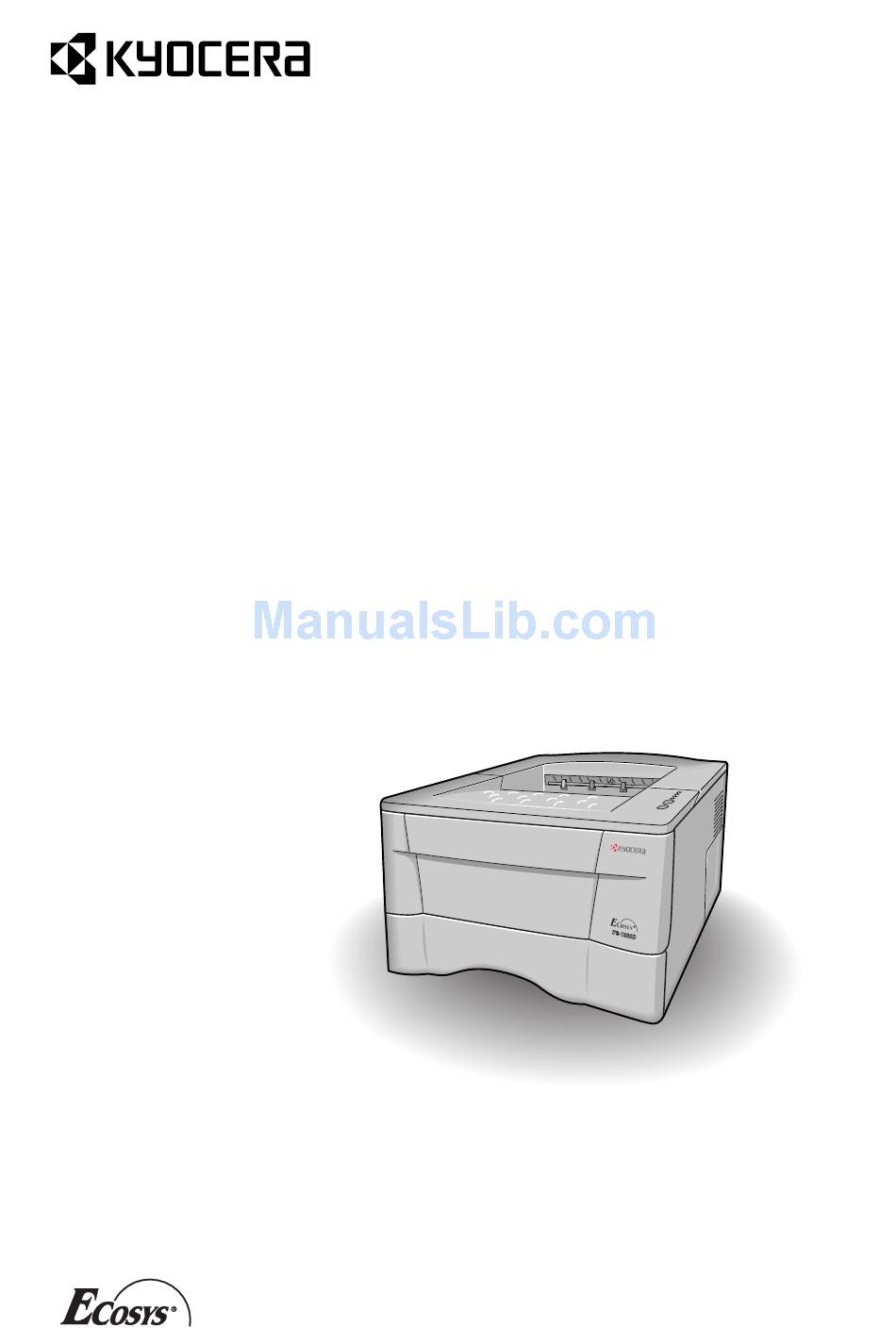

  • Page 1 FS-1020D Page Printer Installation Guide...

  • Page 2: Table Of Contents

    Kyocera Corporation is prohibited. Any copies made of all or part of this manual, any copyrightable subject must contain the same copyright notice as the material from which the copy- ing is done.

  • Page 3: Step

    STEP Unpacking Carefully remove the printer and other items from the box. Check that nothing is miss- ing against the list of shipped components below. List of Shipped Components Printer Toner Container [TK-18] (B) Printer Cleaning Cloth (A) Power Cord (D) CD-ROMs (A) Installation Guide [this booklet] (A) Extension Tray (C)
  • Page 4 Removing Shipping Material Remove the tape on the rear side of the printer, and remove the protective packing from the paper cassette. Tape Protective Packing...

  • Page 5: Step

    STEP Positioning the Printer Make sure that the place of installation meets the following requirements: Clearance Be sure to secure enough space 30 cm (11-13/16 inches) around the printer. Prolonged use without sufficient clearance 40 cm (15-3/4 may cause heat to build up 25 cm (9-7/8 inches) within the printer, resulting in...

  • Page 6: Step

    STEP Installing the Toner Container Before you can use the printer for the first time, you must set up the printer by installing the toner container and interfacing with the computer. Open the printer top cover all the way. Confirm that the lock lever is in the release (UNLOCK) position.
  • Page 7 Carefully remove the protective seal. Install the toner container into the printer. Push firmly on the top of the toner con- tainer at the positions marked PUSH HERE.
  • Page 8 Push the lock lever to the lock (LOCK) position. Close the top cover. To remove the toner container Pull the lock lever #1 to the release (UNLOCK) position, pull the lock lever #2, then gently remove the toner con- Lock Lever #2 tainer.

  • Page 9: Step

    STEP Connecting the Printer to the Computer There are various ways of connecting the printer to the computer, such as through the parallel interface connector, through the USB (Universal Serial Bus) interface connec- tor, through the optional serial interface board kit (IB-11) or through the optional net- work interface board.

  • Page 10: Parallel Interface Connection

    Parallel Interface Connection Plug one end of the printer cable (not included) into the parallel interface con- nector on the rear of the printer. Clips • Use a parallel printer cable that complies with the IEEE1284 standards. • The printer will work best if it is installed near the computer.

  • Page 11: Step

    STEP STEP Connecting the Power Cord This section describes the procedure for connecting the power cable and various cautions. Notes on Power Supply • Install the printer near an AC wall outlet, preferably one that can be used for the printer alone. •...

  • Page 12: Step

    Adding Paper to the Paper Cassette and STEP MP Tray The paper cassette can accommodate A5 to Legal size paper and can hold approxi- mately 250 sheets. The Multi-Purpose tray can accommodate the various paper sizes and can hold approximately 50 sheets of paper. The following paper weights can be used with the printer.
  • Page 13 Pull the paper cassette all the way out of the printer. Adjust the position of the paper stopper located at the rear of the paper cassette. Release Button Press in the release button and slide the Paper Stopper stopper to the desired paper size. When shipped from the factory, the paper cas- sette is set to either A4 or Letter size.
  • Page 14 Fan the media (paper/transpar- encies), then tap it on a level surface to avoid media jams or skewed printing. Slide the paper into the paper cassette. Do not load more paper than will Load Limit fit under the load limits on the top of the paper guides.
  • Page 15 To use large size paper Be sure to open the paper stopper Paper Stopper when printing onto A4 or Letter size paper. When printing onto paper of a size larger than A4 or Letter, be sure to open the paper stopper, and then open Subtray the subtray as well.
  • Page 16 Adjusting the paper stopper for Folio and Oficio II sizes Perform the following procedure in order to adjust the paper stopper when loading Folio and Oficio II size paper into the paper cassette. Remove the stopper extension lock from the paper stopper. Stopper Extension Lock...
  • Page 17 Multi-Purpose (MP) tray Pull the MP tray towards you until it stops. Pull out the subtray and unfold the flap. Subtray Flap Adjust the position of the paper guides on the MP tray. Standard paper sizes are attached to the MP tray. For stan- dard paper sizes, slide the guides to the position marked correspondingly.
  • Page 18 Envelopes Envelopes should be fed in the face-up position, right edge first. Test a sample envelope on the printer and check that printing quality is sat- isfactory before purchasing. Some types of envelopes are not suit- able for printing. For details on suit- able types of envelopes, see the Operation Guide contained as an elec- tronic file in the CD-ROM supplied...

  • Page 19: Step

    STEP Printing a Status Page To test the printer, print a status page indicating factory settings. Turn on the printer’s power switch. Upon turning on the power, the printer’s 4 indicators flash in sequence until printer initialization is complete, then the indicator ( [on line]) lights steadily.

  • Page 20: Correcting A Paper Jam

    Correcting a Paper Jam If a paper jam occurs while you are printing, remove the jammed paper as described below. After you have removed the jammed paper, open and close the top cover once. Jam at the Face-down Tray and the Rear Cover Open the rear cover and remove the jammed paper as shown in the figure.
  • Page 21 Pull the paper cassette all the way out of the printer. Paper Cassette Open the duplexer’s rear cover and remove any jammed paper. Duplexer’s Rear Cover Open the duplexer’s front cover and remove any jammed paper. Duplexer’s Front Cover...
  • Page 22 Jam Inside the Printer Open the printer’s top cover. Top cover Open the printer’s front cover. Front Cover Lift the process unit together with the toner container out of the printer. Process Unit Remove the jammed paper. When pulling the paper, pull gently so as not to tear it.
  • Page 23 Jam at the MP Tray Leaving any paper that may be jammed there, remove the rest of the paper from the MP tray. Do not try to forcefully pull out paper that has already been fed partially in to the MP tray. Instead, proceed to the next step.
  • Page 24 Lift the process unit, together with the toner container, out of the printer. Process unit Use the following procedure that corre- sponds to the status of the jammed paper, in order to remove that paper. (A) If the leading edge of the jammed Registration paper has been fed further into the Roller(metal)

  • Page 25: Safety Information

    ■ Caution to user Any modification without prior permission may cause harmful interference. If any modification/change is introduced to this equipment without prior permission, Kyocera Mita as the manufacturer cannot guarantee compliance with FCC rules. To use equipment which does not comply with FCC rules is prohibited.

  • Page 26: Cdrh Regulations

    DANGER: INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ■ Caution labels Label inside the printer (Laser radiation warning) (European/Asian/Pacific countries) (U.S.A./Canada) Label on the printer’s rear panel...

  • Page 27: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read all of these instructions and save these instructions for later use. 2. Unplug this product from the wall outlet before cleaning. 3. Do not use this product near water. 4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
  • Page 28 FS-1020D (as tested with the enhancement optional unit: PF-17 and IB-21E) Description of device: The model FS-1020D is a 20-ppm, A4 size plain paper supporting page printer, utilizing laser, dry toner, etc. The printer can be equipped with the optional paper feeder model PF-17.
  • Page 29 Declaration of Conformity (U.S.A.) Model Number: Page Printer FS-1020D (as tested with enhancement optional units: PF-17, IB-21E.) Trade Name: Kyocera Mita Responsible Party: Kyocera Mita America Inc. Address: 225 Sand Road PO Box 40008 Fairfield, New Jersey 07004-0008, U.S.A. Telephone number:...
  • Page 30 ® NERGY As an E Partner, we have determined that this product meets the NERGY guidelines for energy efficiency. NERGY The basic objective of the E Program is to reduce environmental NERGY pollution by encouraging the manufacture and sale of equipment that uses energy more efficiently.
  • Page 31 U.S. registered mark. All other brand and product names are registered NERGY trademarks or trademarks of their respective companies. This Kyocera Mita page printer uses PeerlessPrintXL to provide the HP LaserJet compatible PCL 6 language emulation. PeerlessPrintXL is a trademark of The Peerless Group, Redondo Beach, CA 90278, U.S.A.
  • Page 32 3. Limitation of Remedies IBM’s entire liability under this license is the following; 1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of: a) the equivalent of U.S.$25,000 in your local currency;...
  • Page 33 This page intentionally left blank.
  • Page 34 This page intentionally left blank.
  • Page 36 Operating Keys and Indicators For details on operating procedures, see the FS-1020D Operation Guide contained as an electronic file in the CD-ROM supplied with the printer. Number Name Function Ready indicator Indicates whether the printer is on-line or off-line. Data indicator Indicates that the printer is receiving data.
