Summary of Contents for TYROLIT Hydrostress HYCON HRS 5806

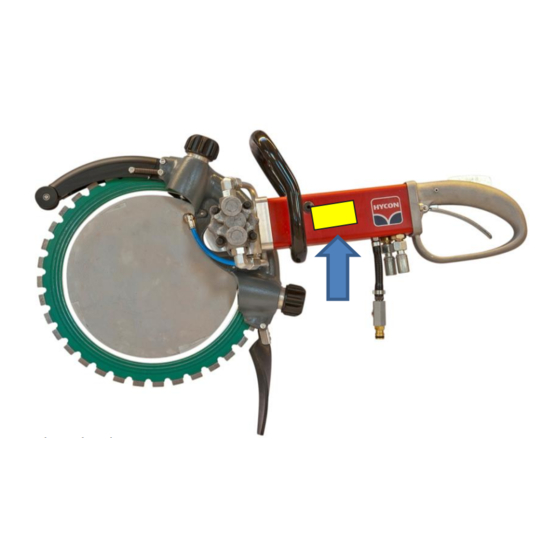

- Page 1 HYCON HRS RING SAW Operating Manual www.tyrolit.com.au info.au@tyrolit.com 1300 TYROLIT (897 654) A Company within the SWAROVSKI Group...
- Page 2 Important Clean after use DURING OPERATION WATER AND SLURRY CAN GET INTO THE HOUSING WHERE THE ROLLERS ARE – THEREFORE TO ENSURE YOUR RING SAW WILL WORK EVERY DAY TO YOUR SATISFACTION IT IS VITAL THAT YOU: * LET THE RINGBLADE SPIN FREE IN THE AIR FOR MINIMUM 30 SECONDS AFTER EACH USE >...
- Page 3 HYCON A/S Juelstrupparken 11 DK-9530 Støvring TYROLIT Australia Denmark 9 Tarlington Place Smithfiels, NSW 2164 Tel: +45 9647 5200 Fax: +45 9647 5201 P:1300 TYROLIT (897 654) F:1300 235 689 Mail hycon@hycon.dk E: info.au@tyrolit.com...
- Page 4 HYCON HRS Ring Saw Prior to Operation Table of Content We thank you for choosing a HYCON HRS ring saw. Prior to Operation ..............1 To ensure smooth operation and long- lasting performance of your new ring Specifications ................
-
Page 5: Specifications
HYCON HRS Ring Saw Specifications HRS Ring Saw Safety Precautions Weight w/o hoses 10.9 kg and disc Read the HRS ring saw and power source operating manuals prior to use. • Oil flow 30-40 l.p.m. Only use the HRS ring saw in accordance with the local working regulations •... -
Page 6: Safety Precautions
HYCON HRS Ring Saw Never use the HRS ring saw close to • electric cables. Prior to operation, check whether there are hidden or buried cables. Never wear loose clothing as it may get • entangled in the moving parts of the saw. -
Page 7: Hrs Hydraulic Ring Saw Overall Dimensions
HYCON HRS Ring Saw HRS Hydraulic Ring Saw Overall Dimensions HYCON A/S • Juelstrupparken 11 • DK-9530 Støvring • Tel +45 9647 5200... -
Page 8: Cold Weather Operation
HYCON HRS Ring Saw Operation CONNECTION TO HYDRAULIC POWER SOURCES Be aware that your clothes or limbs have contact to • CHECK HYDRAULIC POWER SOURCE the moving parts on the ring saw or power. Using a calibrated flow meter and pressure gauge, Always keep a safe distance to the moving parts. -
Page 9: Starting Instructions
HYCON HRS Ring Saw Starting Instructions Service and Maintenance Note: the chart is based on daily use Mount a diamond disc. See settings and adjustment • page 8. Connect hoses – clean couplings before connection. Service/Maintenance Daily Weekly Yearly • Connect water supply. -
Page 10: Use Of Hydraulic Power Sources
HYCON HRS Ring Saw Use of Hydraulic Power Sources Useful Information regarding the Use of HRS Ring Saw The HRS ring saw can be connected to various hydraulic power sources, such as excavators, trucks, loaders, tractors The HRS ring saw is a compact tool with great performance. etc., and of course HYCON powerpacks, the design of which There are no other ring saws on the market with higher ensures your new HRS ring saw the absolute best working... -
Page 11: Replacement/Adjustment Of Disc
HYCON HRS Ring Saw Replacement/Adjustment of Disc Adjustment of Support Rollers Loosening: Loosening: Use a ring spanner size 13 mm to loosen the hexagon nuts Loosen the tightening knob completely by turning it counter and then retighten them slightly. Turn the adjustment screw clockwise, thereby loosening the disc from the friction roller. -
Page 12: Dismounting Of Front Cover And Water Blade
HYCON HRS Ring Saw Dismounting of Front Cover and Replacement of Drive Wheel Water Blade Use a hex head wrench size 4 mm to loosen the 2 hexagon Use a hex head wrench size 4 m to loosen the 3 screws. screws. -
Page 13: Replacement Of Disc
HYCON HRS Ring Saw Replacement of Disc Replacement of Support and Guide Rollers Use a ring spanner size 17 mm to hold on to the hexagon washer, and use a hex head wrench size 4 mm to loosen the screws. The support rollers and the guide rollers can now be removed. -
Page 14: Trouble Shooting
HYCON HRS Ring Saw Trouble Shooting Problem Probable Cause Disc does not rotate Roller knobs not tightened fully Disc not fitted correctly on guide rollers Rollers tensioned too much Possible faulty hose connection to the hydraulic system Possible faulty hose connection to the drive source or other hydraulic problem Disc rotates too slowly Roller knobs not fully tightened... - Page 15 HYCON HRS Ring Saw Warranty Terms We grant 12 months warranty from the first date of operation – however, not more than 18 months from the date of delivery. The warranty applies to faults that can be related to construction and production errors. Faults caused by incorrect operation, incorrect handling, lack of maintenance or the like, will not be accepted as warranty.
