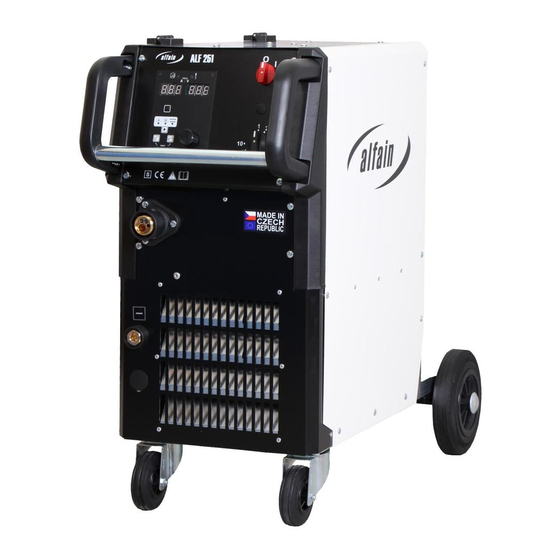

- Page 1 MIG/MAG WELDING MACHINES ALF 251 aXe ALF 261 aXe ALF 280 aXe ALF 320 aXe ALF 400 aXe MINOR2 - MAJOR – SYNERGY BASIC INSTRUCTION MANUAL ALFA IN a.s. © www.alfain.eu Version 1...
-
Page 2: Table Of Contents
CONDITIONS OF USE ................8 TECHNICAL DATA ................8 ACCESSORIES................... 10 DESCRIPTION OF THE APPLIANCE ..........11 GETTING STARTED ................18 WELDING.................... 22 ROUTINE MAINTENANCE & INSPECTION........27 10. STATEMENT OF WARRANTY............28 11. DISPOSAL................... 28 ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
- 3 - INTRODUCTION Congratulations on your new ALFA IN product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This Operating Manual has been designed to instruct you on the correct use and operation of your ALFA IN product. -
Page 4: Safety Instructions And Warnings
Keep your head out of the fume plume. • Use an air-supplied respirator if ventilation is not adequate to remove all fumes and gases. • The kinds of fumes and gases from the plasma arc depend on the kind of ALFA IN a.s. © www.alfain.eu... - Page 5 The operator must be insulated from the metal components connected to the return wire. • The earthing of the piece being worked could increase the risk of injury to the operator. • EN 60974-1 Standard: Open-circuit voltage. During the operation of the ALFA IN a.s. © www.alfain.eu...
- Page 6 This machine conforms to EN 60974-10 standard. However, the electromagnetic emissions generated could prove not be compatible with the maximum permitted levels for some classes of electrical equipment, such as the following: • Domestic electronic appliances (radios, TVs, videos, telephones, burglar alarms, etc.). ALFA IN a.s. © www.alfain.eu...
- Page 7 • Never aim the torch against the eyes, body or other person. ALFA IN a.s. © www.alfain.eu...
-
Page 8: Conditions Of Use
(DC=60%) I2 /U2 Welding current x=30% x=25% (DC=x%) I2 /U2 250/26,5 260/27,0 Voltage steps Insulation class Protection IP 23S IP 23S Standards EN 60 974-1 EN 60 974-1 Dimensions (w x l x h) 500x868x806 500x868x806 compact ALFA IN a.s. © www.alfain.eu... - Page 9 1 - 19 1 - 19 1 - 19 Spool diameter Spool weight Wire Feed Unit PS4 GAS aXe Wire speed m/min 1 - 19 Input voltage U V/Hz 24/1~50 Input current I Welding current I (DZ=100%) ALFA IN a.s. © www.alfain.eu...
-
Page 10: Accessories
• Feed rolls 0,6-0,8 1,0-1,2 1,4-1,6 for carbon steels, aluminium, flux core wires • Torches with UP-DOWN remote control • Welding torches (see the table below) Torch type Cooling Welder MB 24KD ALF 251-280 aXe MB 36KD ALF 320 aXe MB 36KD ALF 400 aXe ALFA IN a.s. © www.alfain.eu... -
Page 11: Description Of The Appliance
- 11 - DESCRIPTION OF THE APPLIANCE MAIN PARTS Fig. 1 - Main parts of ALF compact aXe Fig. 2 - Main parts of ALF compact aXe ALFA IN a.s. © www.alfain.eu... - Page 12 - 12 - Fig. 3 – Main parts of ALF Separate aXe Fig. 4 - Main parts of ALF Separate aXe ON / OFF Switch Switch coarse Switch smooth ALFA IN a.s. © www.alfain.eu...
- Page 13 Cable Bundle Inlet Feeder Cable Bundle Cable Bundle Generator LED ON Indicator Gas heater connector CONTROL PANEL - OVERVIEW Fig. 5 - ALF 400 aXe control panel PCB - encoder ON / OFF Switch Switch coarse Switch smooth ALFA IN a.s. © www.alfain.eu...
- Page 14 • default RESET (together with button X1) Button • Switches between 2S or 4S, • Press more than 3s will initiate spot or interval mode • Enters secondary parameters (together with button X5) Green LED 2 Stroke ALFA IN a.s. © www.alfain.eu...
- Page 15 Position of the smooth switch (just SYNERGY) Position of the choke (just SYNERGY) LED – The mode of selecting the program is active (just SYNERGY). Green LED – lights if on the display X8 is displayed material thickness, (just SYNERGY). ALFA IN a.s. © www.alfain.eu...
- Page 16 (just SYNERGY) • Selects program No (just SYNERGY) • Sets secondary parameters BASIC CONTROL PANEL Fig. 7 – BASIC control panel On/Off Switch Switch Coarse Switch Fine Wire speed Spot time Interval time LED ON ALFA IN a.s. © www.alfain.eu...
- Page 17 Pos. Description Fixing shaft Pressure arm Liner- Feeder EURO connector Roll, Plastic cup PS 2(W) PS 4(W) 2-rolls 4-rolls a = 22 mm a = 22 mm b = 30 mm b = 30 mm ALFA IN a.s. © www.alfain.eu...
-
Page 18: Getting Started
• Connect the quick connector C1 into C3 or C4 (according the welding current). • Connect the earthing clamp C2 to the welding piece • In case your appliance is a model with separate wire feeder connect the ALFA IN a.s. © www.alfain.eu... - Page 19 E1 into vertical position. • Adjust the pressure nut that way that it provides constant movement of wire but it does not deform wire. INSERTING THE WELDING WIRE INTO THE WELDING TORCH ALFA IN a.s. © www.alfain.eu...
- Page 20 CHANGING THE WIRE FEEDER ROLL • Every wire feeding roll in ALFA IN machines can be used for two different diameters of welding wire – the rolls have two grooves. • When the machine is equipped with two roll wire feeder move the lever E1 to the right (2 roll feeder)/ forward (4 roll feeder).
- Page 21 Fig. 14 – Gas fitting F1 Gas Cylinder F2 Cylinder Valve F3 Gas heater connector F4 Pressure Reducer F5 High Pressure Manometer F6 Low Pressure Manometer ALFA IN a.s. © www.alfain.eu...
-
Page 22: Welding
To select the current (that is linked to the wire speed) use the encoder V1. WELDING MODES Machines works in four modes: • continuous two stroke (2T) • continuous four stroke (4T) • spot welding • interval welding ALFA IN a.s. © www.alfain.eu... - Page 23 FOUR STROKE BASIC Set the potentiometers V7 into any position 1 – 10. Potentiometer V6 must be in 0 position. SPOT AND INTERVAL WELDING DIGITAL Keep pressing the button X3 (2T/4T) for at least 3s ALFA IN a.s. © www.alfain.eu...
- Page 24 The spot welding mode is being used for welding short welds of the same length. The pressing the torch button activates the time circuit that starts and end the welding procedure. ALFA IN a.s. © www.alfain.eu...
- Page 25 The welder select the parameter that he knows by means the button X5 and the encoder X20 (Current in A, wire speed in m/min or material thickness). Then the welder can the recommended settings see on the right display (see Fig. 17). ALFA IN a.s. © www.alfain.eu...
- Page 26 • First left figure – coarse voltage A - B (JUST ALF 400). • Second left figure - fine voltage 1 - 9, the tenth position of the switch is signed as „0“; ALF 320 shows numbers 1-12. • Third left figure – choke position. ALFA IN a.s. © www.alfain.eu...
-
Page 27: Routine Maintenance & Inspection
• A ‘competent person’ must be a person who has acquired through training, qualification or experience, or a combination of them, the knowledge and skills enabling that person to safely carry out a risk assessment and repairs to the electrical equipment in question. ALFA IN a.s. © www.alfain.eu... -
Page 28: Statement Of Warranty
• ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. The warranty period begins on the date of sale to the end user. - Page 29 In accordance with European Council Directive 2002/96/EC on electrical and electronic equipment waste and its implementation in accordance with national law, electric tools that have reached the end of their service life must be collected separately and returned to an environmentally compatible recycling facility. ALFA IN a.s. © www.alfain.eu...
