INSTALLATION AND OPERATING INSTRUCTIONS
LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER!
These stoves exceed the safety and performance requirements of European Standards
Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
Fuel
Test Standard
Test Cycle
Flue Draught Pa (ins WG)
Efficiency %
Recommended Rating to room kW (btu)
To water, kW (btu)
Total Output, kW (btu)
Mean Flue Gas Temp Rise ºC
Minimum room air entry requirement
Minimum Clearance to combustibles
NOx mg/m³
CO %
CxHy mg/m³
Gas flow g/sec
Smoke Emission mg/m³
NOTE: The ratio of water to room output has been corrected for net/gross errors.
I declare that this information is true, these products meet the requirements of Harmonised Standards and are fit for sale.
Signed on behalf of the manufacturer by Glyn Hughes, Design Engineer, at Winster, Derbyshire, England 22. Jul. 2014
Read these instructions! Use only recommended fuels!
For open-vented water systems only - Maximum pressure 2bar
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for purposes of
Building Law. It must be left with the householder and placed where it can easily be found.
INSTALLED AT LOCATION:
BY:
EMERGENCY CONTACT:
I definitively assert that this installation is safe, has been lit and demonstrated to the
householder, conforms with current building regulations and with these instructions
SIGNED:
TO FIND A QUALIFIED INSTALLER, FUEL SUPPLIER or CHIMNEY SWEEP, CONTACT:
UK: The Solid Fuel Association, 7 Swanwick Court, Alfreton, Derbyshire DE55 7AS Tel:0845-601-4406 www.solidfuel.co.uk
RoI: Irish Nationwide Fireplace Organisation, 162 Capel Street, Dublin 1 Tel:01-801-5959 www.fireplace.ie
Morso UK Ltd, Unit 7, The I O Centre, Valley Drive, Rugby, Warwickshire, CV21 1TW UK
The Morso DB15 may be used in smoke control areas when operated strictly in accordance with these instructions and with
the attached Soliftec Smoke Advice Sheet No1 (www.soliftec.com/smokeadvice.htm), when burning:
UK: Untreated wood logs, lignite briquettes or authorised smokeless fuels (Exempted from s20 of the Clean Air Act 1993)
RoI: Wood logs, smokeless fuels or peat briquettes, but not petroleum coke (Control of Atmospheric Pollution Regulations, 1970)
HIGH-EFFICIENCY SOLID FUEL CENTRAL-HEATING
Multifuel Models and PureWood Models
Independently tested by SGS Nederland BV. Notified Body 0608 - May 2011
Anthracite
(Beech Logs)
2.0 kg per 1 hr 1.3 kg per 0.75 hrs
12
80.7%
5.8 (19,700)
6.3 (21,600)
12.1 (41,400)
200 °C
Temperature underneath can exceed 100°C - traditional hearth required
-
0.06%
-
-
DATE:
Solid Fuel Central Heating Stoves Manual Issued - 22/07/2014 (482)
DB15
STOVE WITH AUTOMATIC CONTROL

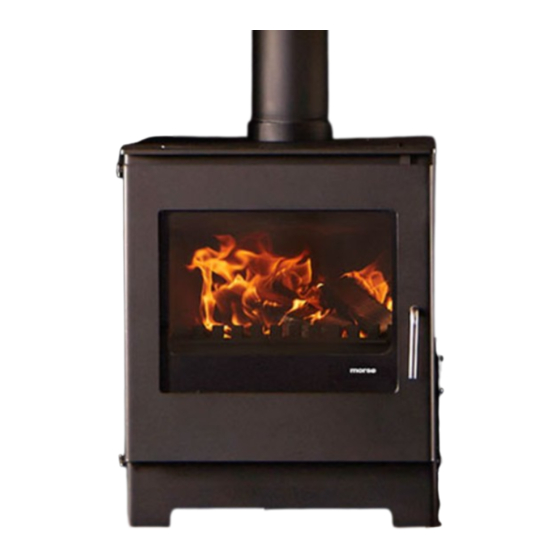

Morso DB15 Central Heating Stove
with DTRG Downburn Firebox
Biomass Biomass
(Joinery Waste)
EN 13240:2001 +A2:2004
2.9 kg per 0.73 hrs
12 12
80.0% 78.2%
5.7 (19,600) 6.2 (21,200)
8.8 (30,000) 7.9 (26,900)
14.5 (49,600) 14.1 (48,200)
263 °C 251 °C
8000 mm²
100mm at sides and back
98mg/m³ -
0.24% 0.07%
77mg/m³ -
48mg/m³ 47mg/mª
1
Lignite Bituminous Coal
3.4 kg per hr 2.5 kg per hr
12 12
79.5% 80.7%
7.8 (26,800) 9.1 (31,300)
7.7 (26,200) 7.6 (25,800)
15.5 (53,000) 16.7 (57,100)
276 °C 241 °C
- -
0.24% 0.23%
- -
-
42mg/mª 733mg/mª
Flue Draught
measured on
commissioning:
Pa
WG
Fuel used on
commissioning
