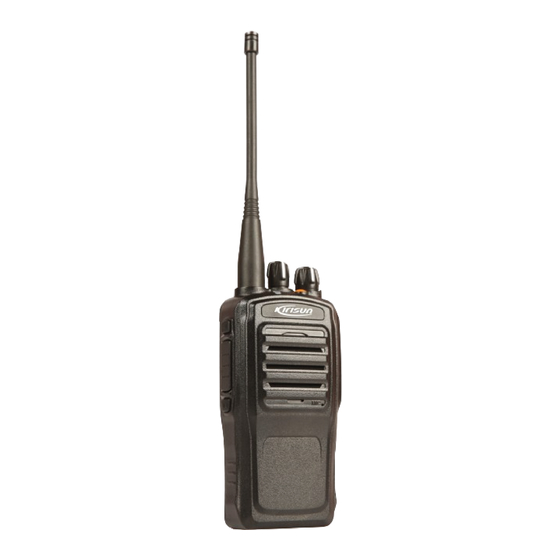

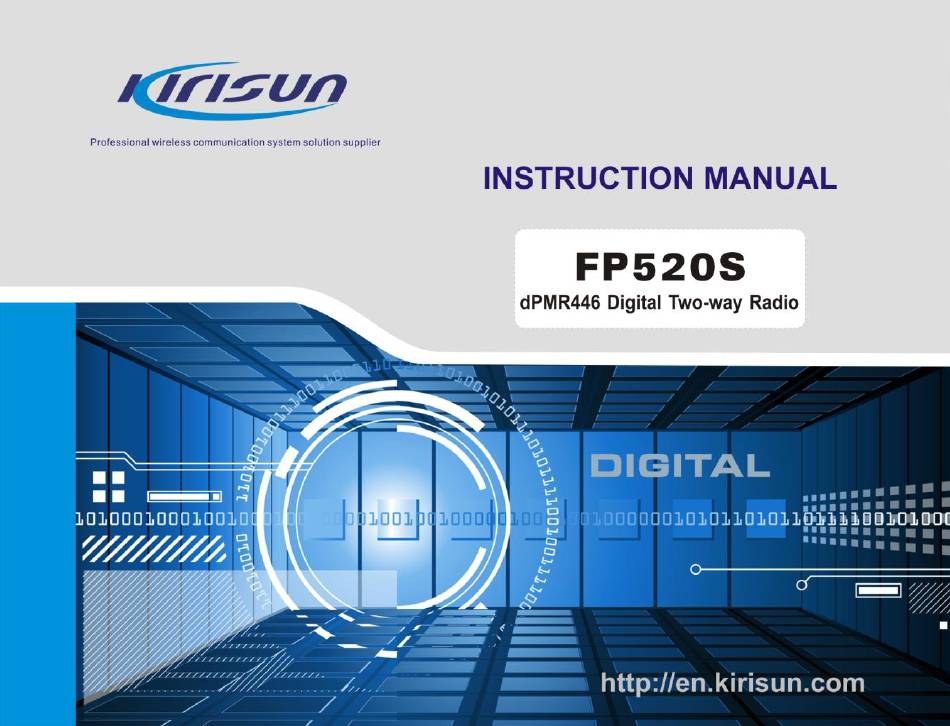

- Page 1 FP520S dPMR446 Digital Two-way Radio Instruction Manual...
- Page 3 Kirisun Communications Co., Ltd. We believe KIRISUN two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN two-way radio can meet your demands for reliable communication.
- Page 4 FP520S dPMR446 Digital Two-way Radio Instruction Manual...
-
Page 5: Safety Information
Kirisun or its authorized parities. Due to the update or modification of the product, Kirisun owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only. - Page 6 FP520S dPMR446 Digital Two-way Radio Instruction Manual not when it is receiving (listening) or in standby mode. Your radio complies with the following of RF energy exposure standards and guidelines Institute of Electrical and Electronic Engineers (IEEE) C95.1-1992 Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 ◆Operating Instructions to Control RF Exposure...
- Page 7 FP520S dPMR446 Digital Two-way Radio Instruction Manual Use the antenna, battery, adapter or charger supplied or sold by Kirisun only, otherwise it will causes damage to the product. If you want to purchase or replace the accessories, please contact your local dealer or Kirisun.
- Page 8 FP520S dPMR446 Digital Two-way Radio Instruction Manual skin, a minor burn can result. Batteries All batteries can cause property damage and/or bodily injury, such as burns, if a conductive material such as jewelry, keys, or beaded chains touches exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot.
-
Page 9: Table Of Contents
FP520S dPMR446 Digital Two-way Radio Instruction Manual Contents ◆Copyright ..........................II ◆ Safety Information ........................II Unpacking and Checking ......................1 Preparing Your Radio for Use ....................2 2.1 Charging the Battery ........................2 2.2 Installing/Removing the Battery ..................... 3 2.3 Installing the External Speaker/Microphone ................... - Page 10 FP520S dPMR446 Digital Two-way Radio Instruction Manual 4.4 Selecting a Channel ........................11 4.5 Initiatingthe Digital Calling ......................11 4.6 Receiving a Call ........................... 12 4.7 Answering a Call .......................... 12 Advanced Functions ....................... 13 5.1 Time-out Timer ..........................13 5.2 Scan...
-
Page 12: Unpacking And Checking
FP520S dPMR446 Digital Two-way Radio Instruction Manual 1. Unpacking and Checking Unpack the radio carefully. We recommend that you check the radio and the supplied accessories listed in the following table before discarding the packing material. If any damage or loss has occurred during shipment, please contact the deliveryman or the dealer without delay. -
Page 13: Preparing Your Radio For Use
FP520S dPMR446 Digital Two-way Radio Instruction Manual 2. Preparing Your Radio for Use 2.1 Charging the Battery Plug the power adapter into the suitable AC socket and connect the power adapter to the charger base. Three LED lights flash about one second. And then green LED will light on while charging normally. -
Page 14: Installing/Removing The Battery
The battery is not fully charged in the factory. Please ensure complete fill before initial use KB-515L Li-ion battery of Kirisun is applicable to this radio. When charging the battery for the first time after purchase or long-time storage (over 2 months), please repeat charging several times for the battery to achieve normal capacity. - Page 15 FP520S dPMR446 Digital Two-way Radio Instruction Manual If the radio have a belt clip, press down the belt clip first as figure○ 1 shows; match the two bumps of the battery to the two slots of the radio and put inside as figure○ 2 shows. Then press down the bottom of the battery as figure○...
-
Page 16: Installing The External Speaker/Microphone
FP520S dPMR446 Digital Two-way Radio Instruction Manual 2.3 Installing the External Speaker/Microphone Open the cover for external speaker/MIC jacks, and then insert the external speaker/MIC plug into the jacks on the radio. 2.4 Installing the Belt Clip Align the screw holes on the belt clip, which is located on the back of the radio, and fasten them with the screwdriver. -
Page 17: Product Overview
FP520S dPMR446 Digital Two-way Radio Instruction Manual 3. Product Overview 3.1 Radio Controls Side button 1 (programmable button) 2. PTT (push to talk) button To make a call, press and hold the PTT button, then speak to the microphone and send the... -
Page 18: Programmable Buttons
FP520S dPMR446 Digital Two-way Radio Instruction Manual voice to other radio. Release the PTT button to receive signals. 3. Side button 2 (programmable button) 4. Fixed Antenna 5. LED indicator Red LED lights on while transmitting signal; Green LED lights on while receiving signal. Red LED flashing while the battery voltage is low. - Page 19 FP520S dPMR446 Digital Two-way Radio Instruction Manual can be programmed as short cuts to radio functions by dealer. Side button 1, side button 2 and top button can be programmed to “long press” and short press. Short Press: Pressing and releasing rapidly.
-
Page 20: Led Indicator
FP520S dPMR446 Digital Two-way Radio Instruction Manual On/Off channel. Voice Annunciation When pressed, the current channel number will be heard. Talk Around Toggle between using a repeater and communicating directly with another radio. Squelch Off To always unmute the speaker no matter whether carrier is present or not. -
Page 21: Basic Operation
FP520S dPMR446 Digital Two-way Radio Instruction Manual PTT to talk back while the orange LED flashes. Red LED flashes Radio is in emergency status, or the battery is low. Orange LED on. No programmed Channel Green LED flashes. Radio is scanning. -
Page 22: Adjusting The Volume
FP520S dPMR446 Digital Two-way Radio Instruction Manual You can set any of the programmable buttons as “zone up” or “zone down”. Under standby mode, pressing the button to switch zone number. The current zone number will be heard if voice annunciation has been enabled. -
Page 23: Receiving A Call
FP520S dPMR446 Digital Two-way Radio Instruction Manual While transmitting, the red LED light. Speak to the MIC with normal voice and keep your mouth from the MIC 3-8cm away. 4.6 Receiving a Call When the radio receives signal on the current channel, the green LED lights on. If it is the digital channel, the radio output the voice when receiving a call with your own Radio ID, your Group Call or All Call ID on this channel;... -
Page 24: Advanced Functions
FP520S dPMR446 Digital Two-way Radio Instruction Manual set by your dealer. On an analog channel, when the radio receives a call, press the PTT button to answer the call directly. 5. Advanced Functions 5.1 Time-out Timer This function forbids you from occupying the channel for a long time. If the continuous transmitting time exceeds the setting time by dealer, the radio sends out a warning tone and stops transmitting. -
Page 25: Radio Kill/Revive
FP520S dPMR446 Digital Two-way Radio Instruction Manual can be programmed by your dealer. 5.3 Radio Kill/Revive This function allows one radio to be killed or revived. The radio to be killed cannot make or receive calls. The radio can only revive through CPS sends a revive order or be reprogrammed. After revived, the radio can work normally again. - Page 26 FP520S dPMR446 Digital Two-way Radio Instruction Manual ◆Regular: The radio provides audio and visual indication that it is in Emergency mode and can receive the signal from others; ◆Secret: No audio and visual indication. And the radio cannot receive the signal from others;...
-
Page 27: Troubleshooting
FP520S dPMR446 Digital Two-way Radio Instruction Manual 6. Troubleshooting Problem Causes and Solutions The radio cannot be A．The battery may be used up. Recharge it or change the battery powered on. to try again. B．The power switch is in failure. Please change it. - Page 28 FP520S dPMR446 Digital Two-way Radio Instruction Manual radio cannot A．The antenna may get looser or may be improperly installed. receive signals Re-install the antenna. B．The frequency settings may be different from others. Set your TX/RX frequencies to be the same as others.
- Page 29 - 2 -...
