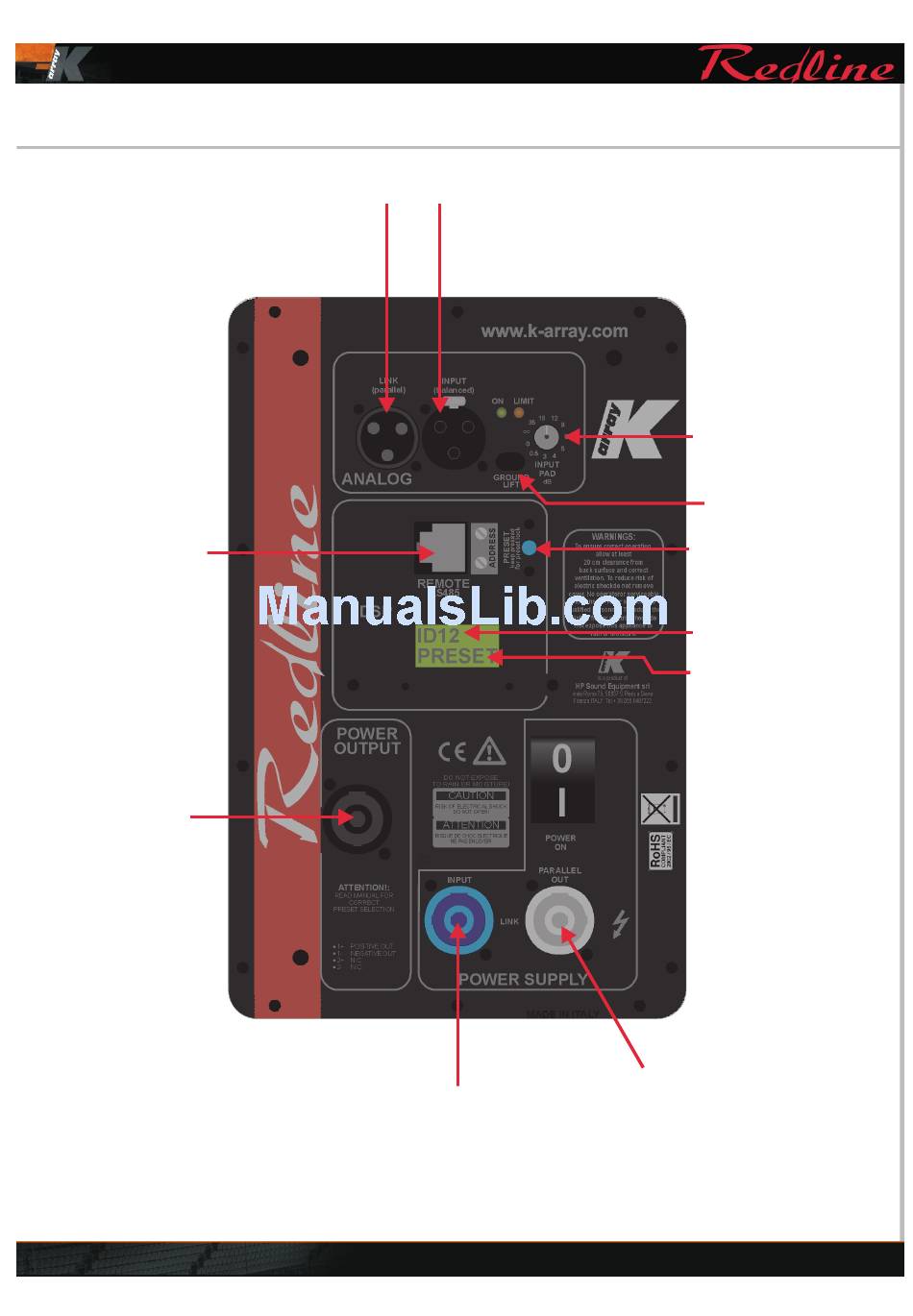

4. AMPLIFIER PANEL
RS485 connection
for remote control
(don't connect to
LAN port!)
S p e a k o n p o w e r
output.
To use with KR200
satellite or with
K L 1 8 p a s s i v e
subwoofer
USER'S MANUAL
Balanced XLR
In \ Out parallel
LINK INPUT
(parallel) (balanced)
PUSH ON
ANALOG
GROUND
LIFT
REMOTE
RS485
DSP
ID12
PRESET
POWER
OUTPUT
DO NOT EXPOSE
TO RAIN OR MOISTURE!
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN!
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS ENLEVER!
INPUT
ATTENTION!:
READ MANUAL FOR
CORRECT
PRESET SELECTION
LINK
1+ POSITIVE OUT
1- NEGATIVE OUT
2+ N.C.
2- N.C.

POWER SUPPLY

PowerCon Input
pag. 04
LIMIT
18 12
35
9
6
0
5
0.5
3 4
INPUT
PAD
dB
WARNINGS:
To ensure correct operation,
allow at least
20 cm clearance from
back surface and correct
ventilation. To reduce risk of
electric shockdo not remove
cover. No operatoror serviceable
parts inside. Refer servicing to
qualified personnel. To reduce the
risk of fire or electric shock do
not expose this appliance to
rain or moisture.
is a product of
HP Sound Equipment srl
viale Roma 7/i, 50037 S.Piero a Sieve
Firenze ITALY Tel + 39 055 8487222
POWER
ON
PARALLEL
OUT
MADE IN ITALY
PowerCon parallel Output
(max 14 A)
Input pad level
Ground lift switch
Preset change button
Keep it pressed 10sec.
to store preset as default
I D n u m b e r f o r
remote control
Preset loaded
ENGLISH
