30" GAS RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
44 5/8"

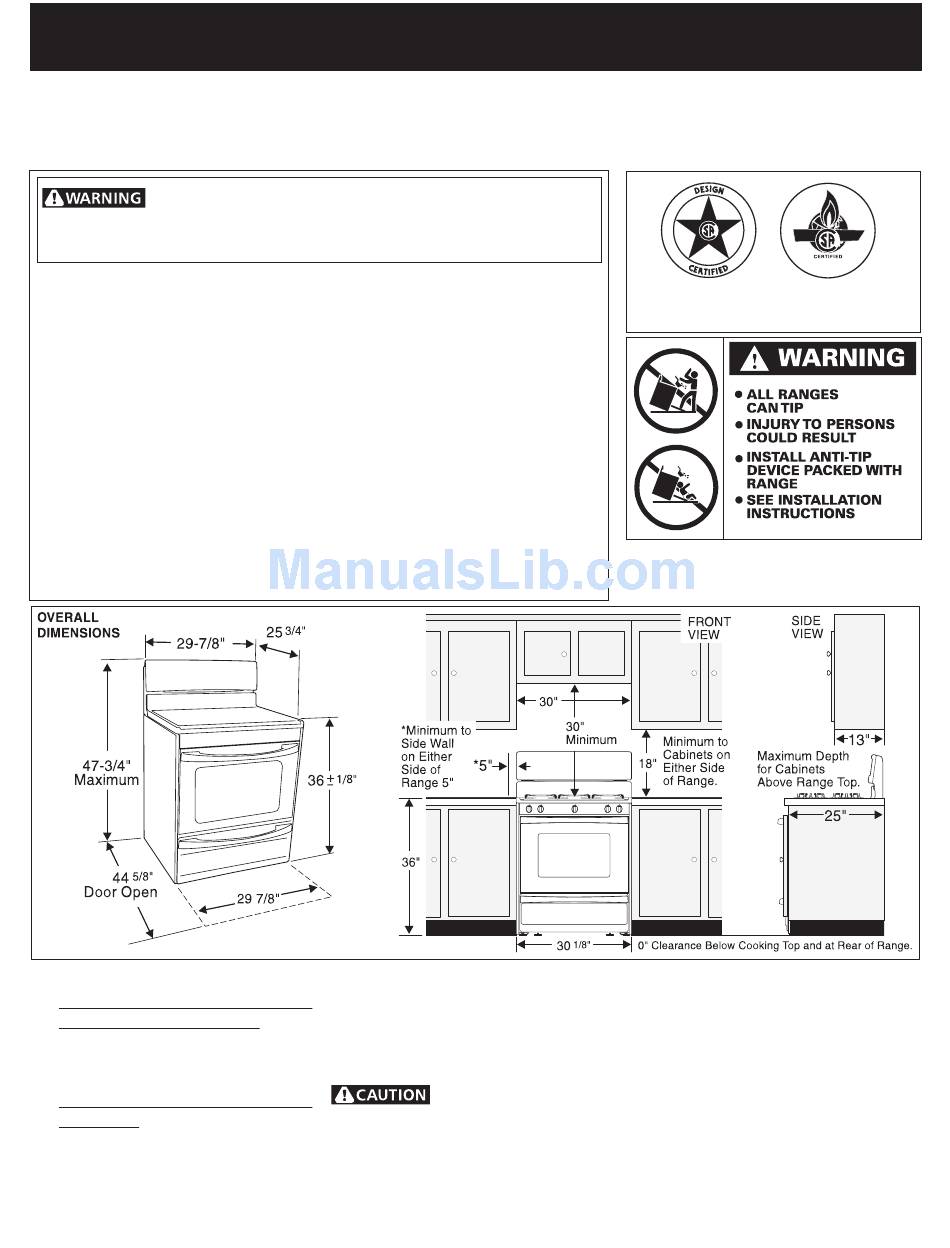

Clearances and Dimensions
1. Location—Check location where
the range will be installed. Check
for proper electrical and gas
supply, and the stability of the
floor.
2. Dimensions that are shown must
be used. Given dimensions
provide minimum clearance.
Contact surface must be solid
and level.
p/n 316259336 EN_SP (0408)
(For Models with Sealed Top Burners)
Provide Proper Fuel Type
Before Proceeding: Your range is preset to operate on natural gas only. This
model was shipped convertible from the factory with the necessary parts and
conversion instructions supplied.
DO NOT attempt to convert this range to LP/Propane settings without
the proper LP/Propane conversion kit provided with the range or obtained from your
dealer. Follow all instructions provided with this conversion kit.
1
Refer to your serial plate for
applicable agency certification
Note: For appliances installed in the
State of Massachusetts see page 2.
