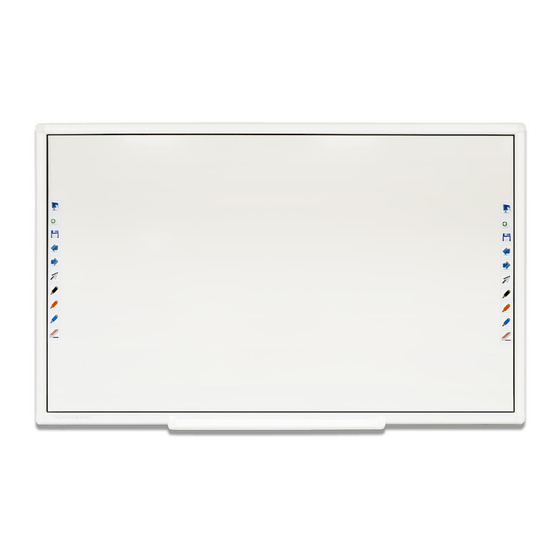

TRIUMPH BOARD 78” MULTI Touch User Manual
Multi touch series
Hide thumbs
Also See for 78” MULTI Touch:
- User manual (44 pages) ,
- Installation manual (2 pages) ,
- User manual (37 pages)
Table of Contents
Related Manuals for TRIUMPH BOARD 78” MULTI Touch
Summary of Contents for TRIUMPH BOARD 78” MULTI Touch
- Page 1 User Manual v 6.0 May 2013 MULTI Touch Series TRIUMPH BOARD 78” MULTI Touch TRIUMPH BOARD 89” MULTI Touch TRIUMPH BOARD 96” MULTI Touch TRIUMPH BOARD a.s. , Neklanova 122/15, 128 00 Praha 2, Czech Republic, European Union, www.triumphboard.com...
-
Page 2: Table Of Contents
9) Hotkey Setting ......................... 23 TB Comenius MULTI Touch v6 ................... 23 RM Easiteach ........................24 10) MS Office Annotations (only for Vista & Windows-7,8 ) ............26 11) Repair Service and Contacts ....................27 TRIUMPH BOARD a.s. Page 2 of 27... -
Page 3: Safety Information
Make sure the mounting screws are properly sized to handle the weight of this product. Make sure the mounting hardware is securely anchored to a solid structure. Only plug the power cord, power plug or power adaptor into an AC power outlet with the proper and TRIUMPH BOARD a.s. Page 3 of 27... - Page 4 Do not alter this product or modify any parts. Alternation or modification can cause fire or electronic shock Before cleaning this product, unplug the power cord or power plug or power adaptor as electric shock may result. TRIUMPH BOARD a.s. Page 4 of 27...
- Page 5 Do not put drinks, other liquids or heavy items on the tray or screen. Accidental spillage of liquid into this product may cause severe damage. If this occurs, turn this product off, unplug the power cord or power plug or power adaptor and contact an authorized service representative for service. TRIUMPH BOARD a.s. Page 5 of 27...
- Page 6 Fasten the screws tightly to avoid that the stand or this product falls which may cause injury or damage. Before installation, take the wall material and wall strength into consideration. For details, please consult your dealer. TRIUMPH BOARD a.s. Page 6 of 27...
-
Page 7: Product Description
TRIUMPH BOARD MULTI Touch is based on IR Cell LED Optical technology which uses a combination of IR LEDs and photo transistors that are aligned in pairs around the active surface. These pairs of LEDs and photo transistors cast a grid over the surface. -
Page 8: Technical Specifications
3) Technical Specifications TRIUMPH BOARD 78” MULTI Touch EAN: 8592580101601 1576 x 1168, 78” diagonal Active screen area size: Aspect ratio: Technology: IR (Infrared) cell LED optical Resolution: 12800x9600 Projection screen area: 1557 x1168 mm Interface Type: USB 2.0 / 2.4 GHz RF Wireless (optional) Cable Length: -20 to 40°C... - Page 9 TRIUMPH BOARD 89” MULTI Touch EAN: 8592580101618 1944 x 1127, 89” diagonal Active screen area size: Aspect ratio: 16:10 (with hotkeys), 16:9 Technology: IR (Infrared) cell LED optical Resolution: 12800x9600 Projection screen area: 1803 x 1127 mm (with the hotkeys) Interface Type USB 2.0 / 2.4 GHz RF Wireless (optional)
- Page 10 TRIUMPH BOARD 96” MULTI Touch EAN: 8592580101625 2145 x 1127, 96“ diagonal Active screen area size: Aspect ratio: 16:9 Technology: IR (Infrared) cell LED optical Resolution: 12800x9600 Projection screen area: 2044 x 1127 mm (with the hotkeys) Interface Type: USB 2.0 / 2.4 GHz RF Wireless (optional) Cable Length: -20 to 40°C...
-
Page 11: Package Contents
Stylus ( plastic pen ) Eraser Hard Copy User Manual incl. mounting instructions TB Comenius – Software CD with soft copy user manual MyScript Stylus - Software CD RM Easiteach - Software DVD Installation components set TRIUMPH BOARD a.s. Page 11 of 27... -
Page 12: Wall Mount Installation
5) measure and install wall plugs (1), screws (2) and square (4) 6) hang board Step 4 Hang the board onto the wall mount, Ensure the board is Securely in place before releasing TRIUMPH BOARD a.s. Page 12 of 27... - Page 13 MULTI Touch 89“ 1 Wall plug 10 5 Drape 2 Screw 5x50 6 Screw M5x12 Hanger TB MULTI Touch 7 Screw M4x10 4 Square Hotkeys TRIUMPH BOARD a.s. Page 13 of 27...
- Page 14 MULTI Touch 96” 1 Wall plug 10 5 Drape 2 Screw 5x50 6 Screw M5x12 Hanger TB MULTI Touch 7 Screw M4x10 4 Square Hotkeys TRIUMPH BOARD a.s. Page 14 of 27...
- Page 15 Do not install this product in location where the temperature may change suddenly. Avoid to install two or more of these products in the same room or adjacent to each other. Please consult your dealer for details. TRIUMPH BOARD a.s. Page 15 of 27...
-
Page 16: Software Installation
Choose destination location and click “Next” to continue. c) Click Install d) Click “Finish” to exit upon the MULTI Touch software has been successfully installed. e) Connect your PC / laptop with the MULTI Touch by using USB cable (provided). TRIUMPH BOARD a.s. Page 16 of 27... -
Page 17: Hw Installation
7) HW Installation Connection User must have PC, projector, MULTI Touch - USB or MULTI Touch - Wireless Receiver and connect them as shown in the figure below. MULTI Touch – USB cable – Computer TRIUMPH BOARD a.s. Page 17 of 27... - Page 18 Mounting and connecting HDMI-> micro USB and 6 m USB cable MULTI Touch - Wireless - Computer Once the connection is completed, adjust the position of the video projector until the projected Windows screen on the board is within the whiteboard working area. TRIUMPH BOARD a.s. Page 18 of 27...
- Page 19 Connection of WR Antenna (optional) TRIUMPH BOARD a.s. Page 19 of 27...
-
Page 20: Multi Touch Driver Configuration
Calibration for MULTI Touch after first time installation or if the projector size and projector’s position has changed. Click the flashing cross to calibrate, press ESC to exit. Touch each coordinate accurately. The coordinates will be moved continually until the calibration is completed. TRIUMPH BOARD a.s. Page 20 of 27... - Page 21 User just selects the calibration profile from the record. User can select location profile when using MULTI Touch in the same location next time. TRIUMPH BOARD a.s. Page 21 of 27...
-
Page 22: D) Settings
If user enables auto run, the MULTI Touch board driver will automatically start with each restart of windows. If the MULTI Touch board is not used every day you can choose to disable auto run. TRIUMPH BOARD a.s. Page 22 of 27... -
Page 23: Hotkey Setting
Hotkey Strip (icons size 20*20 mm) or 50*50 mm for big Hotkey Strip (icon size 50*50 mm). 3) Use stylus of MULTI to point to Hotkey strip icons according to where the black/red cross is. TRIUMPH BOARD a.s. Page 23 of 27... -
Page 24: B) Rm Easiteach
If MULTI Touch Driver is running (TB Comenius Driver icon is displayed in system tray), click the right mouse button or hold electronic pen on driver´s icon and select Exit to cancel it. TRIUMPH BOARD a.s. Page 24 of 27... - Page 25 Hotkey Strip (icons size 20*20 mm) or 50*50 mm for big Hotkey Strip (icon size 50*50 mm) 3) Use stylus to point to corresponding Hotkey strip icons where the black/red cross is located. TRIUMPH BOARD a.s. Page 25 of 27...
-
Page 26: Ms Office Annotations (Only For Vista & Windows-7,8 )
10) MS Office Annotations (only for Vista & Windows-7, 8) Microsoft office Annotations toolbar will appear when the MULTI Touch board is connected with the PC TRIUMPH BOARD a.s. Page 26 of 27... -
Page 27: Repair Service And Contacts
Without TRIUMPH BOARD’s written permission, reproduction or reprinting this user guide or any part is prohibited.
