User Manual
INTERACTIVE FLAT PANEL
55"/ 65"/ 70"
2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55 inch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRIUMPH BOARD 55 inch

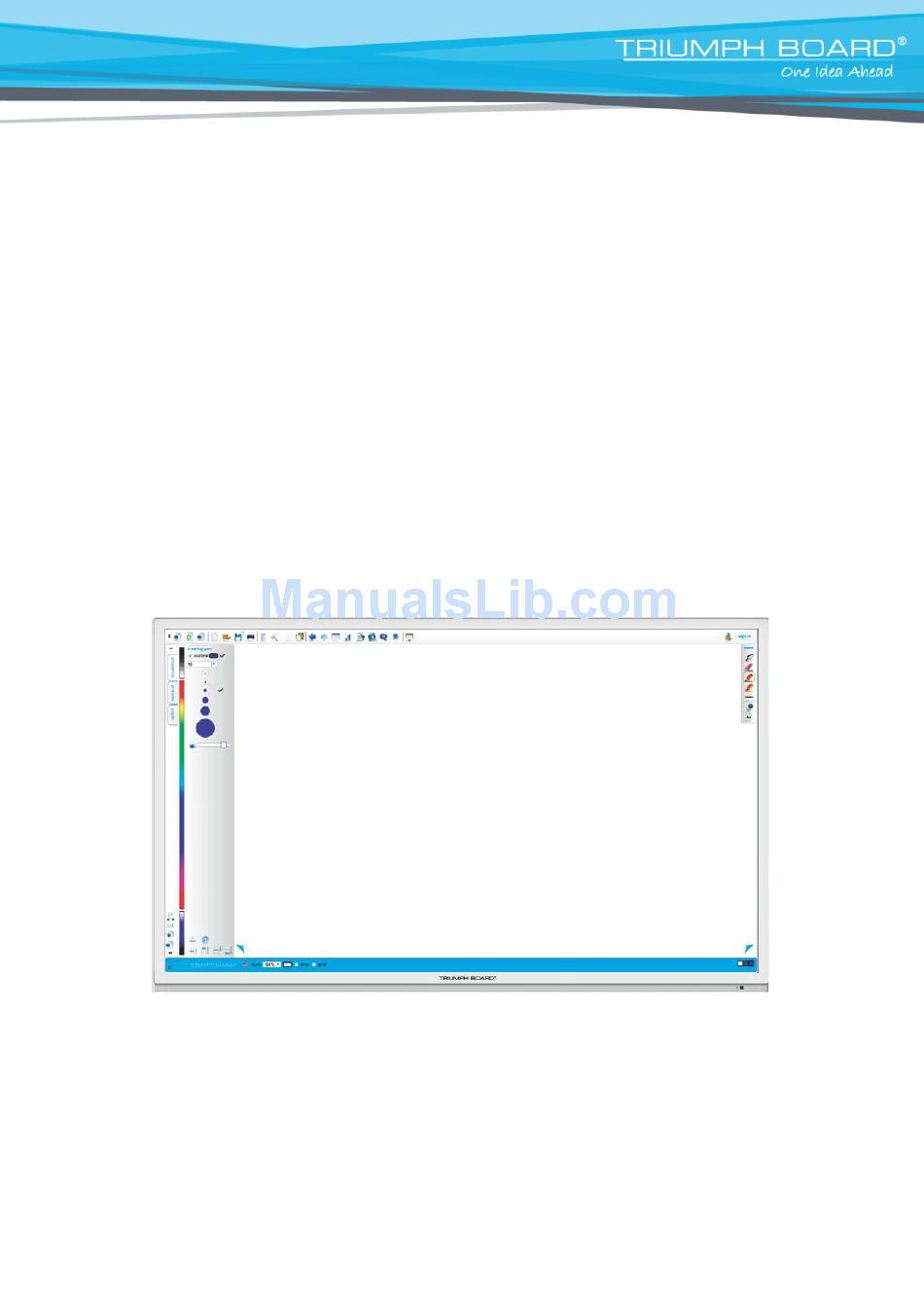

  • Page 1 User Manual INTERACTIVE FLAT PANEL 55”/ 65”/ 70” 2016...
  • Page 2: Table Of Contents

    Contents 1. Product Description ....................4 2. Technical Specifications ..................5 3. Safety Warning ...................... 8 Placement ............................8 Power Supply ............................ 8 Screen ..............................8 Range of Visibility ..........................8 Temperature ............................8 Humidity ............................. 8 Ventilation ............................9 Headphones ............................
  • Page 3 RS232 Serial port connection ......................21 8. Menu Operation....................22 One Touch menu operation ......................22 Settings menu ..........................22 Input settings ..........................22 Volume and Brightness settings ....................23 Audio settings ..........................23 Display settings ..........................24 Screen settings ..........................25 9.
  • Page 4: Product Description

    TRIUMPH BOARD 10A is the powerful, fully integrated personal computer for the TRIUMPH BOARD INTERACTIVE FLAT PANEL. TRIUMPH BOARD PC10A is equipped with an Intel i5 processor, integrated graphics and 4 GB RAM, which ensures high power for running current software. A 500 GB hard disk provides sufficient capacity for saving and storing user data.
  • Page 5: Technical Specifications

    2. Technical Specifications TRIUMPH BOARD 55” INTERACTIVE FLAT PANEL EAN: 8592580112348 Screen Type: TFT LCD/ A Standard/ LED backlight Resolution: 1920 x1080 Refresh rate: 6 ms, 60 Hz, 1200:1 Display Area: 1209.6(H) × 680.4(V) Outline Dimensions: 1304 x 800 x 104 mm...
  • Page 6 0 – 40 °C Operation Humidity: 10 – 90% RH Storage Temperature: - 20 C to 60 °C Storage Humidity: 10 – 95% RH TRIUMPH BOARD MINI PC10A for IFP EAN: 8592580112164 Processor: Intel i5 Graphics: Integrated Intel® HD Graphics...
  • Page 7 Lan Port (RJ45): VGA Out: Mini Display Port HDMI Output Audio: Side Headphone and Mic Ports Operation System: Microsoft Windows 10 Professional (OEM) 64-bit MultiLang Net / Gross Weight: 1.8 / 2.14 kg Android System System Version Android 4.2.1 ARM Cortex A9 dual-core CPU Quad-Core 1.5GB...
  • Page 8: Safety Warning

    3. Safety Warning Before using the device, please read the instructions carefully. Placement • Do not put the device on surfaces that are unstable, easy to tilt or which can fall. • Do not put the device in places with direct sunlight, or near sources of heat, such as electric heaters or strong light sources.
  • Page 9: Ventilation

    Ventilation • Please place the machine in ventilated places, and ensure machine's good heat dissipation. • Please ensure ventilation spaces 10 cm on the sides and back, and 20 cm on the top of the machine. Headphones • Extended use of headphones at high volumes may damage hearing.. If external headphones/earbuds are needed, please turn down the machine volume in advance.
  • Page 10: Preparing For Installation

    4. Preparing for Installation Unpacking Accessories Quick start guide, styluses, cleaning pads, remote control, power cords (UK, US, EU), VGA cable, touch OUT USB, headphone cable, AV cable, USB Flash Drive and VC Camera Bracket. 2x Stylus Cleanning Remote control Quick Start Guide Pads USB Cable...
  • Page 11: Control Panel

    Control Panel Number Item Function Description Power on/off HOME HOME button: back to main interface BACK Return button: return to previous menu level MENU Menu button: call up function menu VOL - Volume down button: turn volume down VOL + Volume up button: turn volume up Indicator color shows the status of power on/off (on - Power indicator...
  • Page 12: Ifp Interface Inputs, Outputs

    5. IFP Interface Inputs, Outputs right side of IFP right bottom side of IFP Ports Description of Function 1. USB 2.0 Connect USB devices such as mobile hard disk, USB disk, USB keyboard USB 3.0 and mouse, USB drives, etc. High-definition multimedia interface signal input, for connecting to PC (personal computer) with HDMI output, set-top box, or other 2.
  • Page 13: Mini Pc 10A Inputs, Outputs (Optional)

    Mini PC 10A Interface Inputs, Outputs (optional) 23 14 Mini PC 10A (optional) Ports Description of Function WIFI antenna interface 15. MINI DISPLAY Connection to device with Display Port input function PORT OUT 16. HDMI OUT Connection to devices with HDMI input function Network interface, connecting RJ45 port to connect to the Internet.
  • Page 14: Remote Control

    6. Remote Control Remote control button instructions...
  • Page 15: Detailed Function Description Of Remote Control Buttons

    Detailed function description of remote control buttons Press this button to enter standby mode when power is on; Click this button to switch on in standby mode LCD: Press this button to control your LED LCD screen. Note: Your Remote control has been set-up automatically for the function of your LED LCD.
  • Page 16: Remote Control Use Instructions

    Remote Control Use Instructions Install Batteries (batteries not included) 1) Open back cover of battery compartment on the back of remote control 2) Install AAA type batteries according to the corresponding electrode, make sure battery positive and negative poles are correctly placed ("+"to"+", "-" to "-"), please do not mix old and new batteries 3) After batteries are installed, close the back cover of battery compartment, and snap the clip fastener shut against the bottom of the remote.
  • Page 17: Connection And Setting

    7. Connection and Set Up CAUTION For the safety of you and the device, please do not connect any power cord before the external device has been prepared. External Computer and Touch Connection (1) Use VGA line to connect to VGA output port of external computer, and meanwhile use headphone audio line to connect to external computer audio output interface.
  • Page 18: Audio And Video Equipment

    Audio and video equipment (1) Use AV audio and video lines to connect audio and video equipment with AV output (yellow for video, red for right sound channel, and white for left sound channel) (2) After line connection, plug in power cord, and switch power to On to turn equipment ON Press (4) Press INPUT key to switch to CVBS port...
  • Page 19: Coaxial Connection

    Coaxial connection (1) Use coaxial line to connect audio device with coaxial input (2) After line connection, plug in power cord, and switch power to ON Press to turn equipment on Video output connection VGA output connection Mini PC 10A (optional) (1) Use VGA line to connect display devices with VGA input, and use headphone line to connect sound output (2) After line connection, plug in power cord, and switch power to On...
  • Page 20: Usb Equipment Connection

    USB Equipment connection Network cable connection Microphone connection WAN connection NOTE: If the user wants the built-in computer and android system to connect to the Internet at the same time.
  • Page 21: Rs232 Serial Port Connection

    RS232 Serial port connection Serial port line Computer After using the serial port line to connect central control equipment and the device, certain functions of the device can be controlled via the central control device, such as: device ON/OFF, and adjustment of sound volume, etc.
  • Page 22: Menu Operation

    8. Menu Operation One Touch Menu Operation Call up method Take middle point position on the bottom of display screen as the starting point, use finger or stylus to drag towards screen center position to call up touch menu, as shown below. Settings menu Input Settings •...
  • Page 23: Volume And Brightness Settings

    Volume and Brightness Settings • Press INPUT button on the remote control or via touch A method to call up Input Setting menu; • Press button on the remote control or drag volume adjustment progress bar to adjust volume • Press button on the remote control or drag brightness adjustment progress bar to adjust...
  • Page 24: Display Settings

    Display Settings • Press INPUT button on the remote control or via touch use method A to call up the General Setting menu; • Press button on the remote control under General Setting menu or click “ ”icon with touch pen to enter the Display Setting menu; •...
  • Page 25: Screen Settings

    Screen Settings • Under channels other than Android, press Menu button on the remote control or via touch A method to call up General Setting menu; • Press button on the remote control or click “ ” icon directly. Press Menu on remote control to enter Screen Setting menu;...
  • Page 26: More Settings (Advanced Settings)

    9. More Settings (Advanced settings) Advanced settings menu • Under Apps menu, click on Settings call up Advanced settings menu; • Press button on remote control or click directly to select each option; Press return key on remote control or front panel of equipment to exit menu. Ethernet Checking View the current network connection status and the network parameters of the device.
  • Page 27: System Tool Menu

    System tool menu Fig.1 Fig.2 • Place two fingers on the screen (about 20~50mm apart) and keep in position more than two seconds under any channel to call up System tool menu (Figure1); • In System tool menu, menu is shown in Figure 2. •...
  • Page 28: Android System Interface

    10. Android System Interface Main Interface • Switch to Android channel to display main interface as shown above; • Press key on the remote control to select icon below, and press Enter key to enter corresponding program, or click on the associated icon directly to enter the program;...
  • Page 29: Tb Finder

    TB Finder Display files in Android system memory and Android system external storage. 1. Storage device display Click with touch pen to enter corresponding storage devices area 2. Menu/exit menu Click menu icon with touch pen to pop up menu options {order (type/size/time)} Click exit icon with touch pen to directly exit resource browse.
  • Page 30: Browser

    Browser • In the connected network state, enter web browsing for surfing the internet, click on "x" symbol in the upper left corner to close it. Settings (Advanced Settings) • Shortcut Settings in settings menu, see page 25. Apps TRIUMPH CLOUD Caution! Please note that you cannot install your own applications into the Apps section! Each application must be suitable for screen resolution and hardware specifications, as some...
  • Page 31: Tb Comenius Lite

    TB Comenius Lite Menu icon Click to bring up sub-menu (change background/save) Exit icon Click to exit TB Comenius Lite software Picture in picture Click to brig up picture in picture interface, see page 30 Image import icon Click to import required image from memory card Select icon Click to select Whiteboard writing symbols, can click or check to select...
  • Page 32: Multimedia File Playback Interface

    11. Multimedia File Playback Interface Image play Close current picture Magnify current picture Reduce current picture Display previous picture Play/pause Play next picture Counterclockwise rotate current picture displayed Clockwise rotate current picture displayed Play setting {Animation effect (on/off)/Slide time interval/Set as wallpaper} Audio play Close current audio file Play previous audio...
  • Page 33: Video Play

    Video play Close current video file playing Play previous video File Fast backward Play/pause Fast Forward Play next audio file Playlist...
  • Page 34: Troubleshooting

    13. Troubleshooting Board fails to work normally 1. Check whether there are other objects between remote control and television remote control receiving window, blocking signal transmission and thus leading to failure of remote control. Remote control failure 2. Check whether the battery terminal in the remote control is correctly connected. 3.
  • Page 35: Software Protocols

    14. Software protocols This document describes the hardware interface specification and software protocols of the RS232 interface communication between LED LCD and PC or other control unit with RS232 protocol. 14.1 Description Hardware specification LED LCD communication port is on the rear bottom side (1) Connector type: DSUB 9 Pin Male (2) Pin Assignment Male DSUB 9Pin...
  • Page 36 Serial port communication setting:  Baud Rate Select: 9600bps (fixed)  Data bits: 8bits (fixed)  Parity: None (fixed)  Stop Bits: 1(fixed) Protocols  Command Format Content Description Remar 0xAA fixed value Head 0xBB fixed value 0xCC fixed value Main command subcommand 0x00...
  • Page 37 Point to AA BB CC 08 07 00 0F DD EE FF point channels ATV 00-99 AA BB CC 05 00 XX ** DD EE FF Power of PC ON AA BB CC 09 01 00 0A DD EE FF AA BB CC 09 00 00 09 DD EE FF Mode Code...
  • Page 38 Refresh AA BB CC 07 4C 00 53 DD EE FF Input AA BB CC 07 07 00 0E DD EE FF Home AA BB CC 07 48 00 4F DD EE FF Menu AA BB CC 07 0D 00 14 DD EE FF Delete AA BB CC 07 40 00 47 DD EE FF Energy...
  • Page 39 Status Check Codes: Function Search Code Reply Code Status Example Check AA BB CC 01 02 AA BB CC 80 00 00 80 DD EE FF Power 00 03 DD EE FF AA BB CC 80 01 00 81 DD EE FF Status Check AA BB CC 03 02...
  • Page 40: Maintenance

    15. Maintenance Proper maintenance can prevent many early defects. Regular, careful cleaning can keep the device like brand- new. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean screen Mix a small amount of fabric softener or dishwashing detergent with warm water.
  • Page 41: Repair Service And Contacts

    Please contact your local supplier regarding warranty and technical service. You can find all warranty www.triumphboard.com/support/warranty. conditions and service partners on our website If you have any questions please email us at info@triumphboard.com TRIUMPH BOARD a.s. Neklanova 122/15 128 00 Prague 2 Czech Republic Phone: +420 224 910 221 Fax: +420 224 910 218 E-mail: info@triumphboard.com...
