TRIUMPH BOARD MULTI Touch Installation Manual

Hide thumbs Also See for MULTI Touch:

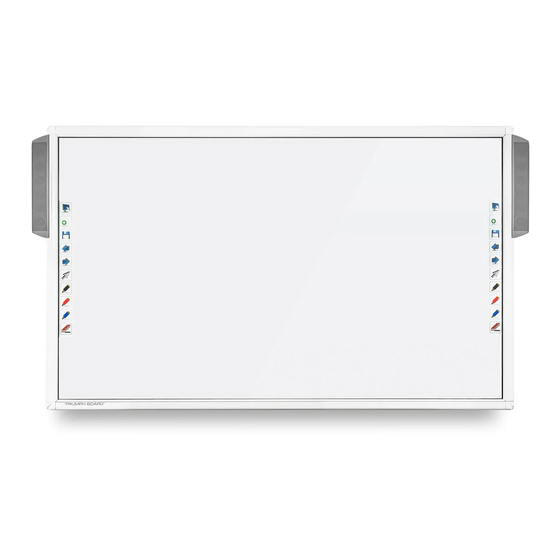

MULTI Touch Speakers Installation Guide

Note: For wall installation of MULTI Touch boards with MULTI Touch Speakers use 40 mm

Wall Mount supplied with MULTI Touch Speakers

1. Attach suspender (6) by screwing to board, see figure 1

2. Measure the position of top hangers for hanging (3), see figure 1

3. Install wall plugs (1) and hangers 40mm (3), see figure 1

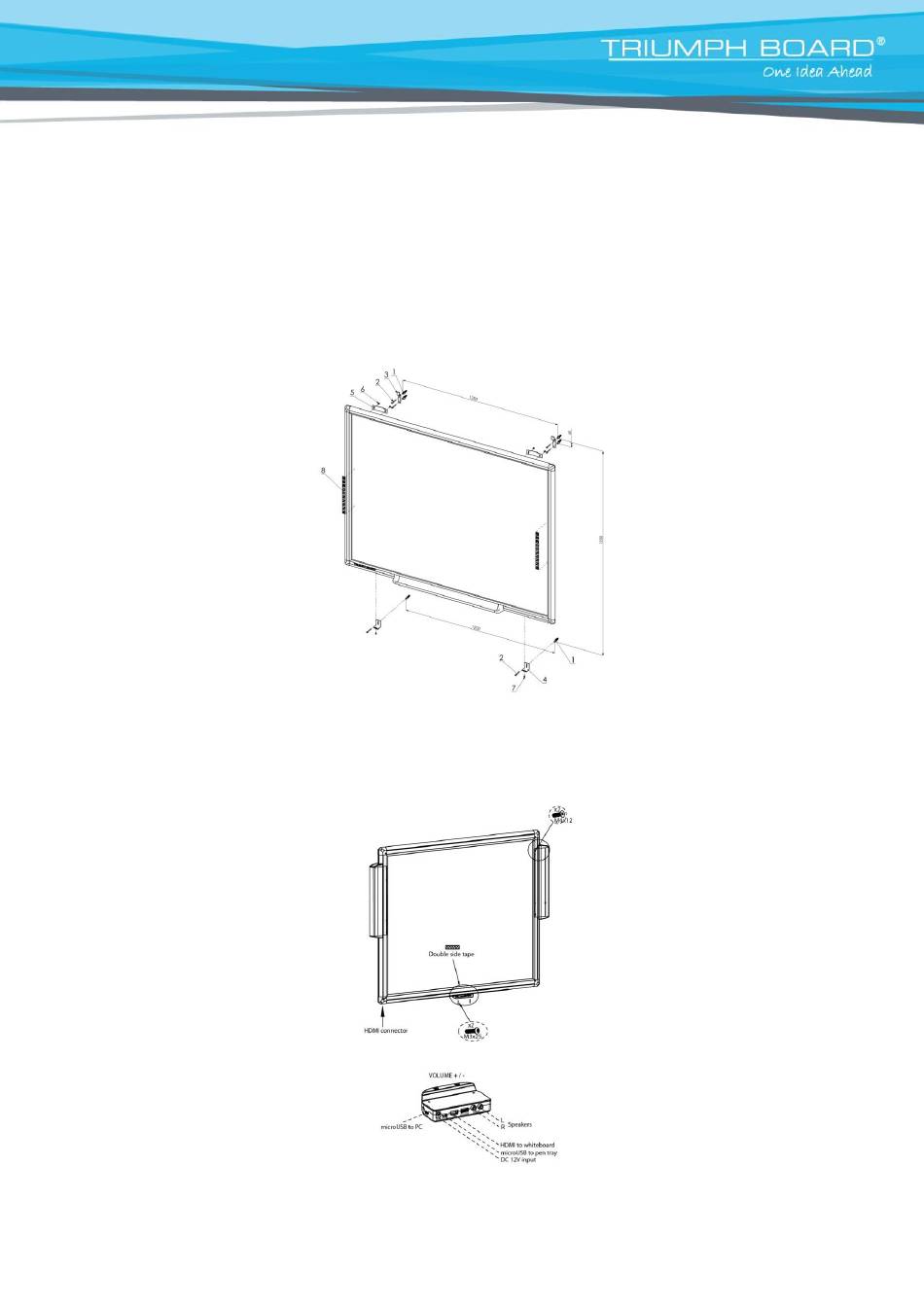

Figure 1

4. Use double side tape to attach the speaker´s HUB in center of the pentray,

5. Attach speakers to the frame from back of the board, see figure 2

Figure 2

Table of Contents

Do you have a question about the MULTI Touch and is the answer not in the manual?

Page 1 MULTI Touch Speakers Installation Guide Note: For wall installation of MULTI Touch boards with MULTI Touch Speakers use 40 mm Wall Mount supplied with MULTI Touch Speakers 1. Attach suspender (6) by screwing to board, see figure 1 2. Measure the position of top hangers for hanging (3), see figure 1 3.
Page 2 6. Lead / hide cables behind the board using tape 7. Install pentray with HUB on the board 8. Connect HDMI – HDMI and L and R Audio cables, see figure 3 Figure 3 9. Measure and install wall plugs (1), screws (2) and square (4), see figure 1 10.
