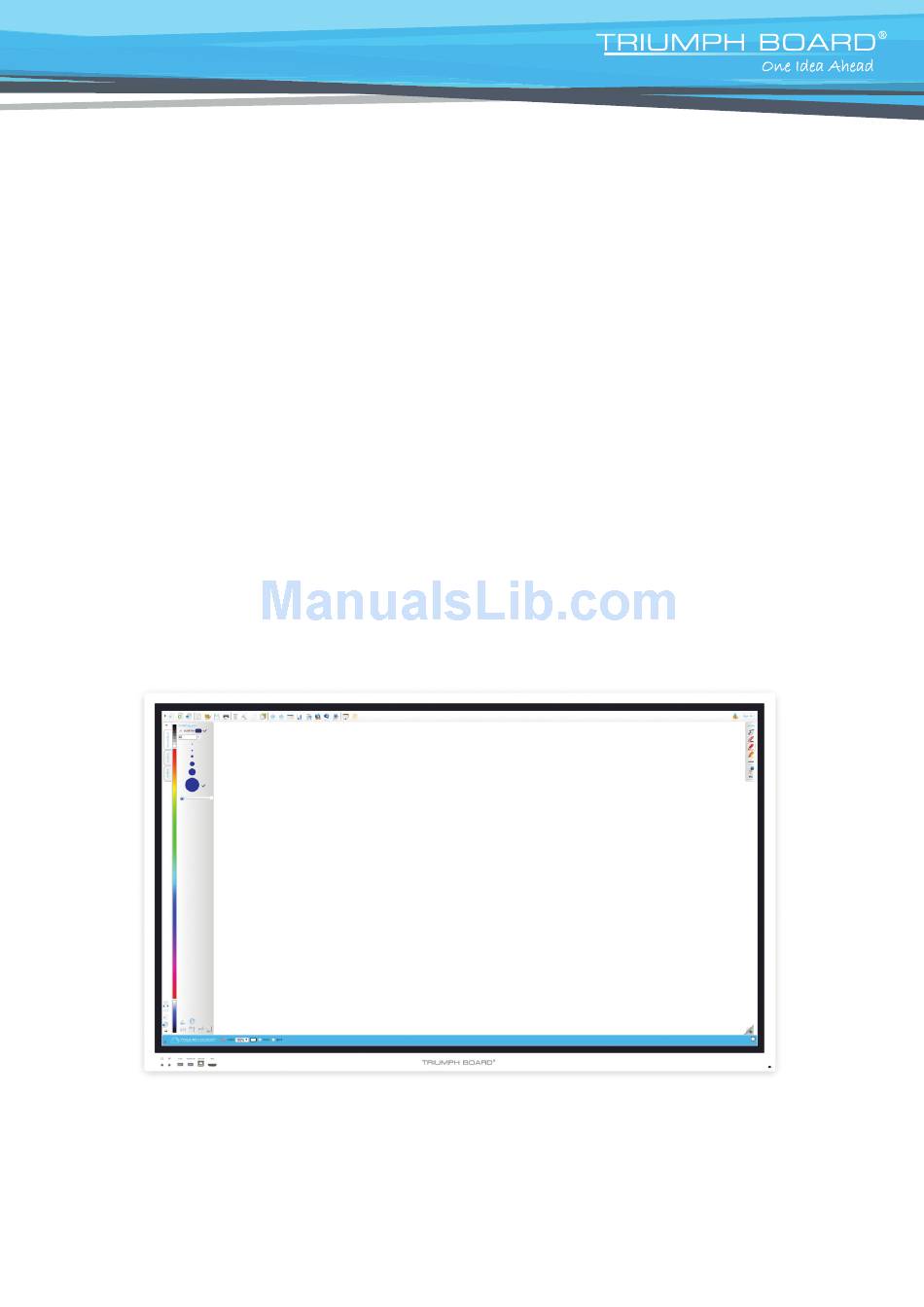

- Page 1 User Manual INTERACTIVE FLAT PANEL UHD Series 55”/ 65”/ 75”/86” 2017...
-
Page 2: Product Description
32 users being able to write and draw using fingers or a stylus. TRIUMPH BOARD OPS PC for INTERACTIVE FLAT PANEL (optional for IFP UHD Series) The TRIUMPH BOARD OPS PC for IFP is a powerful, fully integrated personal computer for the TRIUMPH BOARD Interactive Flat Panel Series with the Android system. -
Page 3: Technical Specifications
2. Technical Specifications TRIUMPH BOARD 55” INTERACTIVE FLAT PANEL EAN: 8592580113215 Screen Type: Open Cell DLED Backlight Resolution: 3840 × 2160 Brightness: 350 cd/m2 Contrast: 1200:1 Response time: 6 ms Refreshing Frequency: 60 Hz Display Area: 1238,48 (H) x 709,52 (V) mm (56.2” H x 27.9” V) Outline Dimensions: 1299 x 673 x 122 mm (59.4”... - Page 4 TRIUMPH BOARD 86” INTERACTIVE FLAT PANEL EAN: 8592580112645 Screen Type: Open Cell DLED Backlight Resolution: 3840 × 2160 Brightness: 400 cd/m2 Contrast: 1200:1 Response time: 6 ms Refreshing Frequency: 60 Hz Display Area: 1895,04 (H) x 1065,96 (V) mm (74.6” H x 41.97”) Outline Dimensions: 1990 x 1181 x 114,5 mm (78.35”...
- Page 5 Inputs and Outputs HDMI IN: HDMI OUT: VGA: PC AUDIO: Y Pb Pr: LAN: AV OUT: EARPHONE: SPDIF: USB 2.0: USB3.0: PC USB: TOUCH USB: AUDIO: MIC: RS232 IN/OUT *75” IFP 4xHDMI **75” IFP 4x TOUCH USB Sound System Power Amplification: 2x20W Sound: Surround...
- Page 6 Side Headphone and Mic Ports Operation System: Microsoft Windows 10 Professional (OEM) 64-bit MultiLang Net / Gross Weight: 1 / 1.3 kg (2.2 / 2.8 lb) TRIUMPH BOARD OPS PC PRO for IFP (for IFP UHD Series) EAN: 8592580113307 Processor: Intel i7 Graphics: Integrated Intel®...
-
Page 7: Safety Warning
3. Safety Warning Before using the device, please read the instructions carefully. Placement • Do not put the device on surfaces that are unstable, easy to tilt or which can fall. • Do not put the device in places with direct sunlight, or near sources of heat, such as electric heaters or bright light sources. - Page 8 Ventilation • Please place the machine in ventilated places, and ensure machine‘s good heat dissipation. • Please ensure ventilation spaces 10 cm (4 inches) on the sides and back, and 30 cm on the top of the machine. Headphones • Extended use of headphones at high volumes may damage hearing.
-
Page 9: Preparing For Installation
4. Preparing for Installation Unpacking Accessories Quick start guide, styluses, cleaning pads, remote control, power cables (UK, US, EU), VGA cable, touch USB cable, headphone cable, AV cable, USB Flash Drive and VC Camera Bracket. User manual 2x Stylus Cleaning Pads Remote control Power cable (US, UK, EU) VGA Cable... -
Page 10: Control Panel
Control Panel Number Item Function Description Power On/Off SETTINGS MENU Settings menu button: Settings OSD menu VOL - Volume down button: turn volume down VOL + Voume up button: turn volume up ▲ Adjustment button: move up (OSD menu) ▼ Adjustment button: move down (OSD menu) TOUCH ON/OFF Touch function button: Enable/Disable touch function... -
Page 11: Ifp Interface Inputs, Outputs
5. IFP Interface Inputs, Outputs left bottom side of IFP right side of IFP left bottom side of IFP 7 9 9 9 10 11 11 front panel... -
Page 12: Spdif Out
Ports Description of Function 1. USB 2.0 Connect USB devices such as portable hard drives, USB drives, USB keyboard and mouse, etc. USB 3.0 PC USB ANDROID USB High-definition multimedia interface signal input, for connecting to PC (personal computer) with HDMI output, set-top box, or other 2. -
Page 13: Remote Control
6. Remote Control Remote control button instructions... - Page 14 Descript POWER Switch between normal operation and standby SCREENSHOT Take screenshot MUTE Enable or disable sound LETTER/NUMERIC KEYS Input any letters and number F1 FRZ (FREEZE) Enable or disable freeze function in the system CH LIST Allow backspace when inputting characters / view TV channel list HOME Display the home page of the product MENU...
- Page 15 Remote Control Use Instructions Install Batteries (batteries not included) 1) Open back cover of battery compartment on the back of remote control 2) Install AAA type batteries according to the corresponding electrode, make sure battery positive and ne- gative poles are correctly placed („+“to“+“, „-“ to „-“), please do not mix old and new batteries 3) After batteries are installed, close the back cover of battery compartment, and snap the clip fastener shut against the bottom of the remote.
-
Page 16: Connection And Setup
7. Connection and Set Up CAUTION For the safety of you and the device, please do not connect any power cord before the external device has been prepared. External Computer and Touch Connection 1) Use VGA line to connect to VGA output port of external computer, and meanwhile use headphone audio line to connect to external computer audio output interface. - Page 17 HDMI /HDMI1 / HDMI2 / HDMI3 /HDMI4 HDMI cable 1) Use HDMI line to connect audio and video equipment with HDMI output 2) After line connection, plug in power cord, and switch power On 3) Press to turn equipment ON 4) Press INPUT key to switch to HDMI port...
-
Page 18: Rs232 Serial Port Connection
RS232 Serial port connection Serial port line After using the serial port line to connect central control equipment and the device, certain functions of the device can be controlled via the central control device, such as: device ON/OFF, and adjustment of sound volume, etc. -
Page 19: Android System
8. Android System Call up Annotation menu Take middle point position on the bottom of display screen as the starting point, use finger or stylus to drag towards screen center position to call up touch menu, as shown below. Main annotation menu Annotation submenu Source (Inputs) Screenshot... - Page 20 9. Android System Main window File Manager Display files in Android system memory and Android system external storage...
- Page 21 Browser System Settings Apps...
-
Page 22: Troubleshooting
10. Troubleshooting Board fails to work normally 1. Check whether there are other objects between remote control and television remote control receiving window, blocking signal trans- mission and thus leading to failure of remote control. Remote control failure 2. Check whether the battery terminal in the remote control is correct- ly connected. - Page 23 Video Malfunctions No picture and no sound 1. Check whether the device is in active mode. 2. Check whether the signal wire is plugged in securely, using the corre- sponding INPUT. 3. If in internal computer mode, check whether internal computer is running. With horizontal or vertical 1.
-
Page 24: Maintenance
11. Maintenance Proper maintenance can prevent many early defects. Regular, careful cleaning can keep the device like brand- new. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean screen Mix a small amount of fabric softener or dishwashing deter- gent with warm water. -
Page 25: Repair Service And Contacts
Please contact your local supplier regarding warranty and technical service. You can find all wa- rranty conditions and service partners on our website www.triumphboard.com/support/warranty. If you have any questions please email us at info@triumphboard.com TRIUMPH BOARD a.s. Neklanova 122/15 128 00 Prague 2...
