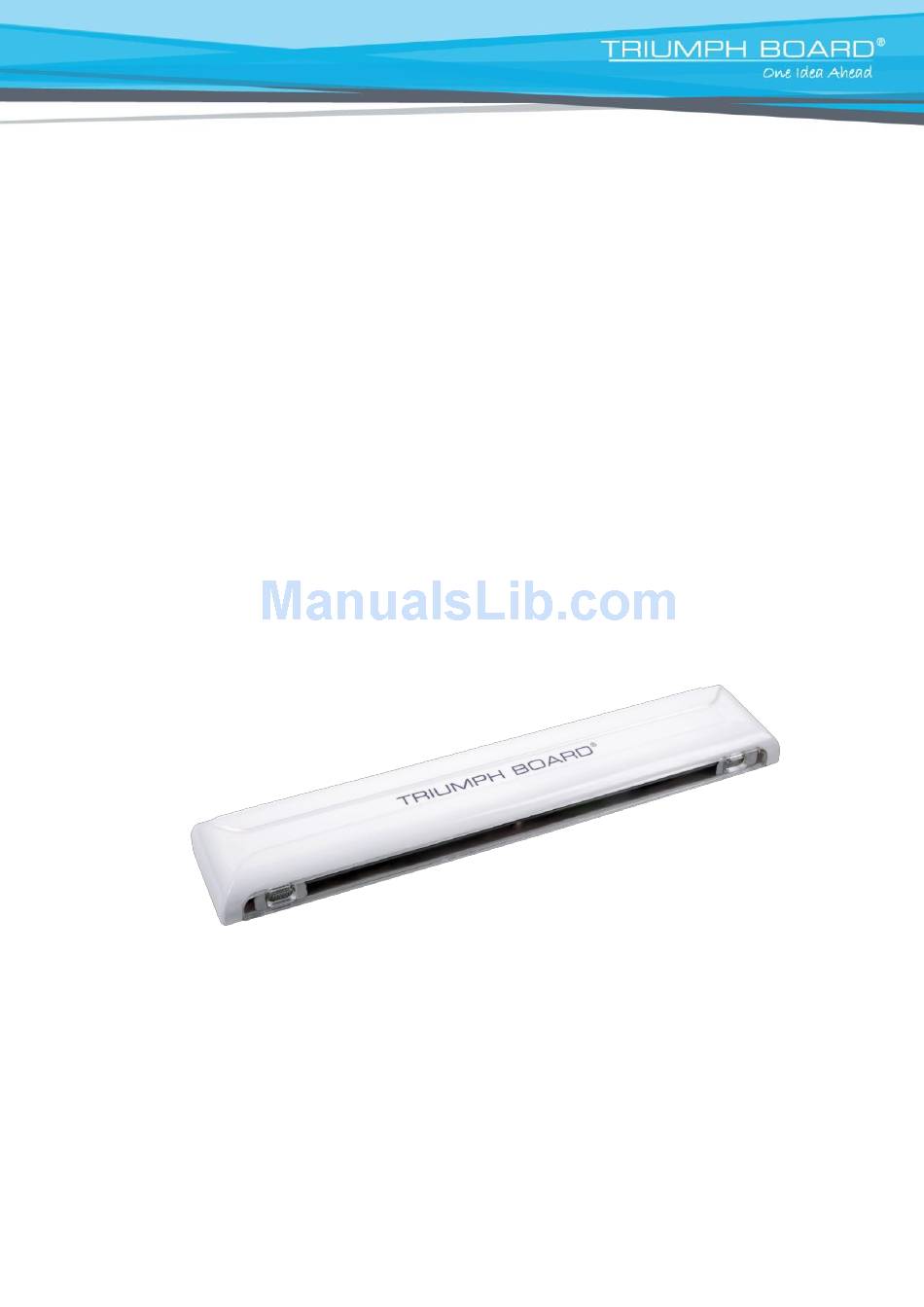

- Page 1 User Manual v6 April 2014 ULTRA SLIM & PORTABLE SLIM TRIUMPH BOARD a.s. , Neklanova 122/15, 128 00 Praha 2, Czech Republic, European Union, www.triumphboard.com...
-
Page 2: Table Of Contents
5) ELECTRONIC STYLUS USAGE 6) STYLUS HOTKEY 7) ULTRA SLIM / PORTABLE SLIM CONNECTION 8) ULTRA SLIM / PORTABLE SLIM SOFTWARE INSTALLATION 9) ULTRA SLIM / PORTABLE SLIM DRIVER 10) HOTKEY SETTINGS 11) PORTABLE SLIM SOFTWARE OPERATION (FOR WINDOWS VISTA & WIN -7) 12) REPAIR SERVICE AND CONTACTS TRIUMPH BOARD a.s. - Page 3 Declare under sole responsibility that the product: TRIUMPH BOARD PORTABLE SLIM / ULTRA SLIM Model: TRIUMPH BOARD PORTABLE SLIM / TRIUMPH BOARD 78“ ULTRA SLIM EAN: 8592580091360, 8592580092046, 8592580092053 / 8592580101199 Is in conformity of essential requirements of EU/CZ directives:...
-
Page 4: Safety Information
Meaning of Signal Words Indicates a potential hazard that could result in serious injury or death and/or property damage. Indicates hazards that could result in minor or moderate injury and/or property damage. TRIUMPH BOARD a.s. Page 4 of 22... - Page 5 The fact that this product operates satisfactorily does not imply that the AC power outlet is grounded (earthed) and that the installation is completely safe. For your safety, if in any doubt about the effective grounding (earthing) of the AC power point, consult a qualified electrician. TRIUMPH BOARD a.s. Page 5 of 22...
- Page 6 Do not alter this product or modify any parts. Alternation or modification can cause fire or electronic shock Before cleaning this product, unplug the power cord or power plug or power adaptor. Electric shock sometimes results. TRIUMPH BOARD a.s. Page 6 of 22...
- Page 7 Keep this product away from radio stations. Keep this product away from IEEE802.11g/b wireless devices and/or switch off those wireless devices when they are not used. Keep this product away from other electric devices. TRIUMPH BOARD a.s. Page 7 of 22...
- Page 8 If this product is fallen down or damaged, turn this product off and unplug the power cord or power plug or power adaptor. Otherwise, it may cause fire or electric shock. TRIUMPH BOARD a.s. Page 8 of 22...
- Page 9 Fasten the screws tightly to avoid the stand or this product fall which may cause injury or damage. Before installation, take the wall material and wall strength into consideration. For details, please consult your dealer. TRIUMPH BOARD a.s. Page 9 of 22...
-
Page 10: Product Description
The principle is similar to calculating the distance by counting between lightnings and thunder during a thunderstorm, and with the TRIUMPH BOARD PORTABLE SLIM it is achieved by measuring the speed of light and sound, transmitted by an electronic pen. The interactive electronic pen is supplied together with the board and has buttons simulating left and right click functionality. - Page 11 3) TECHNICAL SPECIFICATIONS TRIUMPH BOARD ULTRA SLIM / PORTABLE SLIM EAN: 8592580101199 / 8592580091360 21“ - 125” Active Screen Size (mm): Technology: Infrared and ultrasonic Ultrasonic frequency: 40 KHz IR Frequency: 38 KHz Radio frequency: 2.4 GHz Resolution: 4096 x 4096 Accuracy: 1.5 mm...
-
Page 12: Package Contents
USB Cable Hotkey strip / TB Comenius Hotkey strip / RM Easiteach HW Manual Pentray (only with ULTRA SLIM)* * pentray can be positioned anywhere on the bottom edge of ULTRA SLIM 5) ELECTRONIC STYLUS USAGE Item Description Pen Tip... -
Page 13: Stylus Hotkey
15 cm above or below the longer side of the projection area. User must have PC, projector, ULTRA SLIM / PORTABLE SLIM and USB cable or PORTABLE SLIM Wireless Upgrade Kit and connect them as shown in the figures below. - Page 14 ULTRA SLIM / PORTABLE SLIM Wireless Model Connection Diagram Upon the connection is completed, adjust the position of the video projector until the projected Windows screen on the board is within the ULTRA SLIM / PORTABLE SLIM board working area. TRIUMPH BOARD a.s.
-
Page 15: Ultra Slim / Portable Slim Software Installation
8) ULTRA SLIM / PORTABLE SLIM SOFTWARE INSTALLATION Install TB Comenius PORTABLE SLIM software To run the Installation Program, double-click file name “TB Comenius PORTABLE SLIM v6.exe” Click “Next” to install the software Choose destination location and Click “Next” to continue. -
Page 16: Ultra Slim / Portable Slim Driver
Wireless Receiver into computer USB port. 9) ULTRA SLIM / PORTABLE SLIM DRIVER After installed ULTRA SLIM / PORTABLE SLIM software, double click the icon of “TB Comenius Portable Driver” (on the desktop) PORTABLE SLIM or USB Wireless Receiver has been detected and ready to use upon the following dialogue shown. - Page 17 Once enable the auto run, PORTABLE SLIM driver will be run automatically once Windows start. Calibration Calibration is required for PORTABLE SLIM sensor when: - first time of installation; - Or any movement of the projector; - orsensor’s position changed; - or projection size changed TRIUMPH BOARD a.s. Page 17 of 22...
-
Page 18: Hotkey Settings
10 hotkey features are available in TB Comenius PORTABLE SLIM v6 and RM Easiteach software for the user to set up. In the case of the ULTRA SLIM the TB Comenius PORTABLE SLIM v6 hotkey strip is already attached on the right hand side of the board. When using hotkeys with the PORTABLE SLIM always stick the hotkey strip on the side of the board that is opposite the sensor. - Page 19 Hotkey Strip (icons size 20*20 mm) or 50*50 mm for big Hotkey Strip (icon size 50*50 mm). 3) Use electronic pen to point Hotkey strip icons according to black/red cross. 2) RM Easiteach Instalation of RM Hotkeys Driver TRIUMPH BOARD a.s. Page 19 of 22...
- Page 20 2) Choose Hotkey Size – 20*20 mm for small Hotkey Strip (icons size 20*20 mm) or 50*50 mm for big Hotkey Strip (icon size 50*50 mm) 3) Use electronic pen to point Hotkey strip icons according to black/red cross. TRIUMPH BOARD a.s. Page 20 of 22...
-
Page 21: Portable Slim Software Operation (For Windows Vista & Win -7)
Microsoft office Annotations tools will be appeared upon the PORTABLE SLIM interactive PORTABLE SLIM connected with your PC. Under Microsoft Office Annotations tools you can use the annotations to drawing on the top of Power Point, MS Words and Excel directly. TRIUMPH BOARD a.s. Page 21 of 22... -
Page 22: Repair Service And Contacts
. For any questions please email us to info@triumphboard.com DISTRIBUTORE PER L'ITALIA: TRIUMPH BOARD a.s. Neklanova 122/15 128 00 Praha 2 VIA CALABRIA, 15 - 20090 SEGRATE (MI) Czech Republic T. 02 87166000, 06 92938446 - F. 02 87153173 E.
