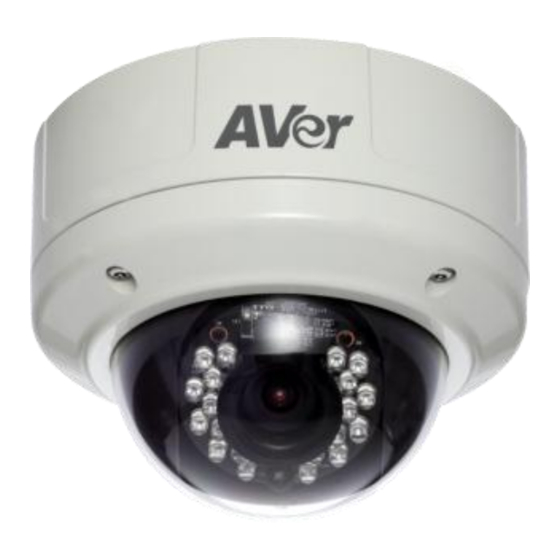

AVer Vandal Dome Type Camera
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV2028-T and is the answer not in the manual?

Questions and answers

Related Manuals for AVer FV2028-T

Summary of Contents for AVer FV2028-T

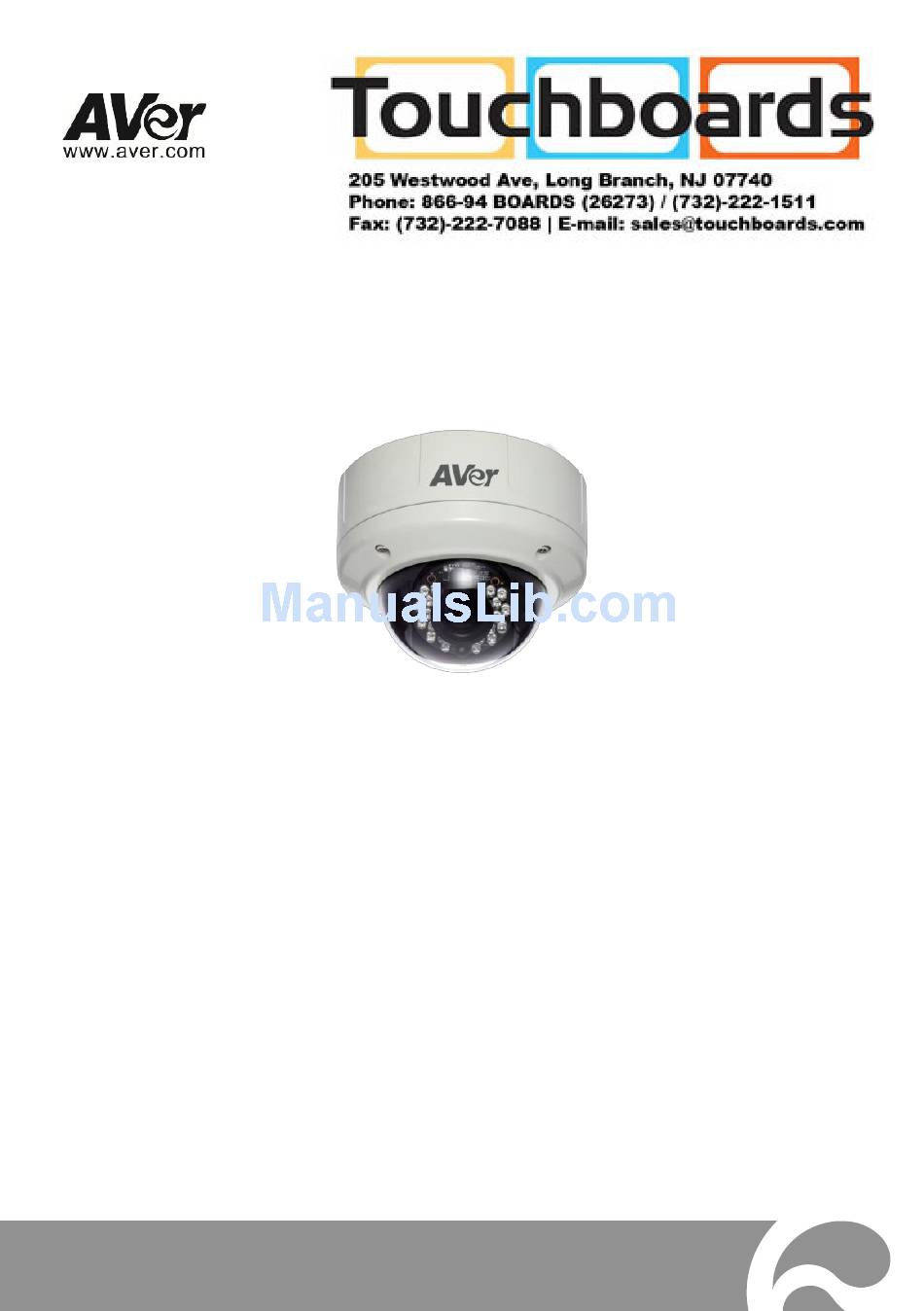

  • Page 1 AVer Vandal Dome Type Camera Installation Guide...

  • Page 2: Table Of Contents

    ................9 NSERTING MICRO ARD TO YSTEM RESETTING HARDWARE ....................10 TECHNICAL SPECIFICATIONS ..................11 FV2028-T (E)/FV2028-TM (E) ..............11 FV3028-RT (E)/FV3028-RTM (E) ..............15 FV2028 (E) ....................19 FCC NOTICE (CLASS B) ....................23 NOTICE ..........................23 WARNING .......................... 23...

  • Page 3: Important Safeguard

    ENGLISH Important Safeguard Do not use power supply with different voltage Do not submerge the unit in the water. other than DC 12V / PoE. Unplug the power of this unit as soon as smoke Unplug the power supply before cleaning. Use or unusual odor is detected.

  • Page 4: Package Contents

    Package Contents The following items are included in the package. AVer Vandal Dome type Software & Manual CD L-type Wrench Camera Alignment Sticker 4 Screws 4 Washers 4 Plastic Anchors Optional Accessories Power Adapter (12V, 2A) * The power adapter will vary depending on the standard power outlet of the country where it is sold.

  • Page 5: Ip Camera Parts

    ENGLISH IP Camera Parts Function Camera Lens Light Sensor Power Jack BNC Jack (Video Out) RJ45 Ethernet Jack I/O Terminal Block Phone Jack (Audio In) Phone Jack (Audio Out)

  • Page 6: Ip Camera Installation

    IP Camera Installation This section provides useful tips on how to adjust the IP camera to meet your needs. Deploying Network Network Connection via Ethernet Switch Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera Connect the power adapter to power jack of camera...

  • Page 7: Power Over Ethernet Connection

    ENGLISH Power over Ethernet Connection AVer vandal dome type camera fully complies with PoE standard. It allows you to use PoE enabled switch or PoE injector to transmit data and power thru single Ethernet cable.  PoE Enabled Switch Connection Diagram ...

  • Page 8: Connecting External Devices To I/O Terminal Block

    Connecting External Devices to I/O Terminal Block Function Power 12V Digital Output Digital Input Ground [Note] Maximum power output is 12V/100mA Internal Connection Diagram of DI/DO...

  • Page 9: Mounting The Ip Camera

    ENGLISH Mounting the IP Camera Place the sticker on the wall surface. Then spot the mark and drill the 5 holes indicated on the sticker. If you are going to run the wire through the lateral side, it’s not necessary to drill through the big hole.

  • Page 10: Focusing The Ip Camera With Bnc Monitor

    Focusing the IP Camera with BNC Monitor The IP camera is supported with BNC analog video out jack which allows you to connect an analog display devices such as an LCD BNC monitor for you to adjust the camera focus and zoom. 1.

  • Page 11: Inserting Microsd Card To System

    ENGLISH Inserting microSD Card to System 1. Open up the IP camera case. 2. Insert microSD card [Note] We recommend to use industrial grade microSD card (support operating temp from -40°C to 85°C) for extreme temperature condition.

  • Page 12: Resetting Hardware

    Resetting Hardware 1. Open the IP camera case. 2. Short PJ1 pins around 10 seconds. Warning!! This will cause all the configuration settings back to factory default.

  • Page 13: Technical Specifications

    ENGLISH Technical Specifications  FV2028-T (E)/FV2028-TM (E) Model FV2028-T (E) FV2028-TM (E) Lens spec. CBC AG3Z0312LMRP-N CBC AGP3Z0312LMRP-E111T51 Lens type vari-focal Lens (Board mount, M19) F/no F/1.2 Iris type DC Iris Focal length f3~9mm H 115.2°(W)~10.1°(T) View Angle V 74.9°(W)~23.1°(T)
  • Page 14 Model FV2028-T (E) FV2028-TM (E) Video Privacy mask areas D-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Corridor Mode Cross Detection Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone external microphone input Network...
  • Page 15 ENGLISH Model FV2028-T (E) FV2028-TM (E) Interface Digital input/output BNC Video output Built-in storage option Micro SDHC & SDXC card (64GB max.) Built-in microphone External microphone input External Audio output General Power supply DC 12V(2A)/PoE PoE (TYP.): 7W (LED/Heater off)
  • Page 16 Model FV2028-T (E) FV2028-TM (E) Software Requirement Windows® XP/7/8 IE 8/9/10/11 (Full Function), Chorme Browser Firefox and Safari (Basic Function) Firmware remote upgrade Yes (via HTTP) Bundled Software ExpreeGO free up to 32CH IPCAM Utility SecureCenter Warranty Main body 3 years...

  • Page 17: Fv3028-Rt (E)/Fv3028-Rtm (E)

    ENGLISH  FV3028-RT (E)/FV3028-RTM (E) Model FV3028-RT (E) FV3028-RTM (E) Lens spec. CBC AG3Z0312LMRP-N CBC AGP3Z0312LMRP-E111T51 Lens type vari-focal Lens (Board mount, M19) F/no F/1.2 Iris type DC Iris Focal length f3~9mm H 92°(W)~30.2°(T) View Angle V 65.2°(W)~23.2°(T) MFZ support N//A Camera image 0.8 Lux in day mode (IR off)
  • Page 18 Model FV3028-RT (E) FV3028-RTM (E) Video Privacy mask areas Sensor-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Corridor Mode Cross Detection Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, Protocols DDNS, PPPoE, Samba, QoS, SNMP(V1/V2c/V3), 802.1X...
  • Page 19 ENGLISH Model FV3028-RT (E) FV3028-RTM (E) Interface Digital input/output BNC Video output Built-in storage option Micro SDHC & SDXC card (64GB max.) Built-in microphone External microphone input External Audio output General Power supply DC 12V(2A)/PoE PoE (TYP.): 7W (LED/Heater off) 14W (LED on, Heater off) 15W (LED off, Heater on) 22W (LED/Heater on)
  • Page 20 Model FV3028-RT (E) FV3028-RTM (E) Software Requirement Windows® XP/7/8 IE 8/9/10/11 (Full Function), Chrome Browser Firefox and Safari (Basic Function) Firmware remote upgrade Yes (via HTTP) Bundled Software ExpressGO free up to 32CH IPCAM Utility SecureCenter Warranty Main body 3 years Accessories 1 year...

  • Page 21: Fv2028 (E)

    ENGLISH  FV2028 (E) Model FV2028 (E) Lens spec. PTK-2M2812N14IR Lens type vari-focal Lens (Board mount, M14) F/no F/1.4 Iris type DC Iris Focal length 2.8~12mm H 81.4°(W)~29°(T) View Angle V 50.1°(W)~18°(T) Camera image 1 Lux in day mode (IR off) Min.
  • Page 22 Model FV2028 (E) Video Motion Detection zones Privacy mask areas D-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Corridor Mode Cross Detection Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC audio compression Encoder Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, protocols...
  • Page 23 ENGLISH Model FV2028 (E) Interface Digital input/output BNC Video output Built-in storage option Micro SDHC & SDXC card (64GB max.) Built-in microphone External microphone input External Audio output General Power supply DC 12V(2A)/PoE PoE (TYP.): 7W (LED off) 14W (LED on) Power consumption DC-IN (TYP.): 5W (LED off)
  • Page 24 Model FV2028 (E) Software Requirement Windows® XP/7/8 IE 8/9/10/11 (Full Function), Chrome Browser Firefox and Safari (Basic Function) Firmware remote upgrade Yes (via HTTP) Bundled Software ExpressGO free up to 32CH IPCAM Utility SecureCenter Warranty Main body 2 years Accessories 1 year...

  • Page 25: Fcc Notice (Class B)

    © 2014 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
  • Page 26 You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...

  • Page 27: Governing Law And Your Rights

    Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
