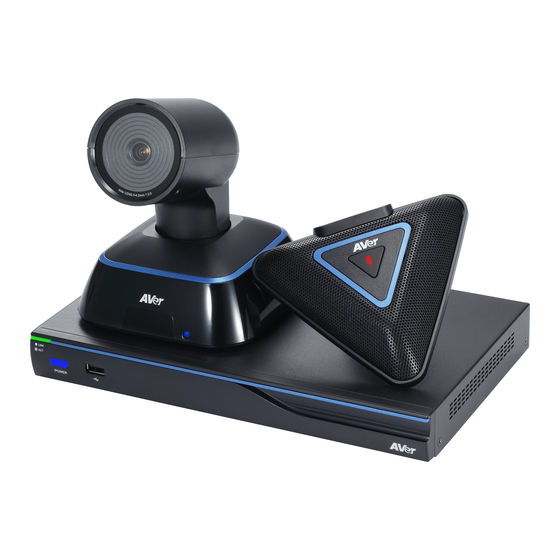

AVer EVC
Quick Installation Guide

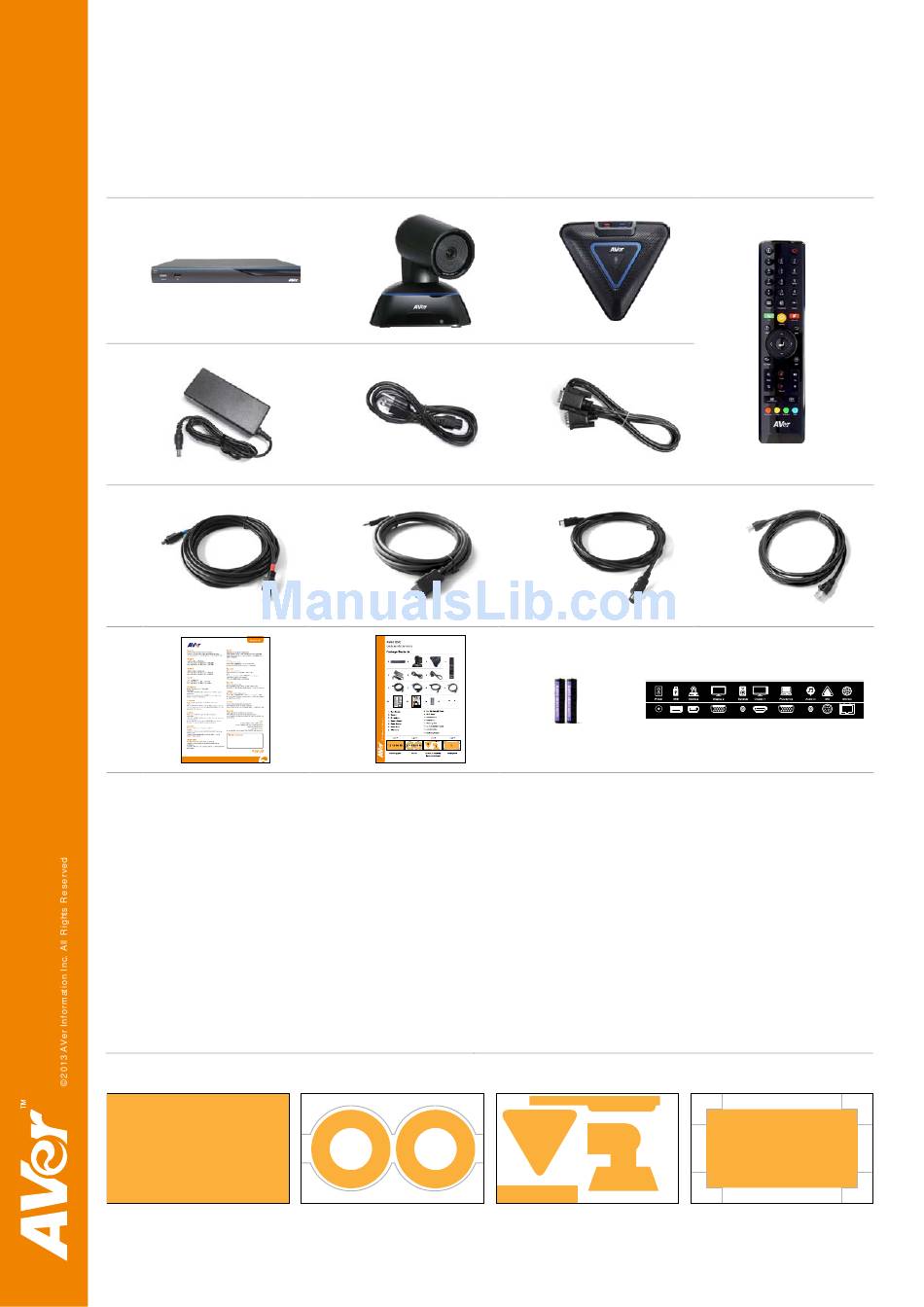

Package Contents
1
5
8
12
1. Main System
2. Camera
3. Microphone
4. Remote Control
5. Power Adapter
6. Power Cord
7. VGA Cable
Layer 1
12 13 14 15
Accessory pack
2
6
9
13
Layer 2
6 7 8 9 10 11
Cables
3
7
10
14
15
8. Mini Din 8 pin MIC Cable
9. HDMI Cable
10. Camera Cable
11. RJ-45 Cable
12. Warranty Card
13. Quick Installation Guide
14. AAA Batteries
15. Back Panel Label
Layer 3
4
3
2
5
Camera, Microphone,
Remote and adapter
4
11
Layer 4
1
Main system
Advertisement
Table of Contents
Related Manuals for AVer EVC
Summary of Contents for AVer EVC
-
Page 1: Quick Installation Guide
AVer EVC Quick Installation Guide Package Contents 8. Mini Din 8 pin MIC Cable 1. Main System 9. HDMI Cable 2. Camera 10. Camera Cable 3. Microphone 11. RJ-45 Cable 4. Remote Control 12. Warranty Card 5. Power Adapter 13. Quick Installation Guide 6. -
Page 2: Connection Diagram
Connection Diagram Wall outlet LCD monitor / LCD TV Laptop Desktop Power cord LCD / DLP projector RJ-45 wall jack Power adapter 3.5mm VGA cable VGA cable Audio cable RJ-45 cable 3.5mm to RCA cable Camera cable HDMI cable MIC cable AUDIO IN L AUDIO IN R LCD TV... - Page 3 There are three possible setup scenarios for most video conferencing users, if yours is: 1. Public IP Configuration (Outside of Firewall). 2. Private IP Configuration (Behind Firewall with Port Forwarding). Please refer to the following table “EVC H.323 Related Port Usage for Firewall Setup” for your firewall Port forwarding setup.
- Page 4 Scenario 1 – Public IP Configuration (Outside of Firewall) Your EVC is connecting directly to the internet. Internet 1. From the remote press “Home”-> “ ” -> “Setting”. 2. Press “ ” -> “Network”. 3. Press “LAN Configuration (IPv4)”. 4. And In the drop-down list “Obtain IP address”, choose “Static IP”.
- Page 5 Scenario 2 –Private IP Configuration (Behind Firewall with Port Forwarding) Your EVC is connecting to the internet through a firewall. Firewall Internet 1. From the remote press “Home”-> “ ” -> “Setting”. 2. Press “ ” -> “Network”. 3. Press “LAN Configuration (IPv4)”.
- Page 6 Scenario 3 – H.460 Gatekeeper with Firewall Traversal Your EVC is connecting to the internet through a firewall and you have a Gatekeeper outside the firewall. Firewall Internet Gatekeeper 1. From the remote press “Home”-> “ ” -> “Setting”. 2. Press “...
-
Page 7: Troubleshooting
For non H.323 ALG firewall, please set the NAT configuration and the WAN IP address on AVer EVC system is entered. We suggest having a fixed public IP address for AVer EVC system. With Dynamic public IP address, it will change after a certain period which depends on your local ISP. - Page 8 4. Disable intranet sites in Compatibility View. Go to “Tools” “Compatibility view settings”. 5. Unclick the checkbox “Display intranet sites in Compatibility View” and then click “Close”. For more information, please visit and download EVC user manual at our website http://www.aver.com. P/N:300AV2C1-DVB...
