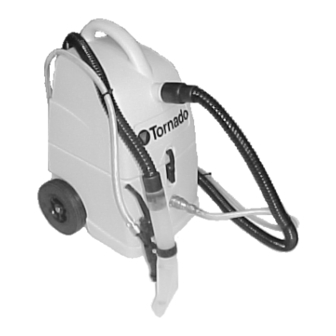

Tornado PS Series 98220 Operation & Maintenance Manual

Tornado PS Series 98220 Operation & Maintenance Manual

Carpet spotters
Hide thumbs Also See for PS Series 98220:

Advertisement

Quick Links

TORNADO INDUSTRIES
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60706
(708) 867-5100 FAX (708) 867-6968
www.tornadovac.com
Tornado
â â â â
Operation & Maintenance Manual
For Commercial Use Only
The PS Series of Carpet Spotters (Series F)
Catalog No.
64220 & 98220 (115v, 60Hz)
98221 (230v, 50HZ)
L2700FG 9/01 ã2001 Tornado Industries
All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PS Series 98220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tornado PS Series 98220

  • Page 1 Tornado â â â â Operation & Maintenance Manual For Commercial Use Only The PS Series of Carpet Spotters (Series F) Catalog No. 64220 & 98220 (115v, 60Hz) 98221 (230v, 50HZ) L2700FG 9/01 ã2001 Tornado Industries All rights reserved.
  • Page 2 NOTES...
  • Page 3 This instruction book covers: CATALOG NO. 98220 98221 64230 SERIES 55 PSI 55 PSI 55 PSI PUMP 94 CFM 82 CFM 94 CFM VACUUM 84”H 68”H 84”H 2 Gal 2 Gal (7.6l) 2 Gal CAPACITY VOLTS 115V 230V 115V AMPS CERTIFICATION *This product conforms to ANSI/UL Standard 561 and is certified to CAN/CSA Standard C22.2 No.
  • Page 4 2 Years: specified here. For full details , contact your Authorized Tornado Parts on all Tornado and Tornado/Karcher Distributor, Service Center, or the 1) 2) cleaning equipment Tornado Technical Service Department.
  • Page 5: Save These Instructions

    IMPORTANT SAFETY INSTRUCTIONS WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRE- CAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: 1. Do not leave machine unattended when plugged in. Unplug from outlet when not in use and before servicing.
  • Page 6 IMPORTANTES MESURES DE SÉCURITÉ L’UTILISATION D’UN APPAREIL ÉLECTRIQUE DEMANDE CERTAINES PRÉCAUTIONS: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER CET APPAREIL. AVERTISSEMENT. POUR RÉDUIRE LES RISQUES D’INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURE: Ne pas laisser l’appareil sans surveillance lorsqui’il est branché. Débrancher lorsque l’appareil n’est pas utilisé...
  • Page 7 GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 8 INSTRUCTIONS VISANT LA MISE À LA TERRE Cet appareil doit etre mis à la terre. En cas de défaillance ou de panne, la mise à la terre fournit au courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon muni d’un conducteur de terre et d’une fiche avec broche de terre.
  • Page 9 FAX: 708/867-6968 All information and specifications printed in the manual and parts list are current at the time of printing. However because of Tornado’s policy of continual product improvement, we reserve the right to make changes at any time without notice.
  • Page 10 To protect your investment, promptly fill out the required information on the warranty card that comes with the unit and mail it back to Tornado Industries Note: Service repair and warranty work is not normally handled at the factory. WARNING...
  • Page 11 GENERAL PRECAUTIONS • Do not use the machine for dry vacuuming. This machine is not fitted with a dry filter. • Use defoamer in the recovery tank at all times to prevent damage to the vacuum motor. • Do not use water in excess of 140 degrees F (60 degrees C). •...
  • Page 12 PREPARING THE MACHINE: WARNING!! To prevent possible disease hazard, before attempting to clean bodily fluid spills, you must kill any viruses, germs or bacteria present in the bodily fluid. 1. Loosen the two latches that hold the recovery tank to the solution tank. Lift the recovery tank off.
  • Page 13 OPERATING THE PROSPOT: 1. Turn the switch, located on the rear panel, to “VACUUM/SPRAY”. 2. Place the hand tool on the surface to be cleaned and squeeze the solution lever. Move tool over surface to be cleaned. Note: Do not apply too much solution to upholstery to minimize dry time.
  • Page 14 damaging the finish or rusting the metal glides, if placing furniture on moist carpeting. • Identify the type of carpet fiber to be cleaned. Most carpet fibers in use are nylon or acrylic based. Best results in cleaning would be obtained if hot water is used to clean these types of fibers.
  • Page 15 • Inspect the vacuum motor carbon brushes after every 700 hours of use replace, if necessary. Be sure to use genuine Tornado parts and that service is provided by an • authorized Tornado Service Center. 1-800-VACUUMS Use of non-OEM...
  • Page 16 SWITCH-ROCKER, DPDT (3 POS.) 15A 30472 BRACKET-VAC. MOTOR MT'G 30475 BRACKET-PUMP MT'G 31471 SCREW-PHILLIPS PAN HEAD MACHINE # I0-24 x 3/8 30678 DECAL-"TORNADO" 30814 LINE FILTER 31067 HOSE-SOLUTION (PUMP) 19527 ASS'Y POWER CORD 115V (64230 & 98220 ONLY) 19499 (46)
  • Page 17 ES SERIES CARPET SPOTTERS 64230, 98220 & 98221 MAIN ASSEMBLY – EXPLODED VIEW (REF. DRAWING 98221)
  • Page 18 ES SERIES PORTABLE CARPET SPOTTERS 64230, 98220, & 98221 HANDLE ASS’Y (REF. DWG. 31215) ITEM NO. DESCRIPTION PART NO. QTY. Washer-Lock E/T #10 01713 Screw-Phillips Pan Head Machine #10-24 X 1.000 19617 Bracket-Pump Mounting (For Reference) 31471 Handle-Transport 31214...
  • Page 19 ES SERIES PORTABLE CARPET SPOTTERS 64230, 98220, & 98221 ASS'Y VAC./PRESSURE HOSE (REF. DWG. 30744) ITEM NO. DESCRIPTION PART NO. QTY. Suction Hose, 8' 30735/19529 Solution Hose Ass'y 30801/19639/19535 Tool-Utility 30857 Plastic Ties-Black 18706 * = NOT SHOWN...
  • Page 20 ES SERIES PORTABLE CARPET SPOTTERS 64230, 98220 CIRCUIT ASSEMBLY (REF. DWG. 98220A) ITEM NO. DESCRIPTION PART NO. QTY. WASHER-LOCK (H/S) #10 01713 SCREW-TCT (F) PAN HEAD #10-32 X 3/8" 03261 TERMINAL-CLOSED END CRIMP(INS) 06824 STRAIN RELIEF(LIQ.TITE) .35 DIA. CORD 18793 LEAD-14 GA.
  • Page 21 ES SERIES PORTABLE CARPET SPOTTERS (230V) MODEL 98221 CIRCUIT ASSEMBLY /PARTS LIST (ref. drawing 31078) ITEM DESCRIPTION PART QTY. WASHER-LOCK (H/S) #10 01713 SCREW-TCT (F) PAN HEAD #10-32 X 3/8" 03261 TERMINAL-CLOSED END CRIMP(INS) 06824 STRAIN RELIEF(LIQ. TITE) .35 DIA. CORD 18793 1/4"...
