TORNADO
INDUSTRIES
333 Charles Court
Unit 109
West Chicago, IL 60185
(800) 822-8867 FAX (817) 551-6507
www.tornadovac.com
Tornado
Operation and Maintenance Manual
For Commercial Use Only
Pro-Glazer Model PG K17-21, K17-24, 17-24-C, 17-28
Catalog No.
97560T, 97570T, 97571T, 97575T
Effective 7/1/2011
For Parts List see L7575HDP
Form No. L7575ID
Revised 07/11 2011 Tornado
Industries All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-Glazer PG K17-21 and is the answer not in the manual?

Questions and answers

Vincent Santucci
May 6, 2025

I Had to replace my Battery and I can't find out how to hook the cables up as the key switch is also wired to the battery

0

Subscribe to Our Youtube Channel

Related Manuals for Tornado Pro-Glazer PG K17-21

Summary of Contents for Tornado Pro-Glazer PG K17-21

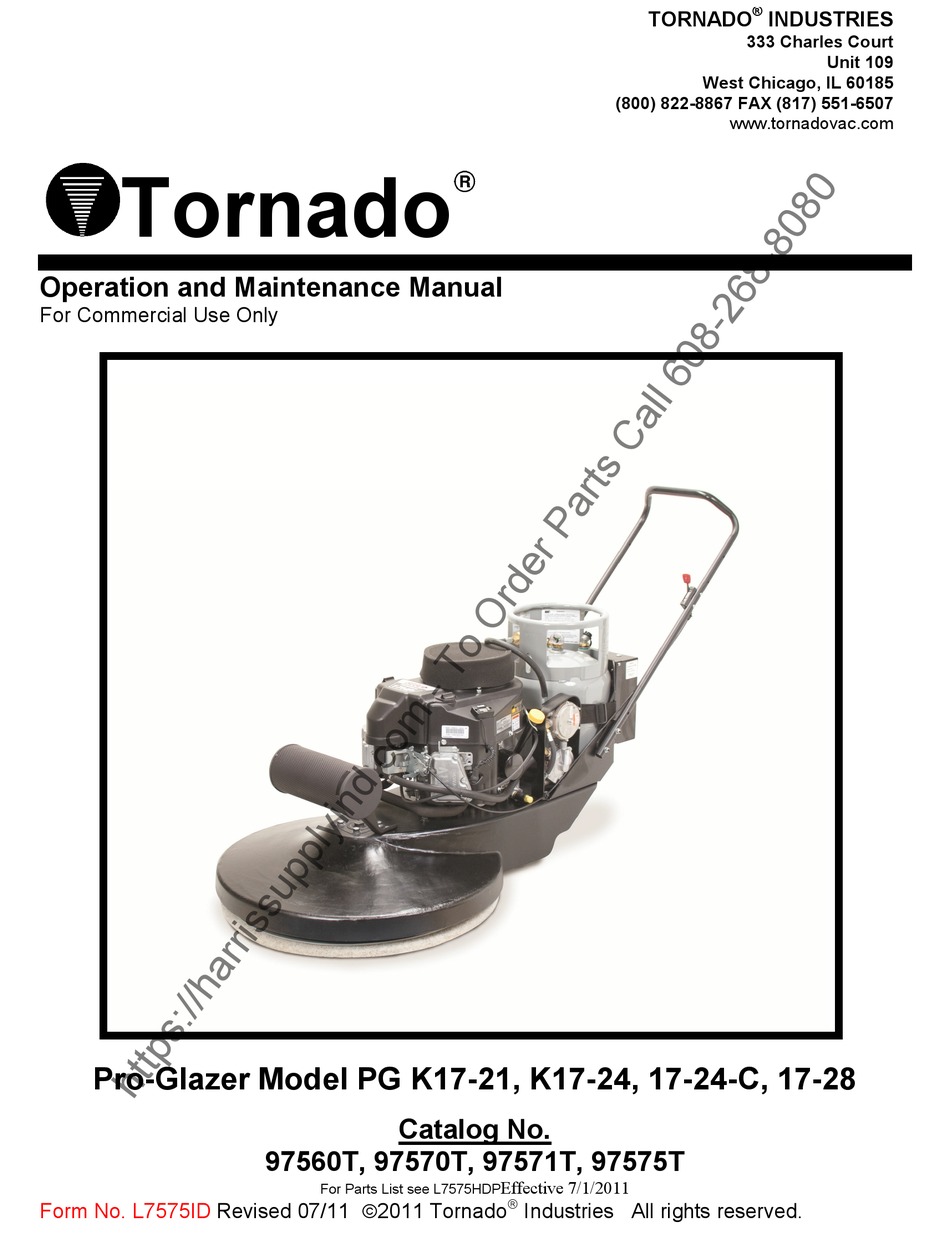

  • Page 1 Operation and Maintenance Manual For Commercial Use Only Pro-Glazer Model PG K17-21, K17-24, 17-24-C, 17-28 Catalog No. 97560T, 97570T, 97571T, 97575T Effective 7/1/2011 For Parts List see L7575HDP  Form No. L7575ID Revised 07/11 2011 Tornado Industries All rights reserved.

  • Page 2: Table Of Contents

    This illustrated instruction book covers: MODEL Pro-Glazer PG K17-21 Pro-Glazer PG K17-24 Pro-Glazer PG K17-28 PAD SIZE 21” 24” 28” CATALOG NO. 97560T 97570T 97575T SERIES ENG. TYPE KAWASAKI KAWASAKI KAWASAKI CLUTCH NONE NONE ENGINE SIZE (CC) ENGINE (HP) All specifications are subject to change without notice.

  • Page 3: Tornado Warranty Statement

    All non-wear item parts purchased after warranty expiration are warranted for 90 days. Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after dealer purchased the unit from Tornado, whichever comes first.

  • Page 4: Limited Warranty For Kawasaki Modified Engines

    30 days. c.) As a small off-road engine owner, you should also be aware that Tornado Industries, LLC may deny you warranty coverage if your small off-road engine or a part failed due to abuse, neglect, improper maintenance or unapproved modifications.
  • Page 5 No dealer is authorized to modify this Tornado Industries, LLC Limited Emission Control Systems Warranty. d.) Tornado Industries, Inc. is not liable for parts that are not genuine Tornado Industries, LLC parts except when genuine Tornado Industries, LLC parts cause damage to non-Tornado Industries, LLC parts.

  • Page 6: Safety Instructions

    Tornado machines are built tough and durable, but do not abuse the machine or mechanical damage and/or personal injury could result. With proper care and maintenance this unit will give you trouble- free operation for years to come.

  • Page 7: Machine Specifications

    WARNING: Do not put hands under base - rotating parts could cause injury. Always keep hands, feet, and loose fitting clothing away from moving parts to prevent possible injuries. Use care to keep any electrical supply from contacting moving parts such as floor brushes or pads. •...

  • Page 8: Operating Instructions

    OPERATING AND MAINTENANCE INSTRUCTIONS OPERATION OF THE MACHINE Your Tornado® Floor Machine is ready for operation as soon as it is unpacked. Remove the machine from the pallet and discard bolts. Before beginning any operation, please read your Kawasaki Owners Manual.

  • Page 9: Mounting Pad & Other Attachments

    Then, rotate the pad driver counterclockwise to unscrew it from the main shaft. For long life and best results always use genuine TORNADO® accessories. MAINTENANCE OF THE PAD HOLDER Remove the pad holder when the machine is not in use, and hang on wall peg or similar holder.

  • Page 10: Maintenance Table

    BELT MAINTENANCE (WARNING: REMOVE LP TANK BEFORE TURNING OVER THE MACHINE) To change a broken or worn belt, turn the machine on its side and remove the pad and pad driver. Using a wrench, loosen the hex bolt for the pulley tensioner. Once the tensioner is loose, the belt can be easily removed.

  • Page 11: Troubleshooting Table

    Troubleshooting Table: SYMPTOM POSSIBLE CAUSES Will Not Start/Hard to Start Empty fuel tank. Faulty carburetor, ignition coil, or valves. Faulty battery or ignition key switch. Faulty head gasket, piston, cylinder, valves, or piston ring. Loose cylinder head bolts. Clogged air filter elements. Faulty fuel pressure regulator.

This manual is also suitable for:

Pro-glazer pg k17-24Pro-glazer pg 17-24-cPro-glazer pg 17-2897560t97570t97571t ... Show all
