Operation and Maintenance Manual
For Commercial Use Only

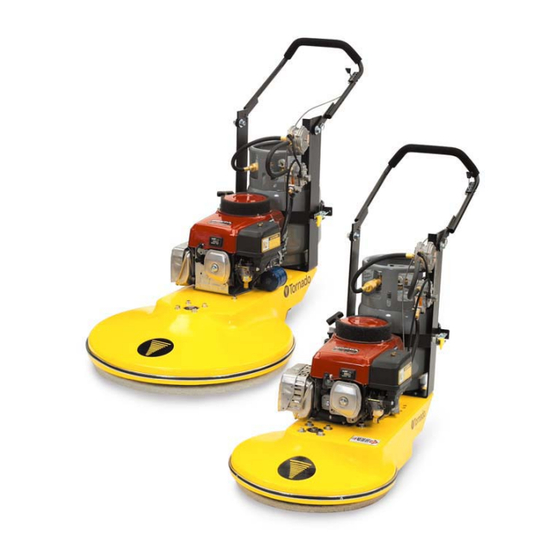

Model PG7450 Pro-Glazer H13-28
Form No. L7450DC Revised 01/06 ¤2006 Tornado
(708) 867-5100 FAX (708) 867-6968
Catalog No.
97450
See L7450DCP for Parts List
Effective 1/16/06
£
®
TORNADO
INDUSTRIES
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60706
www.tornadovac.com
Industries. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-Glazer H13-28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tornado Pro-Glazer H13-28

  • Page 1 (708) 867-5100 FAX (708) 867-6968 www.tornadovac.com Tornado Operation and Maintenance Manual For Commercial Use Only Model PG7450 Pro-Glazer H13-28 Catalog No. 97450 See L7450DCP for Parts List Effective 1/16/06 £ Form No. L7450DC Revised 01/06 ¤2006 Tornado Industries. All rights reserved.
  • Page 2: Table Of Contents

    This illustrated instruction book covers: MODEL Pro Glazer H13-28 PAD SIZE 28" CATALOG NO. 97450 HONDA ENG. TYPE HONDA CLUTCH OPTIONAL ENGINE SIZE (CC) ENGINE (HP) All specifications are subject to change without notice. TABLE OF CONTENTS: Standard Warranty Safety Instructions Operating Instructions Starting Procedure Mounting Pad &...
  • Page 3 All non-wear item parts purchased after warranty expiration are warranted for 90 days. Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after dealer purchased the unit from Tornado, whichever comes first.
  • Page 4: Safety Instructions

    Although NFPA 588-4.5 says…” these machines shall be permitted to be used in buildings frequented by the public”, the Tornado Co. suggests to avoid inhaling exhaust flames and never run the engine in a closed building or confined area without proper ventilation.
  • Page 5 WARNING: Do not put hands under base - rotating parts could cause injury. Always keep hands feet and loose fitting clothing away from moving parts to prevent possible injuries. Use care to keep any electrical supply from contacting moving parts, such as floor brushes or pads. Do not use machine in areas where flammable and/or explosive vapors or dust are present.
  • Page 6: Starting Procedure

    OPERATING AND MAINTENANCE INSTRUCTIONS OPERATION OF MACHINE Your Tornado® Floor machine is ready for operation as soon as it is unpacked. Remove the machine from the pallet and discard bolts. Before any operation should begin, please read your Engine Operation Manual and your Owner’s Manual.
  • Page 7 Use a 3/4” wrench to hold the main shaft, which is located between the four bolts in the front and on the top of the machine. Then, rotate the pad driver counterclockwise to unscrew it from the main shaft. For long life and best results always use genuine TORNADO® accessories.
  • Page 8 MAINTENANCE OF THE PAD HOLDER Remove the pad holder when the machine is not in use and hang on wall peg or similar holder POLISHING Use 3/4” to 1” thick BEIGE high speed burnishing pads. Floors should be dry mopped to remove grit.
  • Page 9: Maintenance Table

    BELT MAINTENANCE (WARNING : REMOVE LP TANK BEFORE TURNING OVER THE MACHINE) To change a broken or worn belt, turn the machine on its side and remove the pad and pad driver. NOTE: look for the, “THIS SIDE UP” decal on the side of the machine. The Honda engine can only be tilted on one side due to its carb filter location.
  • Page 10: Trouble Shooting Table

    Trouble Shooting Table: SYMPTOM POSSIBLE CAUSES Engine Stops Running Dirty air filter. High exhaust emissions. Out of fuel. Low oil. Engine Lacks Power Leaking head gasket. Insufficient vacuum. Governor needs adjusting. No compression - worn rings. Check air filters. Smell of Burned Rubber Belt out of adjustment.
