Tornado
Operation and Maintenance Manual
For Commercial Use Only
Model PG7430 Pro-Glazer H11-21
Form No. L7430DC Revised 01/06 ¤2006 Tornado
(708) 867-5100 FAX (708) 867-6968
Catalog No.
97430
See L7430DCP for Parts List
Effective 1/16/06
£
®
TORNADO
INDUSTRIES
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60706
www.tornadovac.com
Industries All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tornado PG7430 Pro-Glazer H11-21
Summary of Contents for Tornado PG7430 Pro-Glazer H11-21

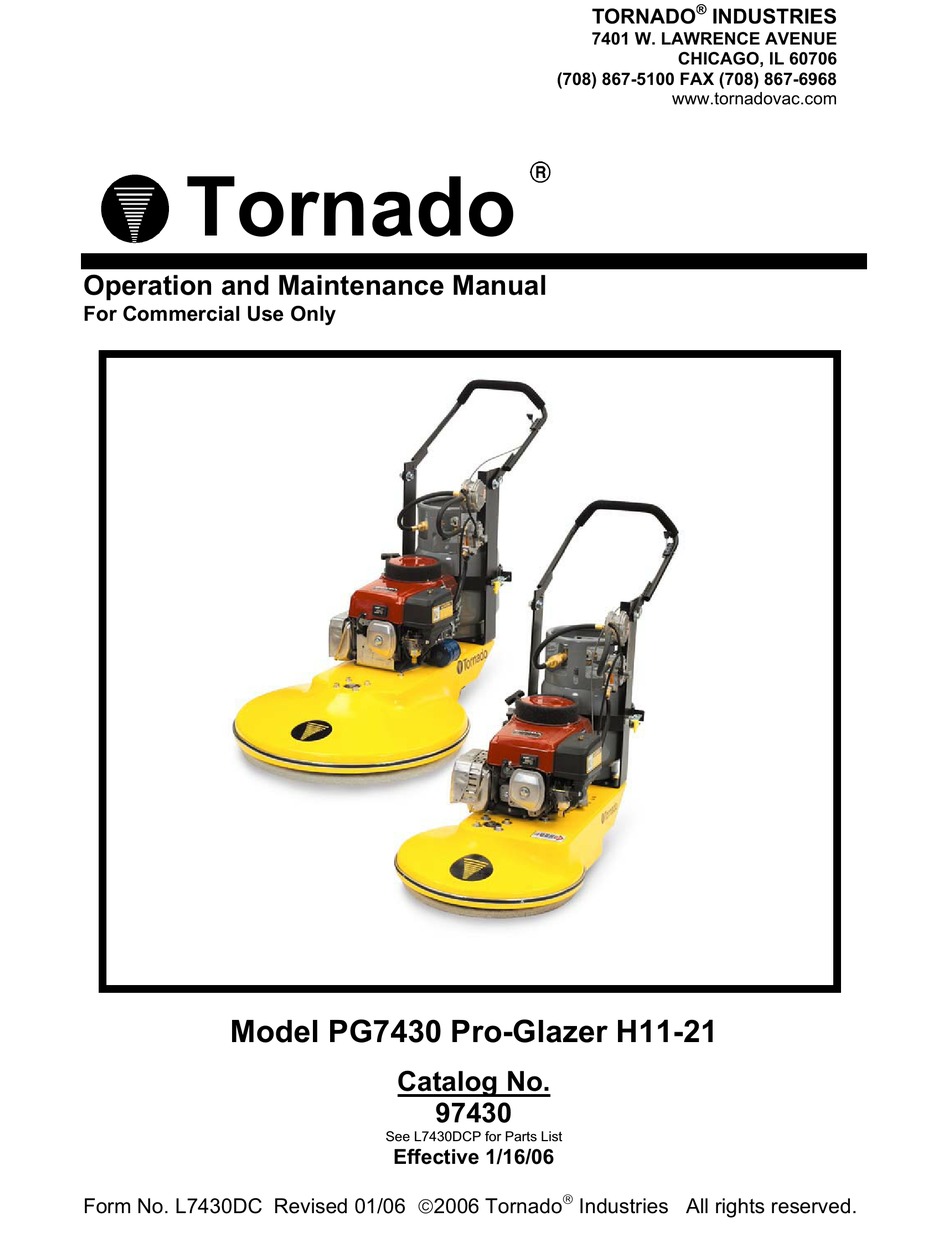

- Page 1 (708) 867-5100 FAX (708) 867-6968 www.tornadovac.com Tornado Operation and Maintenance Manual For Commercial Use Only Model PG7430 Pro-Glazer H11-21 Catalog No. 97430 See L7430DCP for Parts List Effective 1/16/06 £ Form No. L7430DC Revised 01/06 ¤2006 Tornado Industries All rights reserved.
- Page 2 This illustrated instruction book covers: MODEL Pro Glazer H11-21 PAD SIZE 21" CATALOG NO. 97430 HONDA ENG. TYPE HONDA CLUTCH ENGINE SIZE (CC) ENGINE (HP) All specifications are subject to change without notice. TABLE OF CONTENTS: Warranty Statement Safety Instructions Operating Instructions Starting Procedure Mounting Pad &...
- Page 3 All non-wear item parts purchased after warranty expiration are warranted for 90 days. Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after dealer purchased the unit from Tornado, whichever comes first.
-
Page 4: Important Safety Instructions
Although NFPA 588-4.5 says…” these machines shall be permitted to be used in buildings frequented by the public”, the Tornado Co. suggests to avoid inhaling exhaust flames and never run the engine in a closed building or confined area without proper ventilation. -
Page 5: Machine Specifications
WARNING: Do not put hands under base - rotating parts could cause injury. Always keep hands feet and loose fitting clothing away from moving parts to prevent possible injuries. Use care to keep any electrical supply from contacting moving parts, such as floor brushes or pads. Do not use machine in areas where flammable and/or explosive vapors or dust are present. -
Page 6: Operation Of Machine
OPERATING AND MAINTENANCE INSTRUCTIONS OPERATION OF MACHINE Your Tornado® Floor machine is ready for operation as soon as it is unpacked. Remove the machine from the pallet and discard bolts. Before any operation should begin, please read your Engine Operation Manual and your Owner’s Manual. -
Page 7: Stopping Engine
Use a 3/4” wrench to hold the main shaft, which is located between the four bolts in the front and on the top of the machine. Then, rotate the pad driver counterclockwise to unscrew it from the main shaft. For long life and best results always use genuine TORNADO® accessories. - Page 8 MAINTENANCE OF THE PAD HOLDER Remove the pad holder when the machine is not in use and hang on wall peg or similar holder POLISHING Use 3/4” to 1” thick BEIGE high speed burnishing pads. Floors should be dry mopped to remove grit.
-
Page 9: Belt Maintenance
BELT MAINTENANCE (WARNING: REMOVE LP TANK BEFORE TURNING OVER THE MACHINE) To change a broken or worn belt, turn the machine on its side and remove the pad and pad driver. NOTE: look for the, “THIS SIDE UP” decal on the side of the machine. The Honda engine can only be tilted on one side due to its carb filter location. -
Page 10: Troubleshooting Table
Trouble Shooting Table: SYMPTOM POSSIBLE CAUSES Engine Stops Running Dirty air filter. High exhaust emissions. Out of fuel. Low oil. Engine Lacks Power Leaking head gasket. Insufficient vacuum. Governor needs adjusting. No compression - worn rings. Check air filters. Smell of Burned Rubber Belt out of adjustment.
