TORNADO
THE BI-SPEED FLOOR MACHINES
OPERATIONS MANUAL / ILLUSTRATED
Form No. L2136HK 10/00
2000 Tornado
Industries, Inc. All rights reserved.
CATALOG NOS.
98473 & 98480 (115V, 60Hz)
98474 & 98481 (230V, 50Hz)
PARTS
FOR COMMERCIAL USE ONLY
®
TORNADO
INDUSTRIES
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60706
(708) 867-5100 FAX (708) 867-6968
www.tornadovac.com
Advertisement
Related Manuals for Tornado 98473
Summary of Contents for Tornado 98473

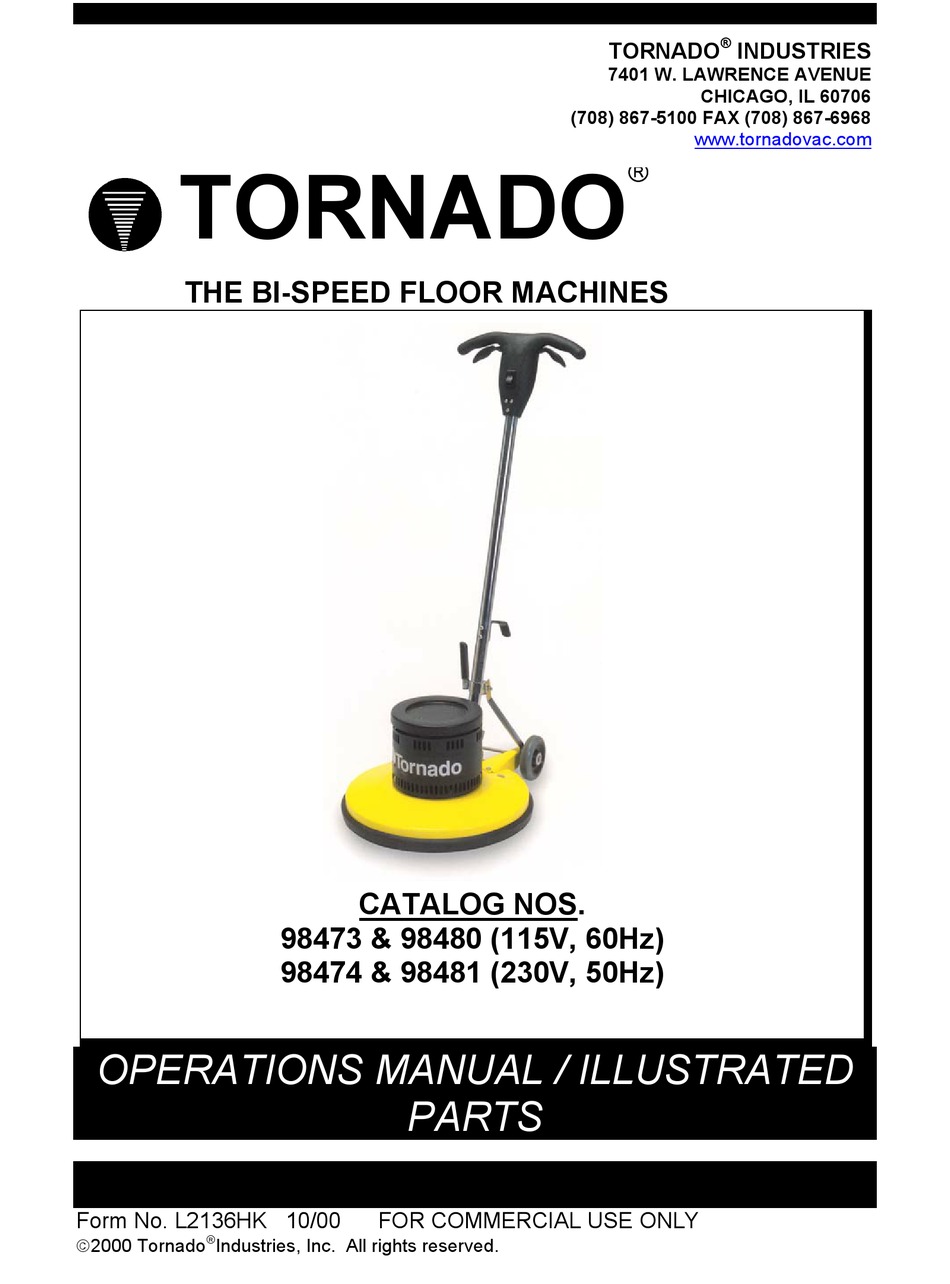

- Page 1 CHICAGO, IL 60706 (708) 867-5100 FAX (708) 867-6968 www.tornadovac.com TORNADO THE BI-SPEED FLOOR MACHINES CATALOG NOS. 98473 & 98480 (115V, 60Hz) 98474 & 98481 (230V, 50Hz) OPERATIONS MANUAL / ILLUSTRATED PARTS Form No. L2136HK 10/00 FOR COMMERCIAL USE ONLY ...
- Page 2 S t a n d a r d W a r r a n t y P r o g r a m * 10 Years: All plastic tanks and rotationally-molded bodies 2 Years: Parts and Labor on all Tornado and Tornado/Karcher cleaning equipment ** 1 Year: Warranty on batteries, one full year, not pro-rated.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS FOR COMMERCIAL USE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: Do not leave machine when plugged in. Unplug from outlet when not in use and before changing pads or attempting any maintenance or adjustment.
-
Page 4: Save These Instructions
SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, of grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. - Page 5 FAX: 708/867-6968 All information and specifications printed in the manual and parts list are current at the time of printing. However, because of Tornado’s policy of continual product improvement, we reserve the right to make changes at any time without notice.
- Page 6 All repairs must be done by a operation instructions from your safety qualified and authorized repair center. director or your authorized Tornado Non warranted repairs will be billed distributor. back to the owner of the unit.
- Page 7 500 hours of use. Check carbon brush wear every 500 hours of use. Replace • Be sure to use Tornado genuine parts when brushes are 3/8” long. Only an and that an authorized Tornado Service authorized service representative should center provides service.
-
Page 8: Base Assembly
BI-SPEED FLOOR MACHINE 98473 & 98480 (115V), 98474 (230V) BASE ASSEMBLY ITEM NO PART NO DESCRIPTION 01577 WASHER-LOCK (17" UNIT ONLY) 01577 WASHER-LOCK (20" UNIT ONLY) 02109 SCREW- HEX. HEAD CAP (17" UNIT ONLY) 02109 SCREW- HEX. HEAD CAP (20" UNIT ONLY) 03470 RETAINING RING - 1/2 "E"... - Page 9 BI-SPEED FLOOR MACHINE EXPLODED VIEW BASE ASSEMBLY...
- Page 10 BI-SPEED FLOOR MACHINES 98473, 98480 (115V, 60Hz) 98474 (230V, 50Hz) UPPER HANDLE ASSEMBLY ITEM NO PART NO DESCRIPTION 19359 HANDLE - REAR HALF 19360 HANDLE - FRONT HALF 19926 CARRIER 19932 SWITCH, PUSHBUTTON 19357 SWITCH, PUSHBUTTON (230V) 19922 SPRING, COMPRESSION STEEL MUSIC WIRE...
- Page 11 BI-SPEED FLOOR MACHINE EXPLODED VIEW UPPER HANDLE ASSEMBLY...
- Page 12 BI-SPEED FLOOR MACHINES 98473, 98480 (115V) 98474 (230V) LOWER HANDLE ASSEMBLY ITEM NO PART NO DESCRIPTION 19465 HANDLE TUBE 10407 ASSEMBLY-CABLE HOOK 10398 SCREW-ROUND HEAD 01574 WASHER-LOCK (H/S) 1/4" 00685 NUT-ACORN 07526 BRACKET-HANDLE TUBE CLAMP 07547 PIVOT-HANDLE TUBE CLAMP LEVER...
- Page 13 BI-SPEED FLOOR MACHINE EXPLODED VIEW LOWER HANDLE ASSEMBLY...
- Page 14 BI-SPEED FLOOR MACHINE 98473 & 98480 (115V) WIRING DIAGRAM ITEM NO PART NO DESCRIPTION 19466 LEAD-14 GA. x 3" BLACK 19467 LEAD-14 GA. x 3" BLACK 19468 LEAD-14 GA. x 3" RED 30212 SWITCH - ROCKER 19464 ASSEMBLY - HANDLE CABLE...
