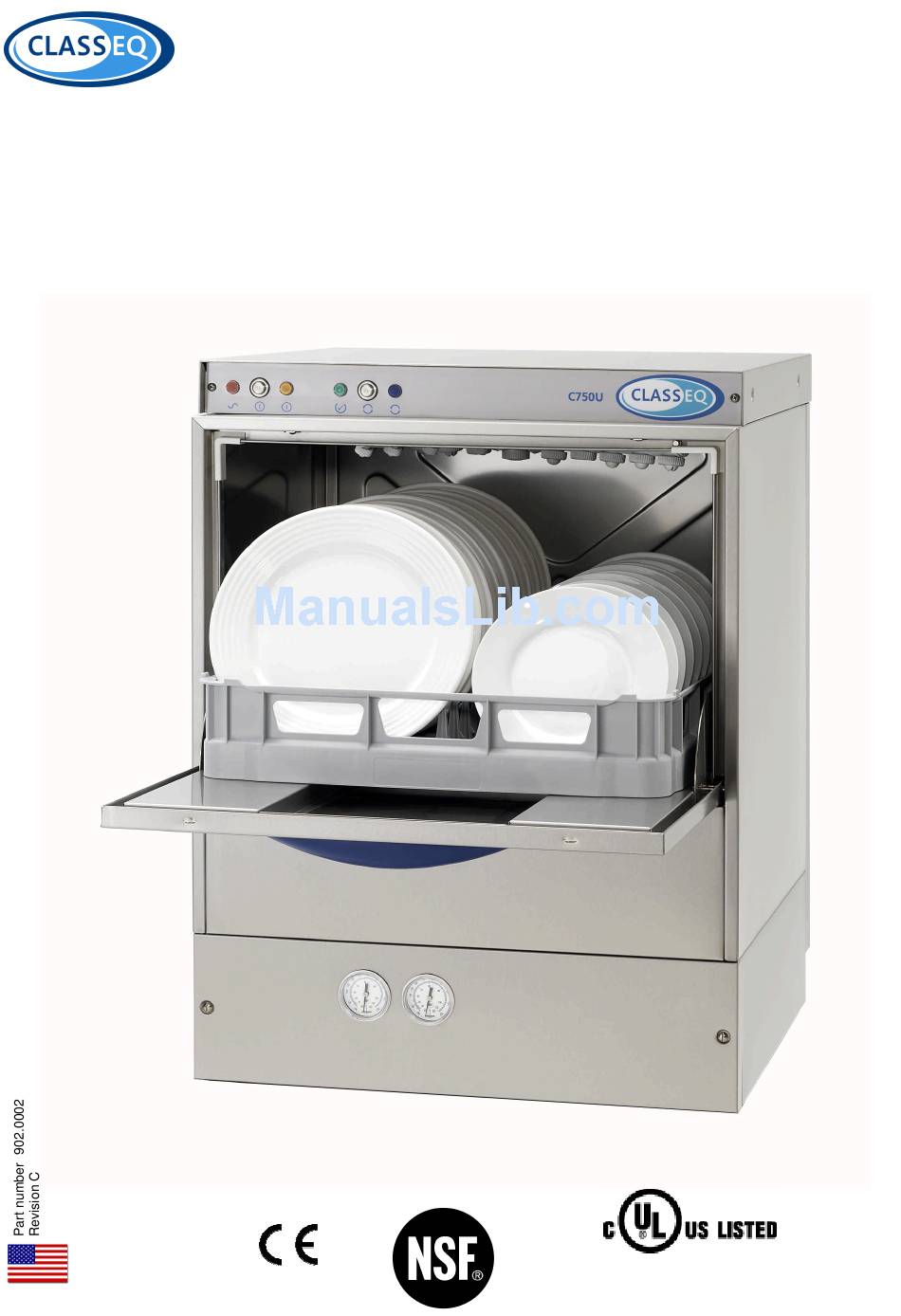

- Page 1 Installation Installation & & Operators Manual Operators Manual C200G, C300G C200G, C300G C500U, C750U & C850P C500U, C750U & C850P DISHWASHERS, COMMERCIAL 51GA...
-
Page 2: Table Of Contents
Installation and Operation instructions Installation and Operation instructions For ‘Classeq Inc.’ under counter range of glass and dishwashers. Section Title Page(s) Safety instructions The appliance Installation 2 - 4 Commissioning 4 - 5 Operation 6 - 7 Cleaning Trouble shooting... -
Page 3: Safety Instructions
Installation should only be carried out by a ‘Classeq’ approved technician, and in accordance with current regulations and within our instructions. Modification : ‘Classeq Inc.’ reserves the right to modify either the appliance or the contents of these instructions without notice. Operation : The appliance should only be used by a trained operator as instructed in section 5 of this manual. -
Page 4: Installation
Connection : The main electrical connection must be made via the field terminal block, which is located : • C200G, C500U, C300G and C750U - Under the top panel, front right hand side of the appliance. • C850P - Behind the front lower panel, located at the bottom of the control panel. - Page 5 Water supply restrictions : Water supply constraints must be adhered to. In hard water areas, Classeq advises that a external water softener is fitted to the supply of the appliance, please consult your agent or Classeq for more information. Do not connect to hot water supply exceeding a temperature of 1 31ºF (55°c).
-
Page 6: Commissioning
Internal prime switch located machine one on the front lower panel and the other inside the machine, on the chemical pump Classeq would recommend that the bracket, Classeq recommends external switch is used for priming the that this is only used by quali- chemical. -
Page 7: Commissioning
C200G C300G C500U C750U C850P Rinse & wash tank temperatures : To ensure NSF compliance, the water temperatures on ’Classeq’ range of appliances must be set to the following. Temperatures (minimum) Machine type Rinse water Wash water C200G, C300G, C500U, C750U & C850P 180ºF (82°c) -
Page 8: Operation
Commercial appliances, wash results can be effected by external considerations such as incoming water temperature, pressure, hardness and choice of chemicals, ‘Classeq’ recommends that your appliance is either connected to a water softener or a softened water supply, for further details on water softeners please contact the supplier of your appliance. -
Page 9: Operation
As state section 4.3 of this manual, it will be possible to start a cycle prior to the ‘Machine Green’ lamp being illuminated, to ensure NSF compliance ‘Classeq’ recommends that you wait for the lamp to be illuminated before requesting a cycle to commence. -
Page 10: Cleaning
Cleaning Cleaning Prior to cleaning : Switch off and isolate electrical supply before cleaning the appliance WARNING DO NOT use cleaning agents that contain CHLORINE, BLEACH or HYPOCHLORITE. DO NOT use STEEL WOOL, WIRE BRUSHES or any other abrasive materials. DO NOT jet wash or hose pipe the appliance down either internally or on the exterior Internal cleaning : Remove wash / rinse arms and filters from within the appliance, now remove... -
Page 11: Trouble Shooting
Trouble shooting Trouble shooting • Before placing a service call, please check the following: • Check the appliance is connected to the main water and electricity supply and both are turned • Check levels of chemicals within the rinse aid and detergent bottles. •... - Page 12 Poor wash results : • Check and replenish chemicals. • Check and clean wash and rinse jets on wash arm assembly. • Clean filters within appliance and check that they are fitted correctly. • Check water supply is ON and fully open. •...
- Page 13 Drawn M. Downing DCN0053 C200G & C500U - Wiring Diagram (USA) Production M.D. 18/01/06 are the confidential and copywright property of CLASSEQ LTD and must Approved T. Lovatt DCN0051 Production M.D. 06/09/05 not be disclosed, loaned, copied or used for manufacturing, tendering or Standards Loom / Dwg No.
- Page 14 M. Downing C300G & C750U - Wiring Diagram (USA) DCN0051 Production M.D. 18/01/06 are the confidential and copywright property of CLASSEQ LTD and must Approved T. Lovatt Production M.S. 06/09/05 not be disclosed, loaned, copied or used for manufacturing, tendering or Standards Loom / Dwg No.
- Page 15 Drawn M. Downing DCN-0063 Trip posi M.D. 11/09/06 C850P - Wiring Diagram (USA) are the confidential and copywright property of CLASSEQ LTD and must Approved T. Lovatt DCN0062 3 Phase J.B. 22/08/06 not be disclosed, loaned, copied or used for manufacturing, tendering or Standards Loom / Dwg No.
- Page 16 Notes Classeq Inc. 1006 Corporate Lane Export PA15632 Tel: 724 733 2391 Fax: 724 733 2491...
