Installation & Operation Instructions
D12000
www.classeq.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D12000 and is the answer not in the manual?

Questions and answers

Related Manuals for Classeq D12000

Summary of Contents for Classeq D12000

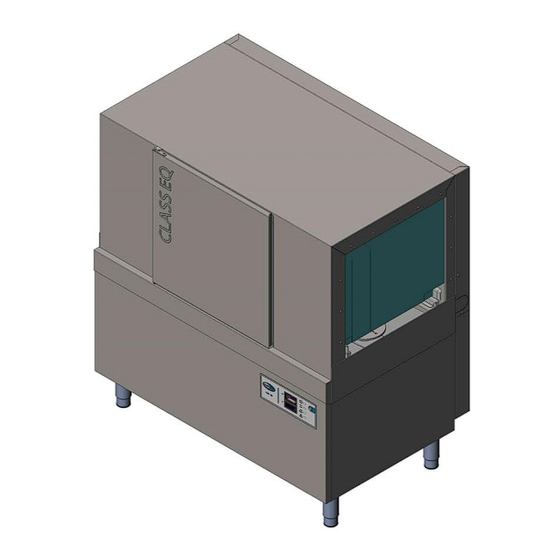

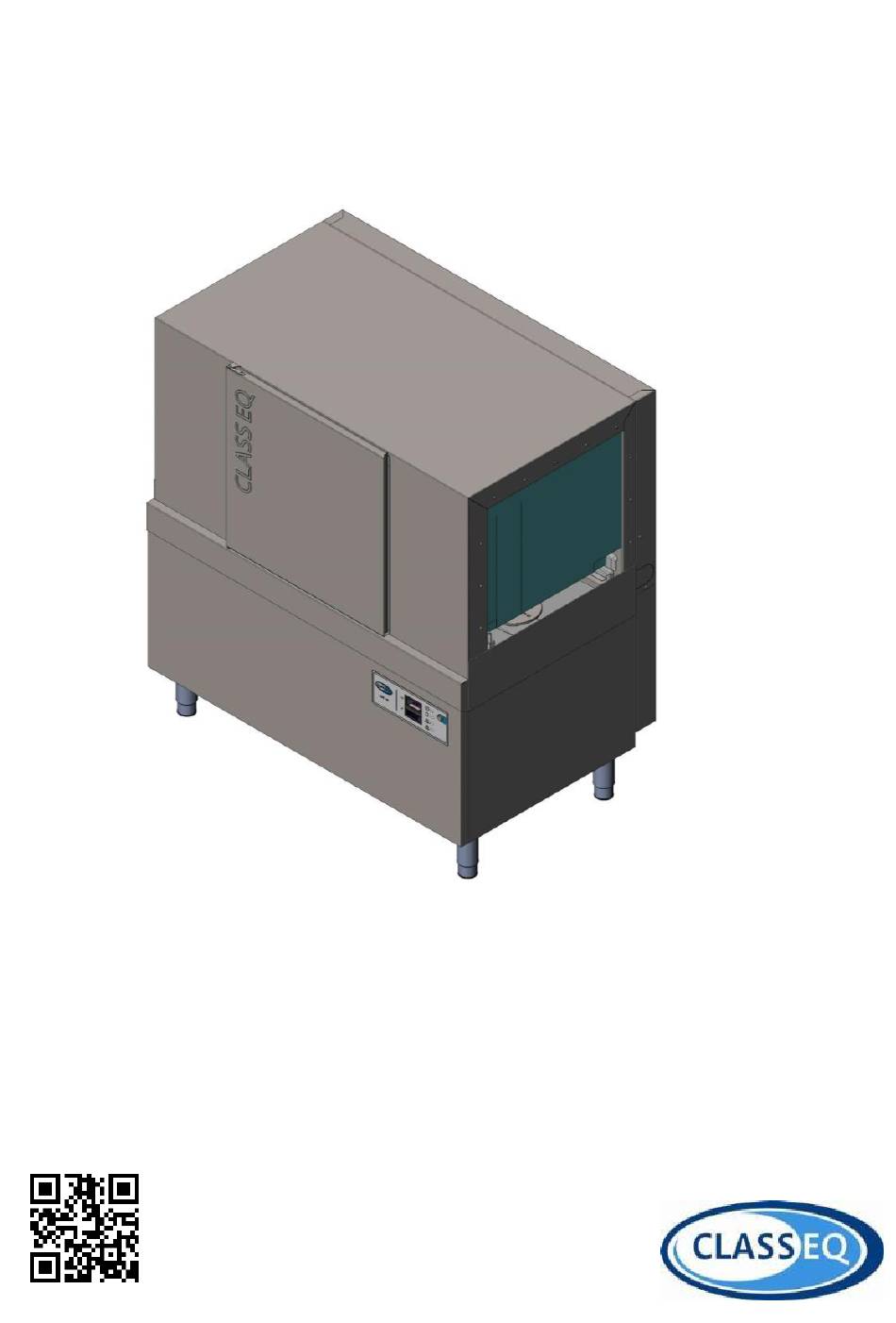

  • Page 1 Installation & Operation Instructions D12000 www.classeq.net...
  • Page 2 Accessories and Extras Detergents and Hygiene Products Product Product Name Quantity Order Application Code Dishwashing Super clean dishwashing detergent 1x20l DW1-20 Products Super shine dishwashing rinse aid 1x20l DWRA1-20 Salt Tablet Salt DuoMatik 25kg SALT T Baskets Product Name Order Code 500mm²...

  • Page 3: Table Of Contents

    Dear Customer Thank you for choosing Classeq, the machine you have selected has been designed to give you lasting service. Please read these instructions before installing, commissioning and operating this machine. The information contained herein is provided to avoid accidental risks and/or damage to either yourself or your machine.
  • Page 4 EXPLANATION OF SYMBOLS USED The following symbols have been used in this manual Warning against potential serious or fatal injuries to This symbol refers to a ► persons if the described chapter with more detailed precautionary measures are information not taken. Danger Warning against potential minor injuries to persons or...

  • Page 5: Know Your Machine

    Know Your Machine Wash arms and Wash tunnel* fitting tubes Rinse arms Filter Curtains Cassette assembly* Gear box & Drive motor Wash pump Rinse boiler Rinse pump Fascia and controls Control panel Serial number / Electric rating plate * Take note of safety information regarding these components (►2) Page 4...
  • Page 6 Fascia and Controls Wash temperature On / Off lamp thermometer On / Off button Pump running lamp Machine heating lamp Rinse temperature Machine error thermometer lamp Contents of Your Machine Items included within machine 1 x Installation and Operation Instructions 1 x Good Practice Guide 1 x Coil of Mains cable 2 x Splash guard...
  • Page 7 Machine specification D12000 Dishwashers A = width 1300 Closed B = depth Open 1427 C = height 1380-1440 Basket size (mm) (square basket) Load capacity (dishes) Load capacity (pint glass) Basket rate (Baskets/hour) Rinse running water temperature 82°C Rinse standby water temperature 60°C...
  • Page 8 1.4 Machine orientation In the D12000 basket is moved from the entry to the exit during the cleaning process. The entry is considered the opening closest to the wash arms, while the exit will be closest to the rinse arms. The machine and tabling must be installed to match. Refer Appendix B for changing the orientation of the machine so that the entry is fixed to the table with the soiled items.

  • Page 9: Warning And Safety Information

     Machines hard wired (i.e. no plug), this must be disconnected in accordance with local and national regulations; Classeq recommends this is performed by a qualified electrician. Always remove excess food from the dishes before loading. DO NOT use your machine as a waste disposal unit.

  • Page 10: Pre - Installation

    Pre - Installation After unpacking your machine, check it for any possible transport damage. Never install and use a damaged machine. If your machine is damaged contact your retailer immediately. Make sure the water and electricity connections of your machine are in compliance with these instructions.
  • Page 11 (i.e. voltage). A = Earth bonding / Equi-potential stud Please consult your distributor, Classeq or a qualified electrician if you are unsure how B = Water supply hose connection to do this. C = Drain / waste water hose exit...
  • Page 12 Warning! your machine. replaced by a cable or cord assembly supplied by Classeq, or its service agent, 3.7.2 Water supply restrictions: and is to the following minimum specification. Incoming water temperature For electrical rating of your machine refer to ...

  • Page 13: Installation

    / fuse. For the electrical rating of your machine refer to the rating plate (►1). Contact your distributor, qualified electrician or Classeq if you are unsure how to check this.  Feed the mains cable through the...
  • Page 14 3mm Water supply hose hex key. connection (►3.7.1) Classeq recommend installing a shut off valve in the mains water supply line near the machine such that it is easily accessible. Ensure the rubber seals within the ends of the hose are in place.
  • Page 15 4.5.3 Table end limit switch  Fit rinse aid tube onto the rinse aid inlet and detergent tube onto the It is very important that the table end limit detergent inlet. Tighten the tubes switch be installed at the end of the exit with cable ties and ensure they table and the arm adjusted so that it is are water tight.

  • Page 16: Commissioning

    Rinse & wash tank temperatures: Installing curtain Water temperatures are pre-set (►1.3), however Classeq recommends these are Remove the curtains from the packing checked / calibrated to ensure compliance and fit them into the curtain brackets as to local and national regulations.

  • Page 17: Operation

    Operation  will illuminate. Once the machine achieves the correct temperatures machine heating lamp will go out and machine is 6.1 Controls: ready for the first cycle. Prior to turning the machine ON, ensure that you are familiar with the controls on the Required front fascia of the machine and the location Machine rating...
  • Page 18 . Once the clean baskets have been removed the machine will continue to run. Note! Once empty Classeq recommends the  Left hand CST mains electricity supply is turned off and  the machine is cleaned.

  • Page 19: Servicing & Maintenance

    Servicing & Maintenance DO NOT spray the exterior or interior of the machine and the surrounding area (panels, base) using a water hose, steam-jet air Remove and clean ejector or high-pressure cleaner. Open the door. curtains. Ensure the base of the machine is never submerged or standing in water when operating the machine.
  • Page 20 Exterior cleaning: Wipe the exterior of the machine with a damp (NOT WET) sponge. Once dry, clean Your local water board should be able to using a tell you if the water in your area is hard or STAINLESS soft. As a guide refer to the map in STEEL cleaning Appendix C (►12).

  • Page 21: Trouble Shooting

    illuminated. Trouble Shooting  Check basket arm rod touching the Before placing a service call, please check basket all the time. the following:  Machine is connected to the mains  Check water supply is turned ON. water and electricity supply and both are turned on.
  • Page 22 Overfilling: 8.11 Basket not moving:  Drain machine fully (►6.5), then try  again to fill the machine. Check for obstructions on the drive rail and at the drive plate.  Check and clean all filters within the machine.  Check that machine error lamp is not illuminated.

  • Page 23: Decommissioning

    Decommissioning If for any reason you require removing or, decommissioning your machine, and then do so in accordance with local and national regulations. As a minimum Classeq recommends the following procedure is followed. Boiler drain  hose Remove chemical tubes from the...
  • Page 24 You can de-scale the wash tank of your machine yourself with the help of the following notes; to de-scale the rinse boiler you will need to contact your service engineer or Classeq:  Drain the machine (►6.5).  Remove the PVC hoses from the chemical bottles.
  • Page 25 Replace wash top wash hose with the hose required for the direction of travel. When changing the direction of the D12000 care must be taken not to misplace or damage the sealing O- rings. 11.1.1 Changing wash and rinse arms system.
  • Page 26 Right to left Pointing directly up Rinse Left to right Blanking Orientation 4: Tilted slightly outward towards entrance Classeq recommend that any Left to right Right to left changes to the machine be carried out by trained field Caution technician.
  • Page 27 NOT be covered by the Manufacturer’s Warranty. 11.1.3 Changing cassette assembly setting. Once D12000’s hoses have been changed, the cassette assembly needs to be rotated to move the baskets in the required direction. ...
  • Page 28 G = 2 x Speed variable plate H = 4 x Plastic Guide (White) 100 130 130 100 The D12000 is available at two speed settings of 100 or 130 baskets per. In Step 3: Remove bolt attaching rotating cap order to change the setting, remove...
  • Page 29 Caution assembly. For safety reason turn off all electrical supplies to your machine before following these steps. Danger If in doubt then contact Classeq or your local dealer. Page 28...
  • Page 30 Appendix D For more detailed information regarding your water hardness, please contact your water supplier. Map correct at time of going to print Page 29...

  • Page 31: Parts And Labour Warranty Terms

    Warranty Terms  Incorrect assembly after cleaning.  Damage to machine caused by any 3 Classeq Glass & Dishwashing party. Systems Ltd. Parts and Labour Warranty Terms The user is entitled to free replacement and fitting of any part found to be faulty in...
  • Page 32 13.1 Useful Contact Details / Notes Page 31...
  • Page 33 To help when contacting please quote the serial number and model of machine Warranty: To register your machine visit: www.classeq.co.uk. Classeq is a trade name of Classic Glass and Dishwashing Systems Ltd. Page 32...
