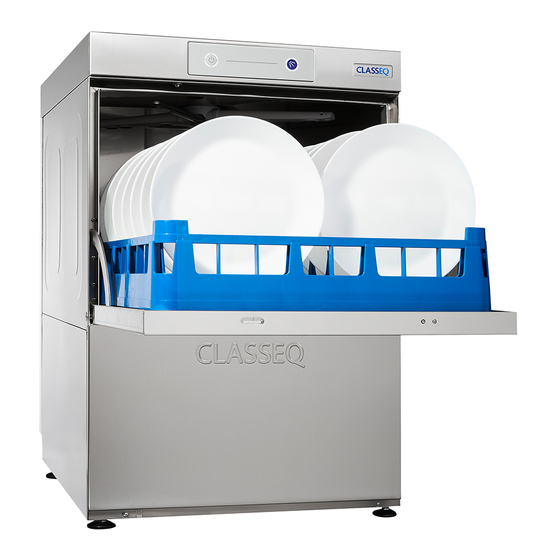

Classeq Eco 2 Installation & Operator's Manual
Under counter range
Hide thumbs
Also See for Eco 2:
- Installation & operation instructions (33 pages) ,
- Installation & operator's manual (20 pages) ,
- Installation and operation manual (20 pages)
Related Manuals for Classeq Eco 2
Summary of Contents for Classeq Eco 2

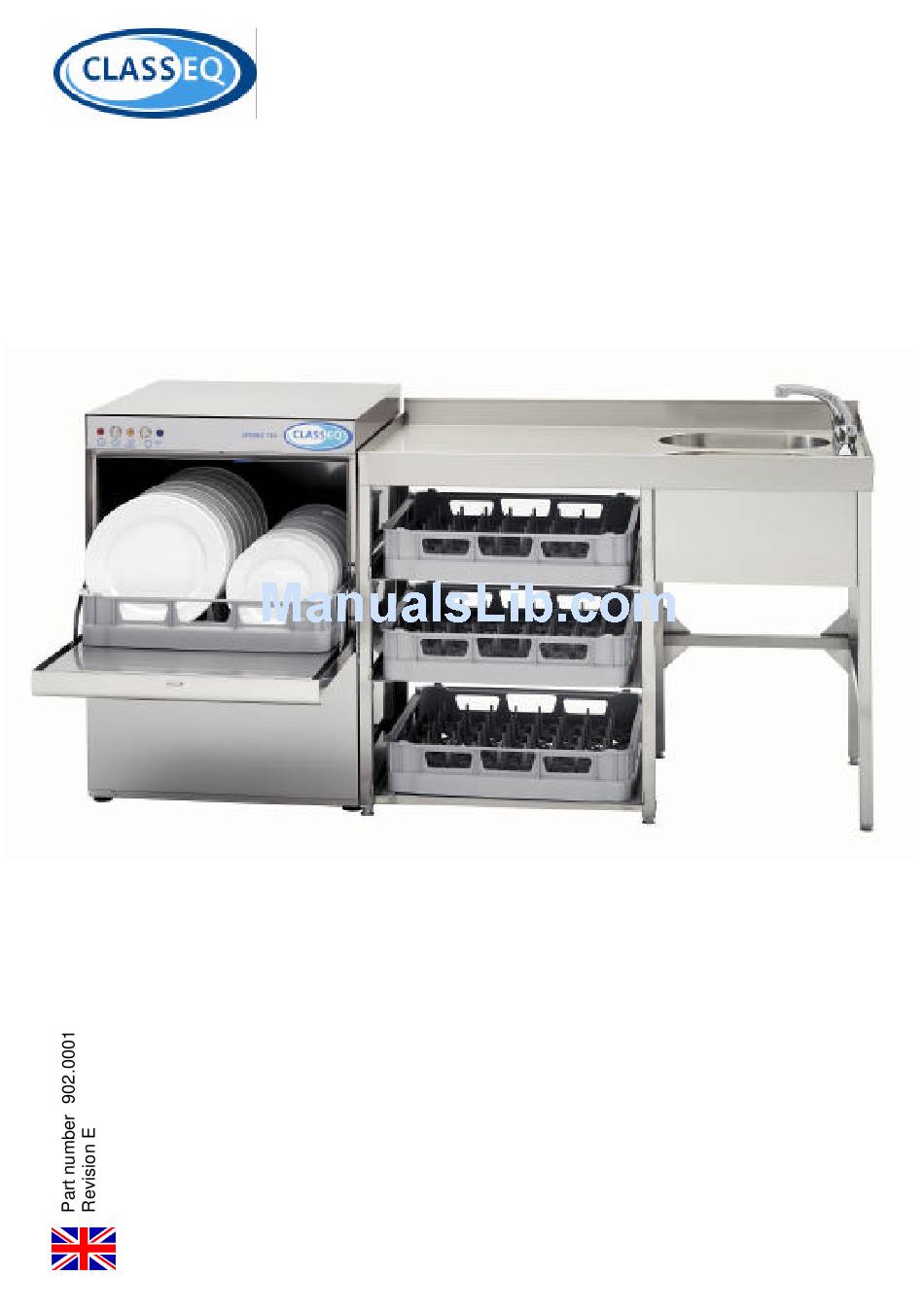

- Page 1 Installation Installation & & Operators Manual Operators Manual Eco, Hydro and Duo Eco, Hydro and Duo under counter range under counter range...
-
Page 2: Table Of Contents
Installation and Operation instructions Installation and Operation instructions For ‘Classeq’ under counter range of glass and dishwashers. Section Title Page(s) Safety instructions The appliance Installation 2 - 5 Commissioning 5 - 8 Operation 8 - 11 Cleaning 12,13 Trouble shooting... -
Page 3: Safety Instructions
Installation should only be carried out by a ‘Classeq’ approved technician, and in accordance with current regulations and within our instructions. Modification : ‘Classeq Limited’ reserves the right to modify either the appliance or the contents of these instructions without notice. Operation : The appliance should only be used by a trained operator as instructed in section 5 of this manual. -
Page 4: The Appliance
The appliance The appliance Unpacking : Use suitable means and protective equipment to avoid injury whilst unpacking and handling the appliance. Remove all outer packaging and the protective film from the outer panels of the appliance prior to installation. Ensure all packing materials are disposed of in accordance with local regulations. - Page 5 3.2.1 Electrical rating : Within the ‘Classeq’ range several of the 500mm² basket appliances can be either down rated or up rated electrically, such a procedure MUST be carried out by a ‘Classeq’ approved technician.
- Page 6 Water connection : The appliance comes with a water supply hose requiring a ¾” BSP male threaded connection at the mains water supply, upon installation and commissioning all water joints must be checked for leaks). 3.3.1 Water supply restrictions : Water supply constraints must be adhered to : •...
-
Page 7: Commissioning
Gravity drain machine • Flexible waste hose must be securely attached to the waste outlet elbow on the rear of the machine. • The waste hose must flow down from the waste outlet elbow to the drain. • Ø35mm (Ø1 ¼”) stand- pipe required, must be lower than the baseline of the appliance... - Page 8 Detergent Machine sizes Cycle Initial Cycle Eco 2 & Duo 2 Eco 3 & Duo 3 Hydro500 & Duo 500 Hydro700, Hydro750 & Duo 750 Adjustment of chemical dose is via the timer located under the top panel of the appliance, the timer allows the following values to be...
- Page 9 Cycle detergent / soap • Initial detergent / soap P2 = Rinse aid pump Rinse & wash tank temperatures : The water temperatures on ’Classeq’ range of machines is none adjustable. Temperatures Machine type Rinse water Wash water Glasswashers 70°c 55°c...
-
Page 10: Operation
Demonstration : ‘Classeq’ recommends that prior to leaving the site / installation, the installer demonstrates the following to the end user, as this will ensure the appliance is correctly used • What to do in case of an emergency, i.e. how to isolate the mains electricity and water (see section 1). - Page 11 Drain pump appliances will have this symbol located below the Cycle lamp (5), as shown on the above fascia. If the symbol this is not present, the machine will have been despatched as a gravity drain machine. If in doubt please contact ’Classeq’ for advise. Page 9...
- Page 12 Draining : During normal operation your appliance will automatically drain away any excess water. ’Classeq’ recommends if your appliance is not being used for a prolonged pe- riod of time the machine must be completely drained down Page 10...
- Page 13 DO NOT switch isolate the appliance while in the drain down cycle. Note ! Once empty ‘Classeq’ recommends that the mains water and electricity supplies are isolated at the wall and the machine be cleaned as instructed in section 6 of this manual...
-
Page 14: Cleaning
Cleaning Cleaning Prior to cleaning : Switch off and isolated electrical supply before cleaning the appliance WARNING DO NOT use cleaning agents that contain CHLORINE, BLEACH or HYPOCHLORITE. DO NOT use STEEL WOOL, WIRE BRUSHES or any other abrasive materials. DO NOT jet wash or hose pipe the appliance down either inter- nally or on the exterior Internal cleaning :... -
Page 15: Trouble Shooting
Exterior cleaning : Wipe the exterior of the appliance with a damp sponge (NOT WET) Once dry, clean using a STAINLESS STEEL cleaning agent Trouble shooting Trouble shooting • Before placing a service call , please check the following: • Check the appliance is connected to the mains water and electricity supply and both are turned on. - Page 16 Appliance fills slowly : • Check water supply tap is fully open. • Check water supply pressure, should be above 2 bar, if not ask your dealer to install a booster pump to increase water pressure. • Check and clean rinse jets (located on the wash arms within the appliance).
- Page 17 • Check water supply is ON and fully open. • Rinse dishes of any food debris before placing into the dish- washer. • Glasses may need to be renovated. • If glasses are ‘Blooming’ you may need a water softener, call your dealer to advise on size of water softener required.
- Page 18 ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ……………………………………………… ………………………………………………................................................................................Classeq Winterhalter House 0870 224 7280 Roebuck Way 0870 224 7255 Knowlhill Email service@classeq.co.uk Milton Keynes Website www.classeq.co.uk MK5 8WH...
