Classeq ECO 1 Installation & Operation Instructions
Glasswashers
Hide thumbs
Also See for ECO 1:
- Installation & operator's manual (20 pages) ,
- Installation & operator's manual (20 pages) ,
- Installation and operation manual (20 pages)
Related Manuals for Classeq ECO 1
Summary of Contents for Classeq ECO 1

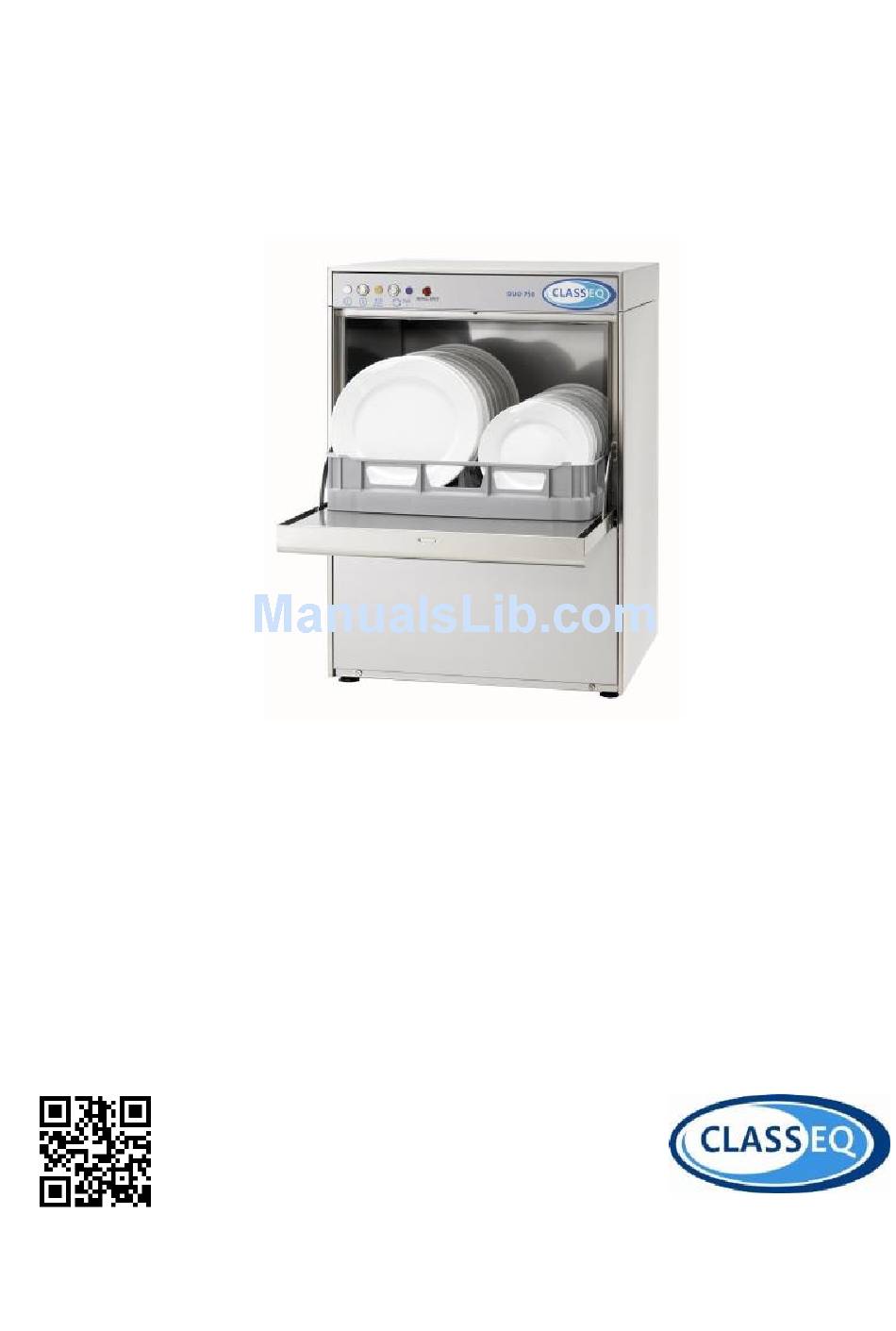

- Page 1 Installation & Operation Instructions The Classeq Under Counter Range Glasswashers Dishwashers ECO 1 HYDRO 400 ECO 2 HYDRO 700 ECO 3 HYDRO 750 DUO 2 DUO 400 DUO 3 DUO 750 www.classeq.net...
- Page 2 SALT Stands Product Name Order Code Eco 1-2, Hydro 400 stainless steel 457(w) x 497(d) x SS-400 410(h) Duo 2, Duo 400 stainless steel 575(w) x 552(d) x 421(h) SS-400D Eco 3 Hydro 750 stainless steel 555(w) x 550(d) x 410(h)
-
Page 3: Hydro
For hot water installations 99-32-001 Service and Maintenance Contracts Enjoy complete peace of mind with Classeq’s range of tailored service contracts. We will be happy to discuss your requirements and provide a proposal which will cater for all your warewashing service needs. -
Page 4: Table Of Contents
Dear Customer Thank you for choosing Classeq, the machine you have selected has been designed to give you lasting service. Please read these instructions before installing, commissioning and operating this machine. The information contained herein is provided to avoid accidental risks and/or damage to either yourself or your machine. - Page 5 Explanation of symbols used The following symbols have been used in this manual Warning against potential serious or fatal injuries to This symbol refers to a persons if the described ► chapter with more detailed precautionary measures are information not taken. Danger Warning against potential minor injuries to persons or...
-
Page 6: Know Your Machine
1. Know Your Machine Top wash / rinse arms (ECO1, ECO2 & DUO2 only Fascia / control have top rinse arms) Bottom wash / rinse arms Water softener salt refill cap (only on machines with integral water softeners) Air pressure vessel Secondary filters, and or gravity drain plug position Serial number / electrical... - Page 7 Contents of Your Machine Items included within machine 1 x Installation and 1 x Good Practice Operation Guide Instructions 2 x Secondary Open basket filters (glass washer) (only 1 on gravity (dishwasher) drain machines) Sectioned basket 1 x Drain plug (dishwasher only) (only on gravity (400mm basket...
- Page 8 Machine specification Glass washers ECO 1 ECO 2 ECO 3 DUO 2 DUO 3 HYDRO 700 Dishwashers HYDRO 400 DUO 400 DUO 750 HYDRO 750 A = width B = depth C = height (min) D = width (min) E = depth (min)
-
Page 9: Warning And Safety Information
(►1). The installer and user are plug), this must be disconnected responsible for ensuring the in accordance with local and installation and operation of this national regulations; Classeq machine are in accordance with local recommends this is performed by and national regulations. a qualified electrician. -
Page 10: Pre - Installation
3. Pre - Installation After unpacking your machine, check it for any possible transport damage. Never install and use a damaged machine. If your machine is damaged contact your retailer immediately. Make sure the water and electricity connections of your machine are in compliance with these instructions. - Page 11 (i.e. voltage). Please consult your distributor, • IEC 60204 Classeq or a qualified electrician if Supply isolator switch must have all you are unsure how to do this. pole separation of more than 3mm.
- Page 12 Classeq, or its service agent, and be to the following minimum specification. 3.8.1 Water supply hose: For electrical rating of your machine Your machine comes with a new refer to the rating plate (►1).
-
Page 13: Installation
/ fuse. For the electrical rating of your machine refer to the rating plate (►1). Contact your distributor, qualified electrician or Classeq if you are unsure how to check this. All mains electrical work must be carried out in... - Page 14 4.3 Water supply hose connection (►3.8.1) Drain hose must flow down from • the waste outlet to the drain. Classeq recommend installing a shut off valve in the mains water supply Ø40mm (1 ½”) standpipe line near the machine such that it is •...
-
Page 15: Commissioning
5.2 Integral water softener 5. Commissioning (Not on all models) 5.1 Installing chemical bottle weights Check the water hardness of your A coil of PVC hose is attached to water supply. Once you have this each chemical pump. data, isolate the mains electrical supply to the machine, remove the Blue = rinse aid •... - Page 16 (external to machine). individual site requirements (►11.2). 5.5 Rinse & wash tank temperatures: Water temperatures are pre-set, however Classeq recommends these are checked / calibrated to ensure Ensure your machine is • compliance to local and national empty of water.
-
Page 17: Operation
6. Operation 6.3 Switch the machine on: 6.1 Machine description: Ensure both the water and electrical The design of commercial glass and supplies are connected and switched dishwashing machines differ from on, ensure the door to your machine domestic versions as they are is closed. - Page 18 6.5 Starting a cycle: Always remove excess food / debris from any dishes / glasses to be washed. To start a cycle, open the door, load the first basket, ensuring that bottom and top arms rotate freely. Draining: During normal operation your machine will automatically drain away any excess water.
- Page 19 Turn machine OFF at on/off • button Note! Once empty Classeq recommends the mains water and electricity supplies are turned off and the machine is cleaned (►7). For hygiene reasons it is recommended that once the machine Close the door.
-
Page 20: Servicing & Maintenance
7.2 Cleaning interior: 7. Servicing & Maintenance DO NOT spray the exterior or interior of the machine and the surrounding area (panels, base) using a water hose, steam-jet air ejector or high- pressure cleaner. Remove the Open the lower rinse and machine door wash arms Ensure the base of the machine is... - Page 21 If your machine is operated with hard water without the relevant water treatment, the internal working and all water lines can become scaled and your results will deteriorate and the Remove and machine will not perform. Re-mount all clean the filters and drain secondary filters plug (where...
-
Page 22: Trouble Shooting
8.3 Machine does not rinse: 8. Trouble Shooting Check water supply is turned ON. Before placing a service call, please • check the following: Check water supply hose is not • Machine is connected to the • trapped or kinked. mains water and electricity supply and both are turned on. - Page 23 8.6 Machine not draining: 8.8 Overfilling: Check and clean all filters within Drain machine fully (►6.6), then • • the machine. try again to fill the machine. Check and clean all filters within • Check that the stand pipe / drain •...
-
Page 24: Decommissioning
As a minimum Classeq recommends the following Remove the front lower panel • procedure is followed. - Page 25 CAUTION If the machine is being drained immediately after use, water draining from the ‘Boiler Caution drainage hose’ may reach up to 82° C. Loosen the jubilee clip and • remove the stainless steel drain plug, ensuring the water flows into the container mentioned above.
-
Page 26: Appendix A
You can do this while the the filling area. machine is On, you do not have to switch Off the machine or drain the For replacement granulated salt water. contact Classeq or your dealer. Page 25... -
Page 27: Appendix B
11.1.1 Changing rating to 220-240V Appendix B / 1N~ / 13A: Remove links between L1, L2 and • DANGER! Only Qualified Electricians or Classeq Ensure link remains between • Engineers are to carry out Danger neutrals (N) the changes to electrical... - Page 28 11.1.4 Changing rating to 380-415V Chemical Pumps / 3N~ / 13A: Only ECO 3, HYDRO 750, DUO 3 and DUO 750 machines can be converted to three phase. Remove links between L1, L2 and • Adjustments are made by rotating the adjuster screw in the front of the Ensure link remains between •...
- Page 29 Classeq recommends that after any De-scale must not remain adjustments, your machine is run in the machine for more through at least 10 cycles before than 2 hours. Caution making any further adjustments. Fill the machine (► 6.3). 11.3 De-scaling: •...
-
Page 30: Appendix C
Appendix C For more detailed information regarding your water hardness, please contact your water supplier. Map correct at time of going to print Page 29... -
Page 31: Parts And Labour Warranty Terms
Warranty Terms Use of excessive force on the • machine, e.g. switches etc. Classeq Glass & Dishwashing The cost of replacing any item Systems Ltd. • found to be lost or missing. Parts and Labour Warranty Terms Use of non-compatible cleaning •... - Page 32 13.1 Useful Contact Details: Page 31...
- Page 33 To help when contacting please quote the serial number and model of www.classeq.net machine Document no.- 902.0011 Revision - D (Feb 2013) Language - English Classeq is a trade name of Classic Glass and Dishwashing Systems Ltd. Page 32...
