Legacy LCDCS94 Instruction Manual

Anti-theft detachable panel full logic tape and disc player am/fm stereo digital pll tuning radio with cdc control
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
LEGACY
LCDCS94
CD CHANGER DIN SOCKET
INSTRUCTION MANUAL

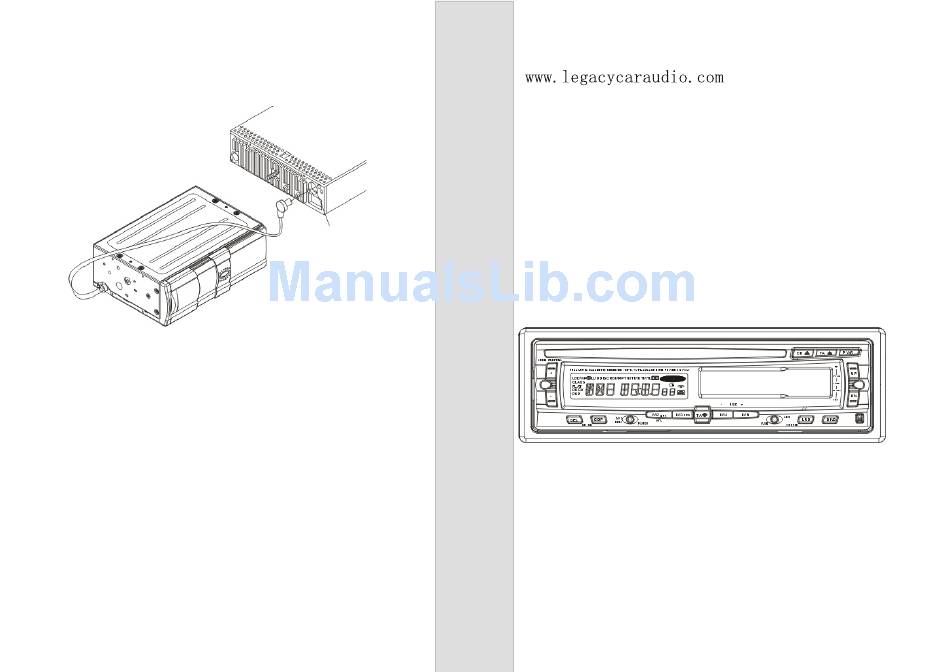

When you want to play the CD changer, plug the CD changer DIN into
the socket of the back of the car audio unit.
ANTI-THEFT DETACHABLE PANEL
FULL LOGIC TAPE AND DISC PLAYER
AM/FM STEREO DIGITAL PLL TUNING RADIO
WITH CDC CONTROL

Advertisement

loading

Related Manuals for Legacy LCDCS94

Summary of Contents for Legacy LCDCS94

  • Page 1 LEGACY LCDCS94 CD CHANGER DIN SOCKET INSTRUCTION MANUAL When you want to play the CD changer, plug the CD changer DIN into the socket of the back of the car audio unit. ANTI-THEFT DETACHABLE PANEL FULL LOGIC TAPE AND DISC PLAYER...

  • Page 2: Location And Function Of Controls

    LOCATION AND FUNCTION OF CONTROLS 1.2.19. VOLUME MODE SELECTING AND LEVEL UP OR DOWN BUTTONS Press SEL button to select the audio mode such as volume, bass, treble, balance and fader. Press the + or - button to adjust the sound level of them.

  • Page 3: Troubleshooting

    TROUBLE SHOOTING Before going through the check list, finish wiring connection. If there still are any question after finish testing the items in the following list, consult your nearest service dealer. Symptom Cause The compact The volume control is turned Turn up the volume control.

  • Page 4: Installation

    13.LOUD/SUB WOOFER Press it shortly to enhance the bass effect during bass mode. Press it more than 2 seconds, SUB WOOFER will be turned on. then press SEL button to select the sound mode such as volume, bass, treble, balance and fader, and then press + or - button to increase or decrease the volume level of the selected sound mode.
  • Page 5 PRECAUTIONS AND MAINTENANCE .1.This unit is designed for negative ground operation only. The equipment can be used safely, if the negative terminal of the battery is connected to the vehicle metal work. 2.Do not use speakers of impedance less than 4 ohms; and allow the speaker wires to be shorted together when the unit is switched on.

  • Page 6: Disc Play

    SPEAKER CONNECTION ANTENNA PLUG YELLOW MEMORY B+ FUSED FILTER BLACK(GND) RCA LINE OUT 0.5A &10A RED (B+) FUSES BLUE AUTO ANT FUSE WHITE FRONT WHITE/BLACK LEFT GREEN REAR GREEN/BLACK CDC SOCKET WOOFER LINE OUT YELLOW RED R WHITE L FRONT GRAY RIGHT GRAY/BLACK...
