SPECIFICATION
GENERAL
Supply Voltage
DC 13.8V. Negative Ground
Current Consumption
Max.7A
Power Output
Unit Dimensions
178[W] X 50[H] X 165[D] mm.
FM SECTION
Frequency range
87.5MHz -108.0MHz (EUR)
Effective sensitivity
I.F Frequency
10.7MHz.
AM SECTION
Frequency range
522KHz - 1620KHz (EUR)
I.F Frequency
RCA LINE OUT (OPTION)
Output
CD PLAYER
System
Suitable CDs
CD/CD-R/CD-RW Disc
Signal format
Sampling frequency 44.1KHz.
No. of quantization bits 1bit.
Frequency characteristics
10-20KHz < 5dB.
S/N Ratio to CD
Number of channels
11
40W X 4.
87.5MHz -107.9MHz (USA)
3uV.
530KHz - 1710KHz (USA)
450KHz
CD Max. 1200mv
Compact Disc Audio System.
20-100Hz < 5dB
50dB [1KHz]
2 STEREO channels.

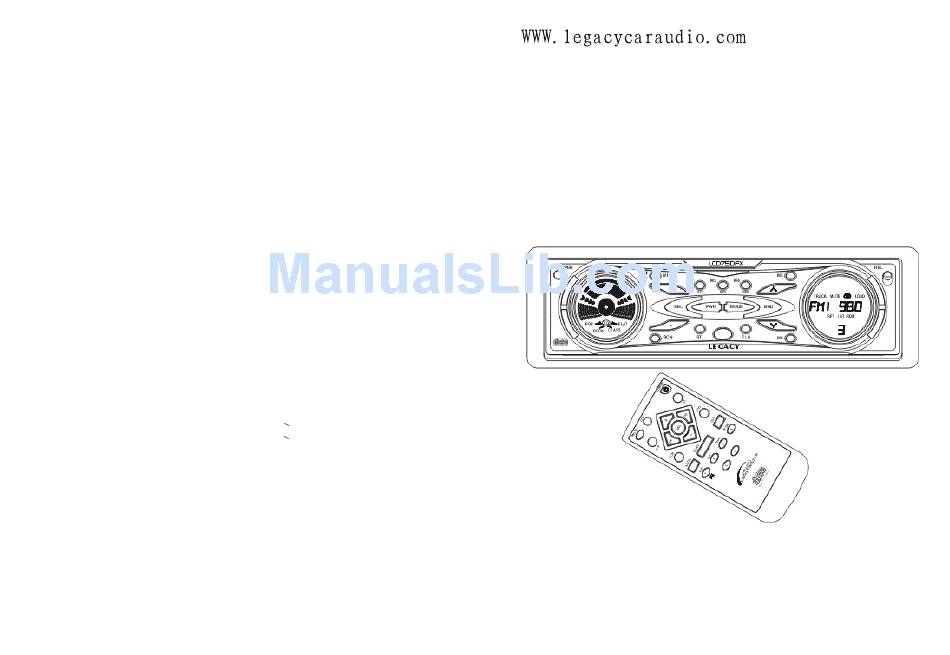

LEGACY
INSTRUCTION MANUAL
ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM
AUTO-LOADING COMPACT DISC PLAYER
AM/FM-STEREO DIGITAL PLL TUNING RADIO
WITH INFRARED REMOTE CONTROLLER
LCD75DFX
Advertisement
Related Manuals for Legacy LCD75DFX
Summary of Contents for Legacy LCD75DFX
-
Page 1: Instruction Manual
SPECIFICATION LEGACY GENERAL Supply Voltage DC 13.8V. Negative Ground Current Consumption Max.7A Power Output 40W X 4. LCD75DFX Unit Dimensions 178[W] X 50[H] X 165[D] mm. FM SECTION Frequency range 87.5MHz -107.9MHz (USA) 87.5MHz -108.0MHz (EUR) INSTRUCTION MANUAL Effective sensitivity 3uV. -
Page 2: Dear Customer
TROUBLE SHOOTING DEAR CUSTOMER: Before using the check list please make all the connections first. Thank you for your purchase and confidence in all kinds of audio-visual products of ours. If you still have questions after going through the checklist, please consult Selecting fine audio equipment such as the unit you have just purchased is only the start your local customer service representative. - Page 3 PRECAUTION OF DISC PLAY: BASIC OPERATING OF FUNCTIONAL KEYS Cleaning the CD: Before playing a CD, wipe it off with a clean, dust-free cleaning cloth. Wipe the disc in the direction of the arrow. Always insert the CD with the label side facing upwards. If the CD is inserted with the printed side facing downwards, the device may be damaged.
- Page 4 SEEK 1/ 2 (only available during radio operation) Seek function with the button during radio operation. You can select SEEK 1/ SEEK 2 by using the +/- button. SEEK 1: Keep the buttons pressed down and the radio will stop at the next station that is detected. SEEK 2: As long as the buttons are pressed down the search function will continue in the frequency band.
-
Page 5: Wiring Diagram
b) During CD mode: WIRING DIAGRAM Press the TOP button briefly to interrupt the playback of the CD. Press again to resume normal playback of the CD. ANTENNA PLUG Press the TOP button and hold for approximately 2 seconds to play the first track of the current disc. -
Page 6: Operation Of Remote Control
The Maintenance of Remote Control OPERATION OF REMOTE CONTROL: Note: REPLACE THE BATTERY OF REMOTE CONTROL: Before use this remote control, please make sure 1.Remove the battery holder as the direction indicated by the arrow. turn on the device by pressing the power button on 2.Replace the battery, Set a new battery properly with (+) side up.
