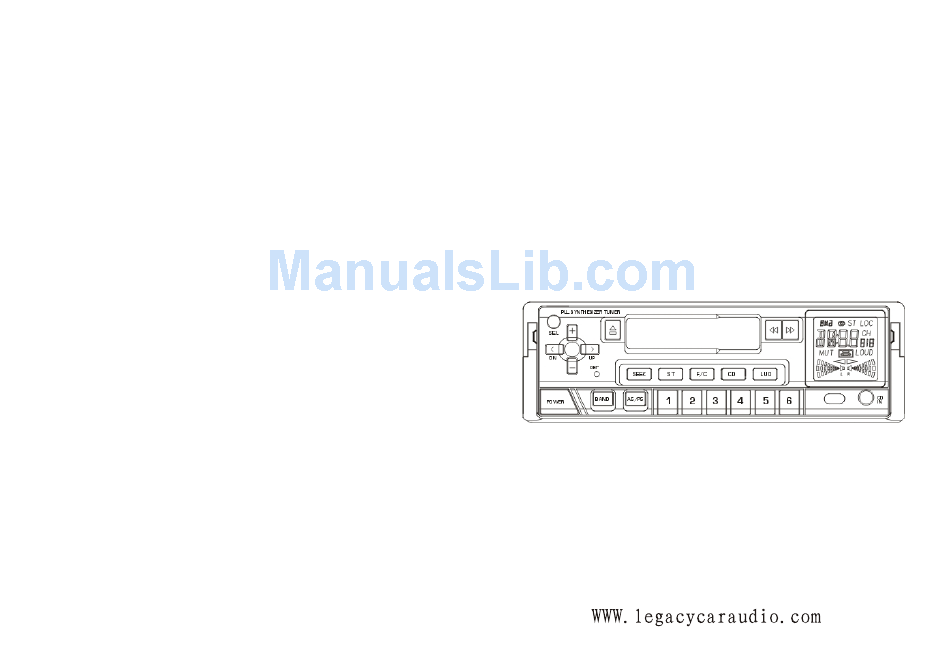

- Page 1 LEGACY LR-203FX INSTRUCTION MANUAL PLL QUARTZ TUNING ELECTRONIC AUDIO CONTROL STEREO CAR RADIO CASSETTE PLAYER...
- Page 2 LOCATION AND FUNCTION OF CONTROLS 1. VOLUME BUTTON Press the "+" button to increase volume level; press the "-" button to decrease volume level. SELECT BUTTON Press it can select VOL/BAS/TRE/BAL/FAD, and with the +/- button to adjust them, and the word which function it is selected will be indicated on LCD. 2.
- Page 3 PRECAUTIONS AND MAINTENANCE .1.This unit is designed for negative ground operation only. The equipment can be used safely, if the negative terminal of the battery is connected to the vehicle metal work. 2.Do not use speakers of impedance less than 4 ohms; and allow the speaker wires to be shorted together when the unit is switched on.
- Page 4 INSTALLATION PRECAUTIONS 1. Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. 2. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
