IMPORTANT:
This radio is set to USA frequency by factory, if European
frequency is required please flip the frequency step switch on
the side of the unit.
After the switchover of the frequency switch, the frequency convert
function will not be valid until the RESET button has been pressed.

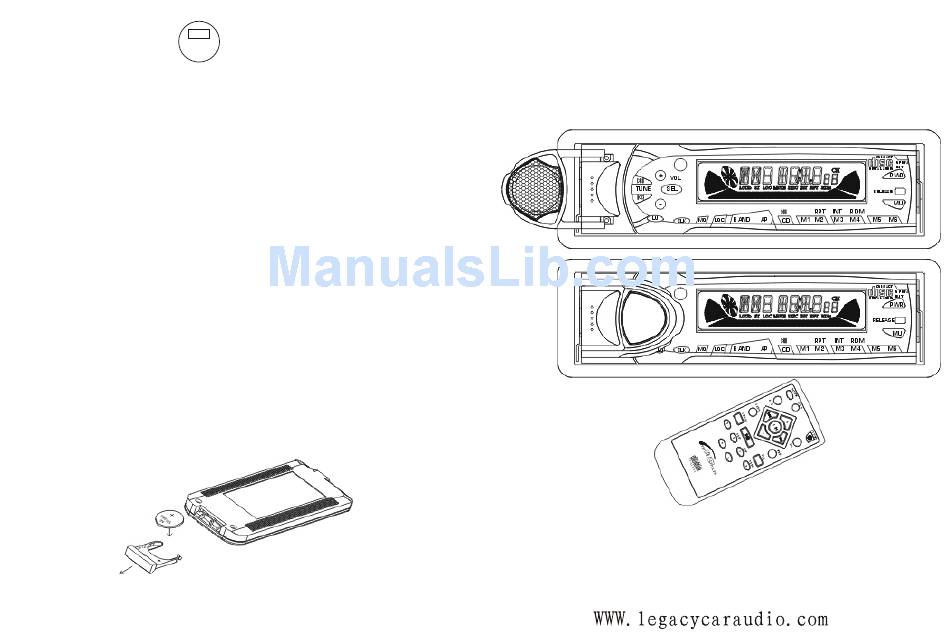

REMOTE CONTROL BASICS BATTERY REPLACEMENT:
1.Remove the battery holder as the direction indicated by the arrow.
2.Replace the battery Set a new battery properly with (+)side up as illustrated.
3.Insert the battery holder. Push in the holder to the original position.
NOTE ON BATTERIES:
Old batteries must immediately be removed and disposed.
BATTERY INFORMATION:
Designated Battery: CR2025 3V.
Battery Life: 6 months with normal use (in normal room temperature)
CAUTION:
Improper use of batteries may cause overheating, explosion or ignition. Resulting in
jury or fire .Battery leakage may cause damage to the unit.
Do not disassemble or short the batteries. Do not throw the batteries into the fire.
To avoid the risk of accident, keep the batteries out of reach of children.
EUROPE
11
LEGACY
INSTRUCTION MANUAL
ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM
AUTO-LOADING COMPACT DISC PLAYER
AM/FM STEREO WITH DIGITAL TUNING RADIO
MODEL:LCD69DSX
Advertisement
Table of Contents
Related Manuals for Legacy Legacy LCD69DSX
Summary of Contents for Legacy Legacy LCD69DSX
- Page 1 EUROPE IMPORTANT: This radio is set to USA frequency by factory, if European frequency is required please flip the frequency step switch on the side of the unit. After the switchover of the frequency switch, the frequency convert function will not be valid until the RESET button has been pressed. REMOTE CONTROL BASICS BATTERY REPLACEMENT: 1.Remove the battery holder as the direction indicated by the arrow.
-
Page 2: Installation
DEAR CUSTOMER Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers. We want you to get the most out of your equipment by playing it at a safe level. -
Page 3: Troubleshooting
TROUBLE SHOOTING Before going through the check list, wiring connection, should any of the problem persist after check list has been made, consult your nearest service dealer. Symptom Cause The car ignition is not on. If the power supply is properly connected to the car accessory No power switch the ignition key to "... -
Page 4: Location And Function Of Control
Frequency range...522KHz - 1620KHz. Frequency range...530KHz - 1710KHz. LINE - OUT [OPTION] Output...1000mV @ FM 10% THD POWER. Impedance...600 ohm. CD PLAYER System...compact disc audio system. Usable disc...compact disc. Signal format...sampling frequency 44.1KHz. Frequency characteristics...5-40Hz < 5dB Signal to noise radio...70dB [1KHz] [IEC - A net work]. -
Page 5: Speaker Connection
Speaker Connection ANTENNA PLUG 12 P YELLOW MEMORY B+ FUSED FILTER BLACK(GND) 0.5A &7A RED (B+) FUSES BLUE AUTO ANT WHITE FRONT WHITE/BLACK LEFT GREEN REAR GREEN/BLACK Note: Make sure use a 4-ohms impedance speaker in spite of having any kinds of speaker system. - Page 6 9. RELEASE BUTTON Press it to flip down the front panel when you want to take away. 10. LOUDNESS BUTTON Press it to enhance the bass effect. 11. CLOCK ADJUSTMENT BUTTON During frequency display, press it to change to clock function. Press the button for more than 2 seconds, until time flashes.
