Page 1

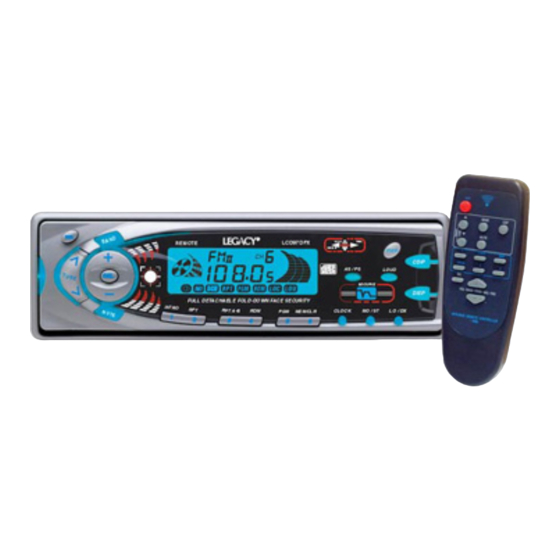

All manuals and user guides at all-guides.com OWNER'S MANUAL COMPACT DISC PLAYER WITH AUXILIARY INPUT AND SUPER POWER OUTPUT FOLD DOWN FACE DETACHABLE PANEL FM-AM FM-MPX RADIO RECEIVER WITH REMOTE CONTROL LCD97DFX MODEL : Page. 1 P / N : 570-991612-06...
Page 2
All manuals and user guides at all-guides.com LOCATION OF CONTROLS FIGURE A OPERATING INSTRUCTIONS 1. POWER ON/OFF CONTROL Press the button to turn the power “ON” or “OFF”. Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button).
Page 3
All manuals and user guides at all-guides.com 9. EJECT BUTTON Press the button to eject the disc inside disc slot. 10. PANEL RELEASE BUTTON (FIGURE A) To detach the front panel, press the release button so that the panel fold down from vertical position to horizontal position and then pull it off of the chassis at horizontal position.
Page 4
All manuals and user guides at all-guides.com WIRE CONNECTION RESET FUNCTION The RESET button is located at the back of the panel. It is recessed in order to prevent accidental engagement, and can be activated with the tip of a ball-point pen or any similar pointed object.
