Legacy LCD15DX Instruction Manual

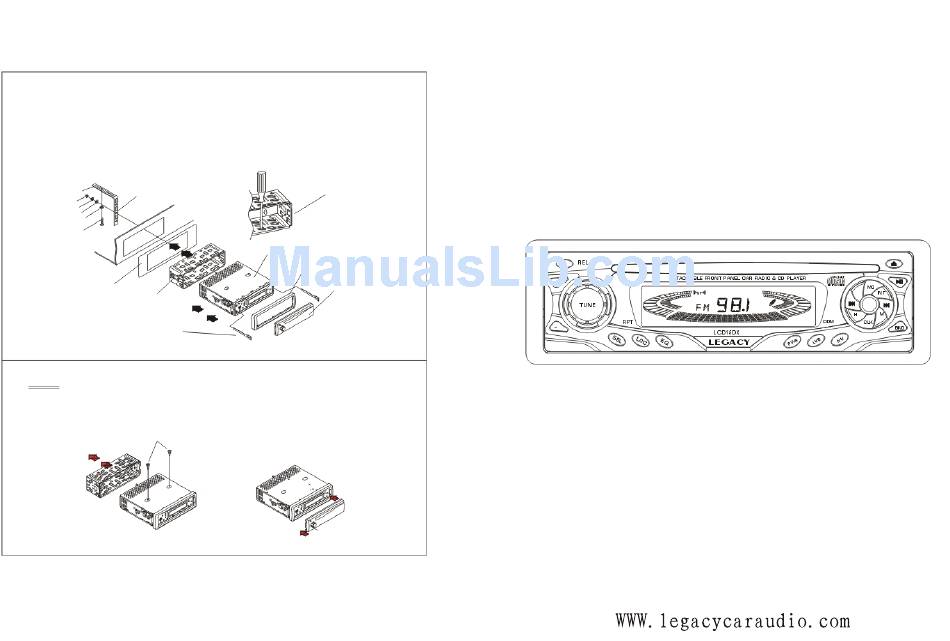

INSTALLATION METHOD
This is an anti-theft installation method.
The main unit wears a METAL SLIDE BRACKET HOUSING.
Please connect the wiring such as power supply, speakers and antenna
according to the requirements of this operation manual, then install the
metal slide housing into the car according to the following diagram.
To boost up the capability of anti-jamming,
please make sure fix tightly the support metal
strap into the metal joint that connect to the
chassis of the car.
SUPPORT METAL STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
PLAIN WASHER
TAPPING SCREW
DASHBOARD
METAL SLIDE BRACKET HOUSING
To draw the CHASSIS out of the METAL SLIDE BRACKET
HOUSING, insert the two KEY PLATES into the left and right
side slots of the chassis at the same time, then draw out the
chassis emphatically as the right illustration.
NOTE
Please make sure remove the two screws
for protect the CD DECK MECHANISM during
transportation before operating.
Remove the METAL SLIDE
BRACKET HOUSING as arrow
illustration
For properly fix the metal chassis,
bend over the tabs according to
the high of the DASHBOARD.
UNIT CHASSIS
PLASTIC TRIM OUT
FRONT PANEL
To mount the panel, insert right side of the panel
into right side of the chassis first, then push the
left side of the panel into the chassis until a click
sound is heard.
LEGACY
INSTRUCTION MANUAL
ANTI-THEFT DETACHABLE SYSTEM
AUTO-LOADING COMPACT DISC PLAYER
WITH AM/FM STEREO MANUAL TUNING RADIO
MODEL:LCD15DX
