STR - F6654

4.10.1 GENERAL DESCRIPTION

The STR-F6654 is an hybrid IC with a build-in MOSFET and control IC, designed for flyback converter type switch
mode power supply applications.

4.10.2 FEATURES

Small SIP fully isolated moulded 5 pins package
Many protection functions :
Pulse-by-pulse overcurrent protection (OCP)
Overvoltage protection with latch mode (OVP)
Thermal protection with latch mode (TSD)

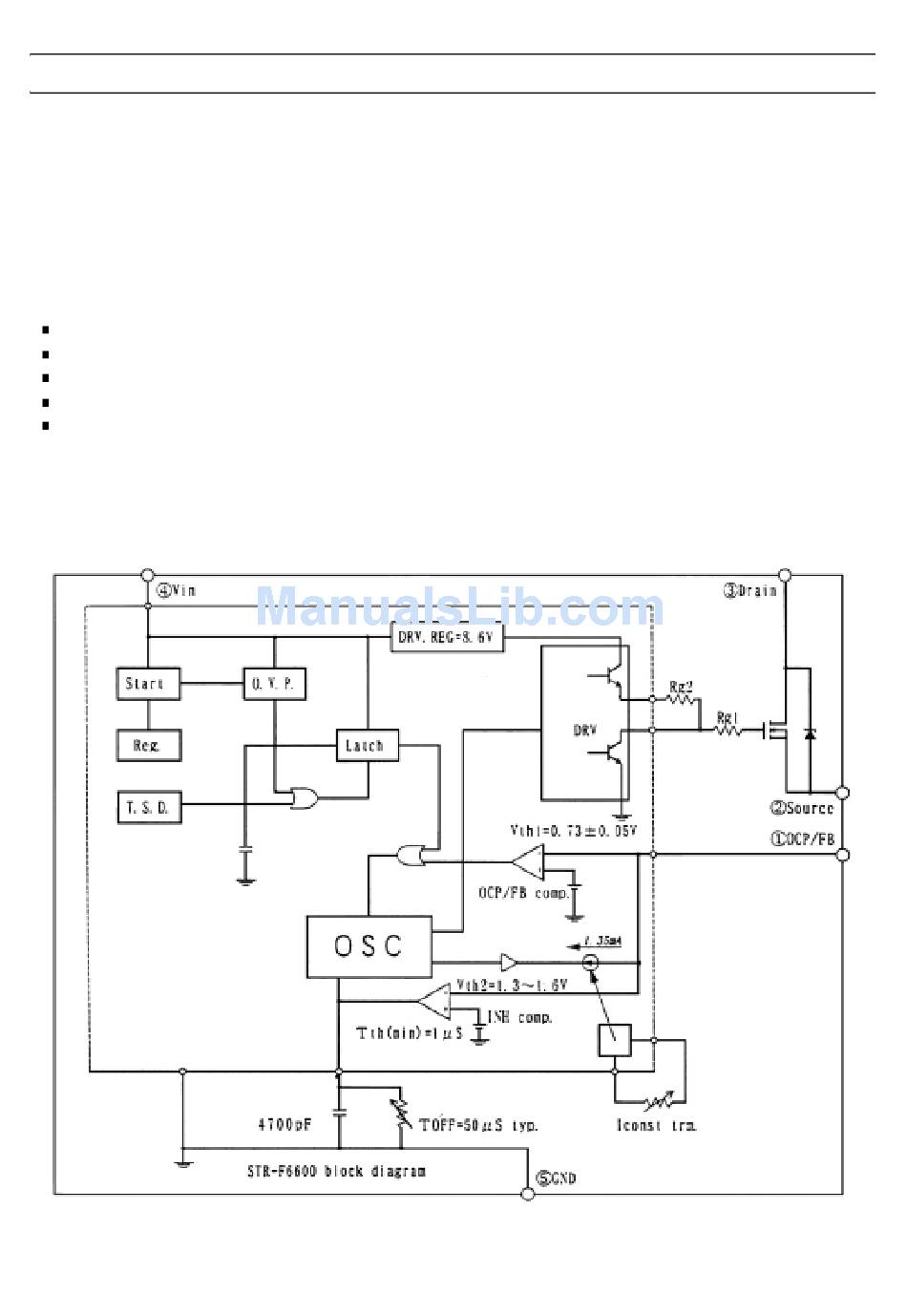

4.10.3 BLOCK DIAGRAM
