Page 1: Instruction Manual

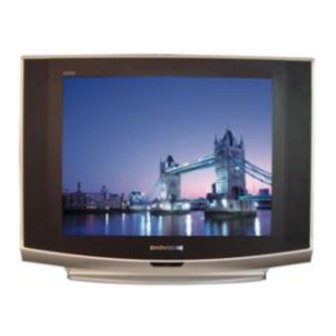

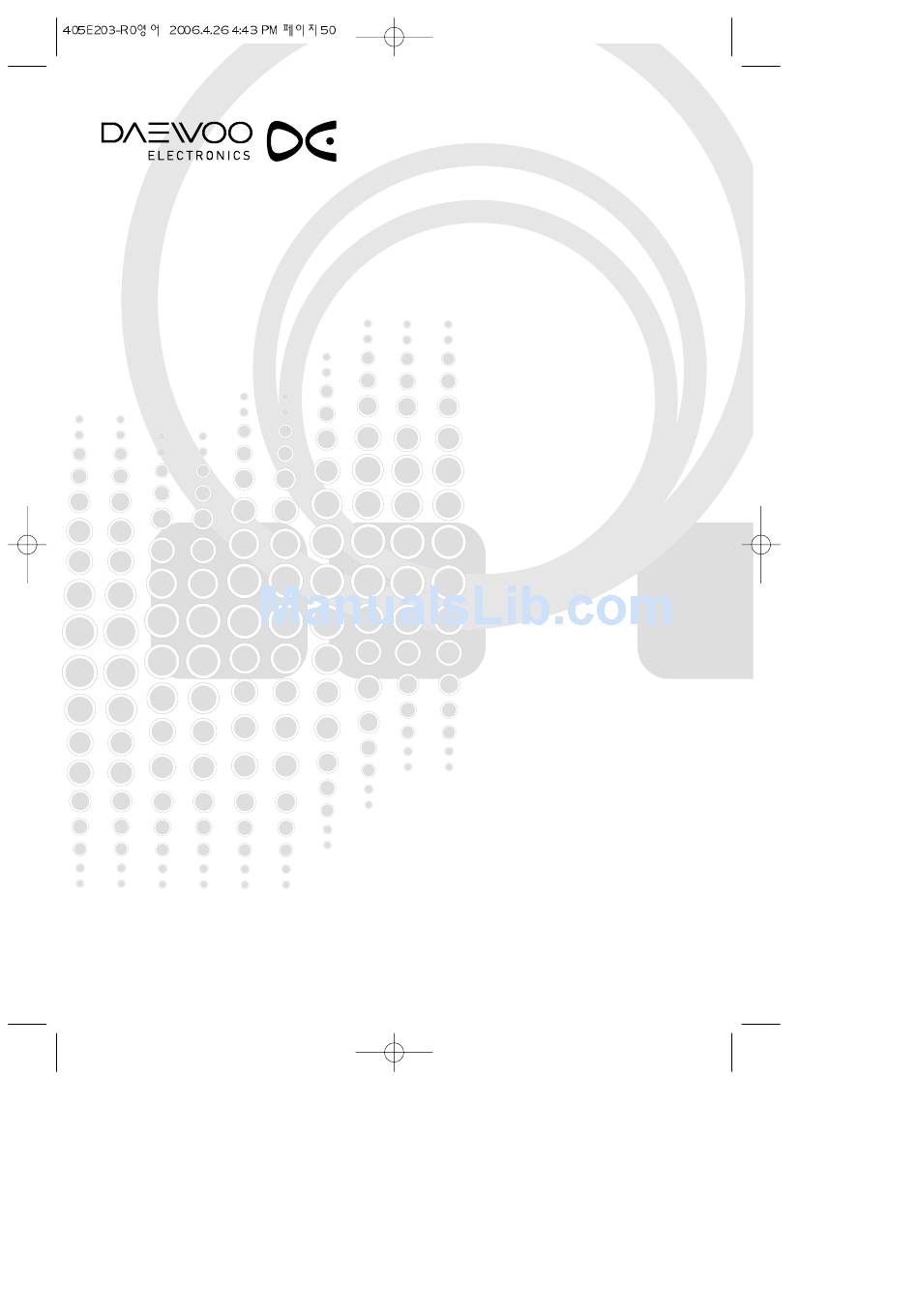

INSTRUCTION MANUAL COLOR TELEVISION DTH-2930SSFV P/N : 48586405E203-R0... - Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Table of Contents Overview of Your Equipment Your TV's Front Panel / Side Control / AV Panel Your TV's Back Panel Your Remote Control Installing your remote control batteries Notes Connecting an Antenna or Cable to Your TV Connecting an Antenna Antennas with two sets of leads Connecting a Cable System Connecting Other Pieces of Equipment... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION EQUIPMENT AND RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE TV RECEIVER. Read all of these instructions. Slots and openings in the cabinet and the back or bottom are provided for ventilation and to Save these instructions for later use. - Page 5 13 An outside antenna system should not be locat- 18 When replacement parts are required, be sure ed in the vicinity of overhead power lines or the service technician has used replacement other electric light or power circuits, or where parts specified by the manufacturer that have it can fall into such power lines or circuits.
-
Page 6: Overview Of Your Equipment
Overview of Your Equipment Your TV comes with a remote control. The section below summarizes the buttons, con- trols, and terminals that you will use with your TV. Your TV's Front Panel / Side Control / AV Panel ON/OFF Use this button to turn your TV’s Main Power on or off. STAND-BY Indicator This Lamp is the STAND-BY Indicator. -
Page 7: Your Tv's Back Panel
Your TV's Back Panel VIDEO AUDIO L (MONO) AUDIO R MONITOR AV1 IN 1 Antenna terminal(ANT) Use this terminal to attach an antenna or cable system to your TV. 2 VIDEO IN These terminals allow the TV to receive video signals from another A/V components. * S-VIDEO jack is used to receive the separated video signal, such as Y/C signals from the S-VHS VCR. -
Page 8: Your Remote Control
Your Remote Control POWER Use this button to turn your TV on or off. MUTE Use to turn the TV’s sound on and off. WCHV Use these buttons to change channels on your TV, or select items in the menu system. CVOLB Use these buttons to change your TV's vol- ume, to activate selections in the menu sys-... -
Page 9: Installing Your Remote Control Batteries
Installing your remote control batteries 1 Open the battery compartment on the back of the remote control. 2 Install two AAA-size batteries (not included) as shown. Make sure the “+” and “-” ter- minals are oriented correctly. 3 Replace the cover. Notes - Do not mix different types of batteries together or old batteries with fresh ones. -
Page 10: Connecting An Antenna Or Cable To Your Tv
Connecting an Antenna or Cable to Your TV Your TV will provide you with the best performance if you connect it to an external antenna or cable system. Follow the directions below make this connection. Please note that you will normally only have to make one of the connections shown below, not all of them. -
Page 11: Antennas With Two Sets Of Leads
Antennas with two sets of leads You might have two sets of leads from your antenna system, especially if you have one antenna for VHF signals and one antenna for UHF signals. If your antenna system has both a coaxial lead and twin 300-ohm leads, you must obtain a combiner (available at your local electronics store). -
Page 12: Connecting Other Pieces Of Equipment
If your cable system requires you to use a converter box for all channels, connect the incoming cable to the IN terminal on the converter box. Connect another cable between the OUT terminal on the converter box and the antenna terminal on the TV. You will need to keep your TV tuned to channel 3 or 4 and change channels using the converter box. -
Page 13: Operating Your Tv
Operating Your TV Once you have connected your TV to an antenna or cable system, plugged the TV in, and put batteries in the remote, you are ready to use the TV. The first thing you should do is to program your TV so it memorizes all of available channels. -
Page 14: Changing Channels
If you want to stop the “Memorize Ch.” process, press the MENU button to return to Set-up menu. Wait 15 seconds, or press DISPLAY button or MENU button to return to normal TV viewing. Your TV's channel memory will not be affected by a power outage. -
Page 15: Changing The Tv's Channel Memory
Changing the TV's Channel Memory Your TV's memory determines the channels that are available using the WCHV buttons. You can add channels to this memory or remove them from memory. If a channel is removed from memory, you can tune to it with the number buttons, but you cannot tune to it with the WCHV buttons. -
Page 16: Displaying The Current Channel
Displaying the Current Channel To quickly see the current channel number and status, press DISPLAY button on the remote control. The current channel number and status will be displayed. Ch Labels This feature allows you to enter a 4 letter channel identifier of your choice that will appear over the channel number display. -
Page 17: Changing The Tv's Input
NOTE Each time you press the WCHV buttons, the displayed character will change in the fol- lowing order. Changing the TV's Input Normally, your TV displays the signal coming through the antenna terminal. However, if you’ve connected another component to your TV(such as a VCR & DVD) using the Video/Audio input, you will want to be able to view the signal from the component. -
Page 18: Selecting The System
Selecting the system User can select the AUTO / NTSC-M / PAL-M / PAL-N color system modes. 1 With the TV on, press the MENU button. Then use CVOLB buttons until "Set-up" menu will be displayed. 2 Use the WCHV buttons to select "System" item. 3 WPress the CVOLB buttons to select ‘AUTO, NTSC-M, PAL-M’... -
Page 19: Returning To The Factory Settings
Returning to the factory settings If you would like to return to the original video settings, as they were calibrated at the factory, follow these steps : With the TV on, press the MENU button. Then “Video” menu will appear. Select the “Settings”... -
Page 20: Adjusting The Sound
Adjusting the Sound Selecting Stereo/SAP The MTS(Multi-channel TV Sound) provides for an extra sound channel. So MTS feature allows you to improve your TV viewing with high fidelity stereo sound. SAP(Second Audio Program) used to transmit a second language of other audio information. -
Page 21: Listening To Second Language
Listening to second Language Follow steps 1~2 in “Listening to Stereo Sound” above. Press the CVOLB buttons repeatedly until: “SAP” is displayed. To return to normal TV viewing, press DISPLAY button or MENU button, or wait 15 seconds. If a SAP broadcast is received, you will hear only the second language from the speaker. -
Page 22: Adjusting Of Equalizer Settings
Adjusting of equalizer settings With the TV turned on, press the MENU button. Then press the CVOLB buttons until “Audio” menu will be displayed. Use the WCHV buttons to select the “Equalizer” item. Use the CVOLB buttons to enter the “Equalizer” process. -
Page 23: Selecting The Surround Effect Mode
Selecting the Surround Effect Mode With the TV turned on, press the MENU button. Then press the CVOLB buttons until “Audio” menu will be displayed. Use the WCHV buttons to select “Effect Surr.” item. Use the CVOLB buttons to select “On” or “Off”. To return to normal TV viewing, press DISPLAY button or MENU button, or wait 15 seconds. -
Page 24: Using Timer Functions
Using Timer Functions Your TV has a built in-clock, and you can set the TV to turn on and off at times that you select. You can also set your TV to turn off after counting down a certain amount of time. Setting the Clock With the TV turned on, press the MENU button. -
Page 25: Setting The Off Time
Setting the Off Time If you enter a time in the “Off Time” setting, your TV will automatically turn off at that time. Follow these instructions to set the “Off Time”. With the TV turned on, press the MENU button. Then press the CVOLB buttons until “Time”... -
Page 26: Setting The Sleep Timer
Setting the Sleep Timer The sleep timer allows you to set an amount of time from 20 minutes to 120 minutes. TV will count down the amount of time you set, then turn itself off. To set the sleep timer: With the TV turned on, press the MENU button. -
Page 27: Using The Special Features
Using the Special Features This section contains descriptions of the more advanced features of your TV. Changing the Language of the On-screen Menus You can choose to display the on-screen menus in English, Spanish, French, Portugues. To change the on-screen language: With the TV on, press the MENU button. -
Page 28: Captioning
Captioning Many TV shows contains “Closed Caption”. These captions are hidden words that can be displayed on your TV screen. There are two types of these words : “captions” usually follow the action on-screen, providing a written version of the dia- logue, narration, and sound effects ;... -
Page 29: Cc On Mute
CC on Mute With this function, user can select the caption dis- play instead of sound mute when using the Mute button by necessity. With the TV turned on, press the MENU button. Then press the CVOLB buttons until “Special” menu will be displayed. -
Page 30: Blue Back
Blue Back User can select the Blue Back Screen in RF input. If your select the Option On, You will see the Blue Color Screen in case that your TV catches no RF signal. With the TV turned on, press the MENU button. The press the CVOLB button until “Special”... -
Page 31: Troubleshooting
Your Daewoo television is designed to give you trouble-free performance for many years. If you have a problem with your TV, try the solutions listed below. If the suggestions listed below do not solve your problem, contact your Daewoo dealer or an autho- rized Daewoo service center. - Page 32 M E M O...
