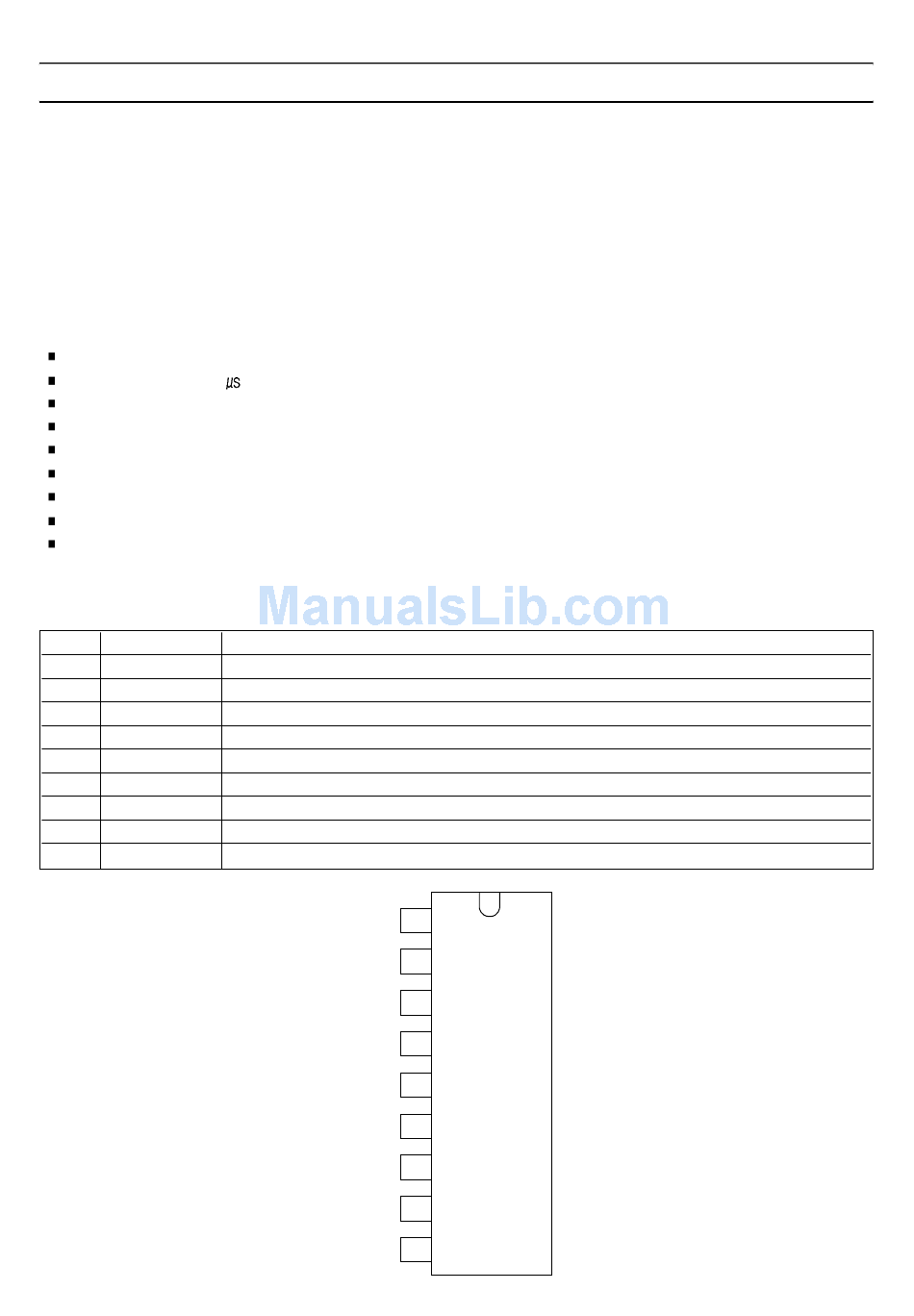

4.8 TDA6107Q

The TDA6107Q includes three video output amplifiers in one plastic DIL-Bent-SIL 9-pin medium
power package, using high voltage DMOS technology, and is intended to drive the three
cathodes of a colour CRT directly. To obtain maximum performance, the amplifier should be
used with black-current control.
Features
Typical bandwidth of 5.5 MHz for an output signal of 60 Vpp
High slew rate of 900V/
No external components required
Very simple application
Single supply voltage of 200V
Internal reference voltage of 2.5 V
Fixed gain of 50.
Black-current stabilisation (BCS) circuit
Thermal protection
Pin description
Pin Symbol
1 Vi(1)
2 Vi(2)
3 Vi(3)
4 GND
5 Iom
6 VDD
7 VOC(3)
8 VOC(2)
9 VOC(1)
Description
inverting input 1
inverting input 2
inverting input 3
ground (fin)
black current measurement output
supply voltage
cathode output 3
cathode output 2
cathode output 1
Vi(1) 1
V 2
i(2)
V 3
i(3)
GND 4
I 5
om
V 6
DD
Voc 7
(3)
Voc 8
(2)
Voc 9
(1)
TDA6107Q
-39-
