Daewoo DTH-29U3 Service Manual page 37

CP830F Service Manual

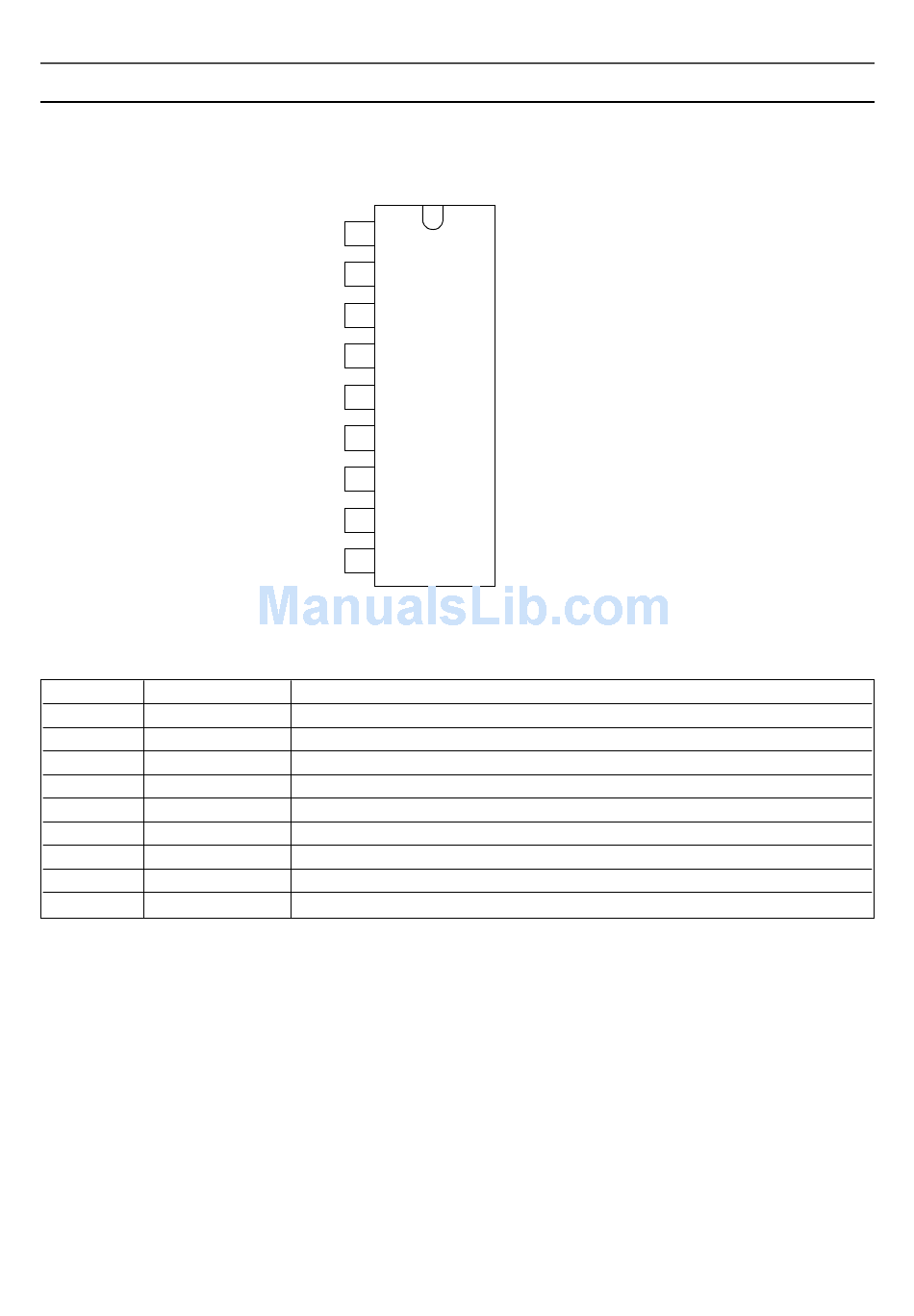

Pinning
Pin Symbol
1 Vi(pos)
2 Vi(neg)
3 Vp
4 VOB
5 GND
6 Vflb
7 VOA
8 VO(guard)
9 VM
Vi(pos) 1
Vi(neg) 2
Vp 3
Vc 4
B
TDA8357J
GND 5
Vflb 6
Vc 7
A
Vo(guard) 8
V 9
M
Description
input voltage (positive)
input voltage (negative)
supply voltage
output voltage B
ground
flyback supply voltage
output voltage A
guard output voltage
input measuring resistor
-36-
