Casters and Leveling

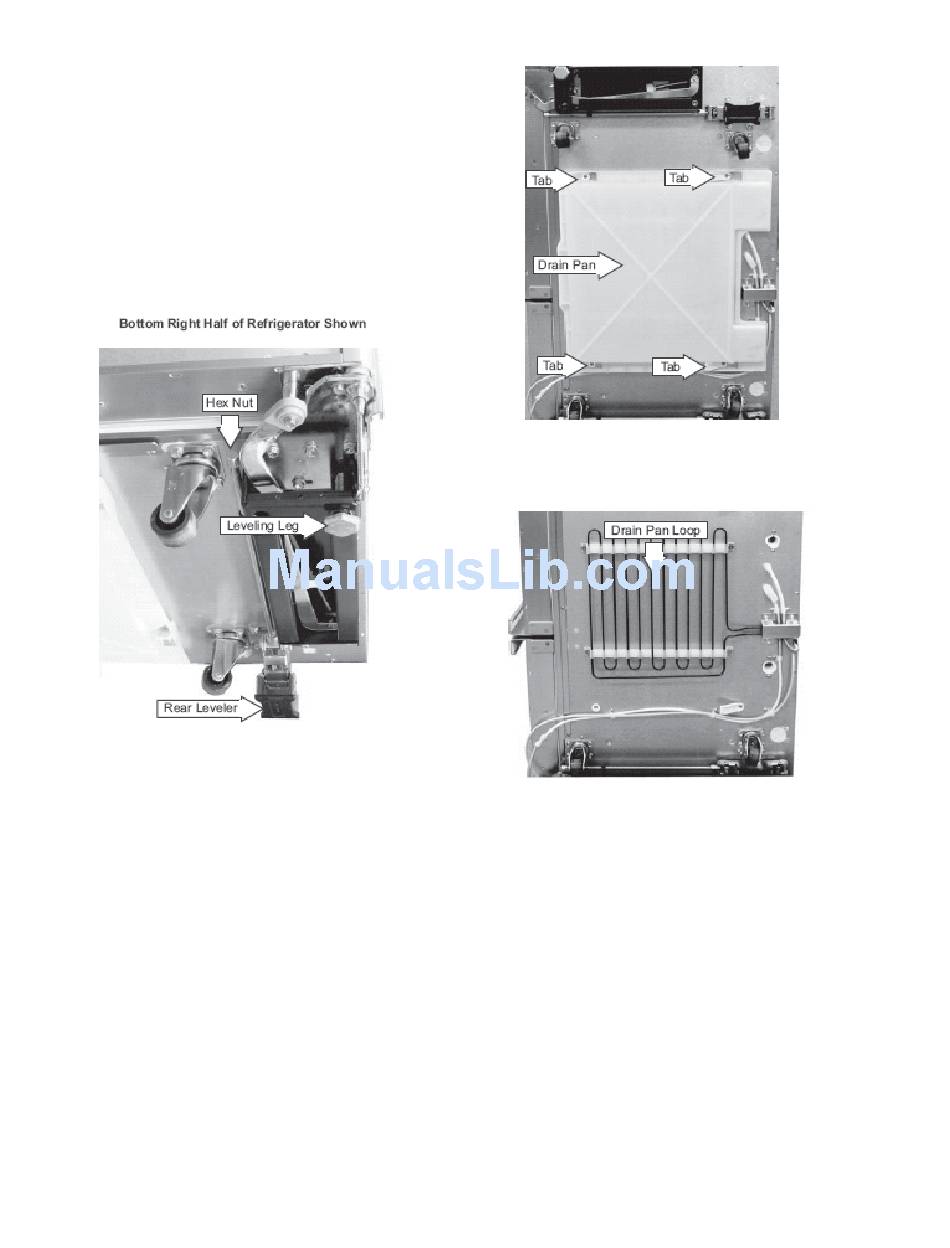

Leveling is provided by 2 adjustable rear levelers and 2
front leveling legs. The unit has 4 fi xed casters that are
used to position the refrigerator. When adjusting the rear
levelers, turn the 7/16-in. hex nut, located above the front
casters, clockwise to lower, or counterclockwise to raise.
When adjusting the front legs, use an open-end wrench
and turn the front legs clockwise to lower, or counter-
clockwise to raise.
Note: The rear levelers and the 4 casters are each attached
to the refrigerator with four 10-mm screws. To access the
screws, raise or tilt the refrigerator.
Warning: Use the appropriate safety equipment and
lifting techniques. Two persons may be required.
Drain Pan
The drain pan can be removed for cleaning
purposes.
Drain pan removal:
1. Remove the toe plate.
2. To remove the drain pan, grasp the center of the drain
pan and pull outward.
3. To install the drain pan, slide it back into position so
the rear and front mounting tabs engage.
4. Firmly push the drain pan into position.
5995432258
The defrost water in the pan is evaporated by use of a
submersible serpentine coil, which is part of the sealed
system. The tubing is copper coated with black paint.
