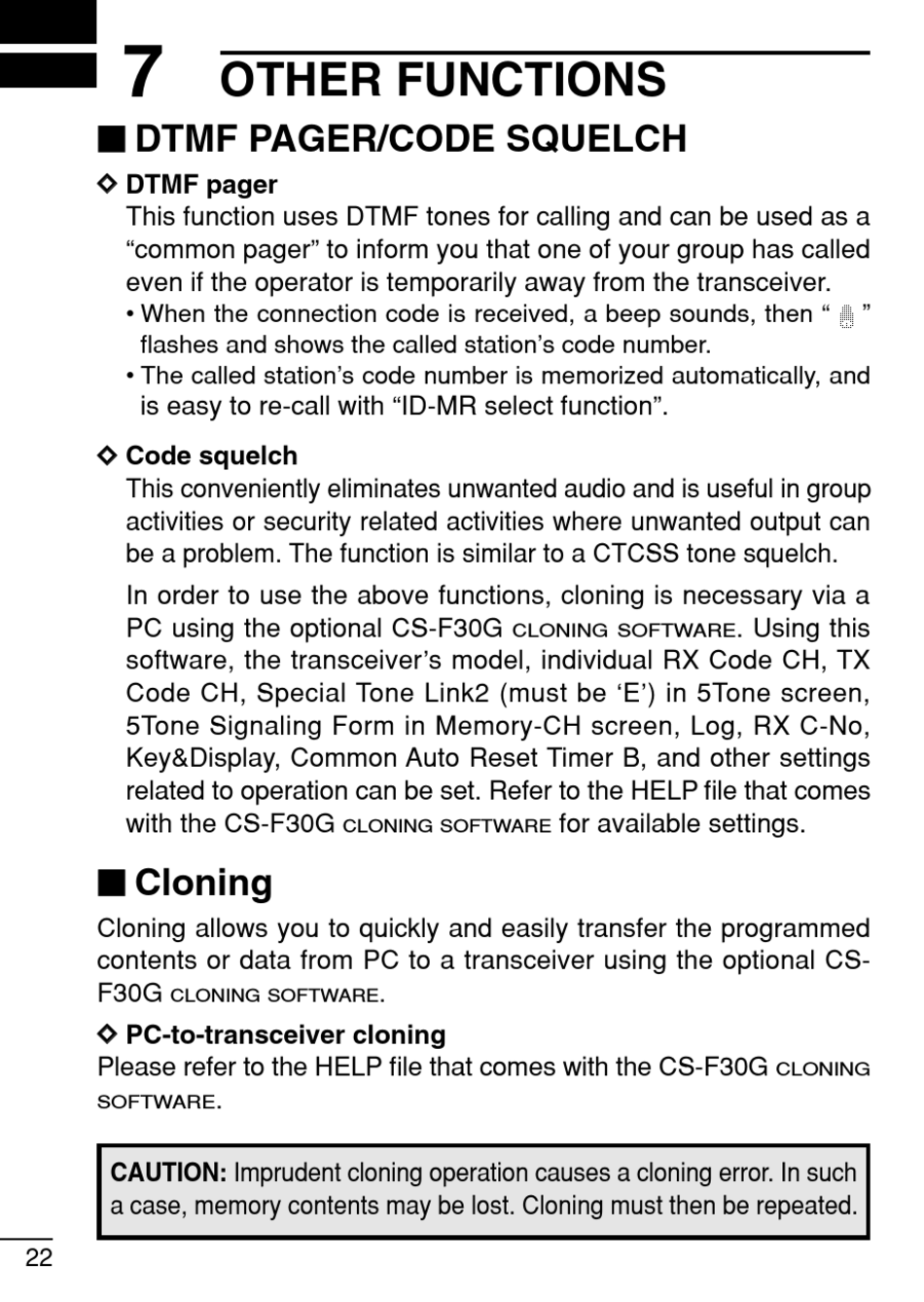

Other Functions; Dtmf Pager/Code Squelch; Cloning - Icom iC-F30GT Instruction Manual

7

' ' DTMF PAGER/CODE SQUELCH

D D DTMF pager
This function uses DTMF tones for calling and can be used as a
"common pager" to inform you that one of your group has called
even if the operator is temporarily away from the transceiver.
• When the connection code is received, a beep sounds, then "
flashes and shows the called station's code number.
• The called station's code number is memorized automatically, and
is easy to re-call with "ID-MR select function".
D D Code squelch
This conveniently eliminates unwanted audio and is useful in group
activities or security related activities where unwanted output can
be a problem. The function is similar to a CTCSS tone squelch.
In order to use the above functions, cloning is necessary via a
PC using the optional CS-F30G
software, the transceiver's model, individual RX Code CH, TX
Code CH, Special Tone Link2 (must be 'E') in 5Tone screen,
5Tone Signaling Form in Memory-CH screen, Log, RX C-No,
Key&Display, Common Auto Reset Timer B, and other settings
related to operation can be set. Refer to the HELP file that comes
with the CS-F30G

' ' Cloning

Cloning allows you to quickly and easily transfer the programmed
contents or data from PC to a transceiver using the optional CS-
F30G
CLONING SOFTWARE
D D PC-to-transceiver cloning
Please refer to the HELP file that comes with the CS-F30G
SOFTWARE
CAUTION: Imprudent cloning operation causes a cloning error. In such
a case, memory contents may be lost. Cloning must then be repeated.
22

OTHER FUNCTIONS

CLONING SOFTWARE
.
.
CLONING SOFTWARE
for available settings.
"
. Using this
CLONING
